TRS T 24VDC 1CO M3

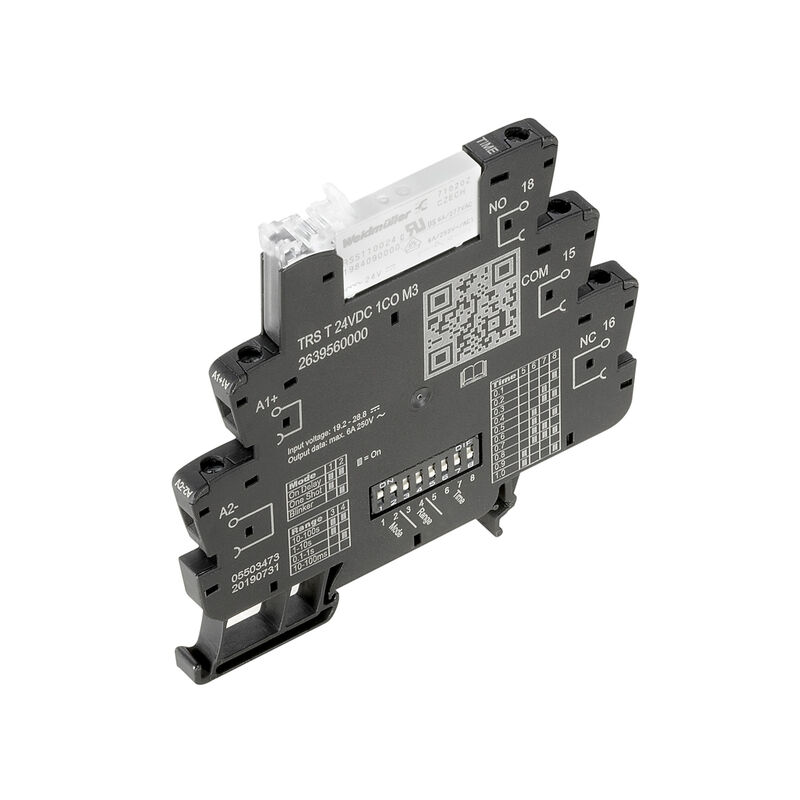

Obrázek výrobku
TRS T 24VDC 1CO M3
Graph
Elektrická životnost230 V AC resistive load
230 V AC odporová zátěž
TRS T 24VDC 1CO M3
Schéma připojení
TRS T 24VDC 1CO M3
Dimensional drawing
TRS T 24VDC 1CO M3
Graph
TRS T 24VDC 1CO M3
Graph
Časové funkce
TRS T 24VDC 1CO M3
Kódy typů
Různé

TRS T 24VDC 1CO M3

TERMSERIES, Multifunction timing relay, Number of contacts: 1, CO contact, AgSnO, Rated control voltage: 24 V DC ±20 %, Continuous current: 6 A, Screw connection

Art.-Nr. 2639560000
Im Konfigurator öffnen
Datenblatt herunterladen Engineering Support Produkt Downloads
Zubehör 12 Einzelteile 2 Verwandte Artikel 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL Control side Load side Allmänna uppgifter Insulation coordination Further details of approvals / standards Connection data Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197

General ordering data

Version
TERMSERIES, Multifunction timing relay, Number of contacts: 1, CO contact, AgSnO, Rated control voltage: 24 V DC ±20 %, Continuous current: 6 A, Screw connection
Order No.
2639560000
Type
TRS T 24VDC 1CO M3
GTIN (EAN)
4050118715569
Qty.
10 Styk

Dimensions and weights

Depth
87,8 mm
Depth (inches)
3,457 inch
Height
89,6 mm
Height (inches)
3,528 inch
Width
6,4 mm
Width (inches)
0,252 inch
Peso neto
33,7 g

Temperatures

Storage temperature
-40 °C...85 °C
Ambient temperature
-20 °C…60 °C
Humidity
5-95% relative humidity, Tu = 40°C, without condensation

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
9e2cbc49-76d9-4611-b8ec-5b4f549a0aa9

Rated data UL

Ambient temperature (operational), max.
60 °C
Connection cross-section AWG, min.
AWG 26
Connection cross-section AWG, max.
AWG 14
Typ av ledare
massiv kopparledare
flertrådig kopparledare
Tightening torque, max.
0,4 Nm
Pollution severity level
2

Control side

Rated control voltage
24 V DC ±20 %
Rated current DC
11.5 mA
Power rating
280 mW
Status indicator
Duo-LED orange: reläutgång till
Grön duo-LED tänd: matarspänning på
Grön duo-LED blinkar: felaktig konfigurering, ingen funktion
Skyddskoppling
Frihjulsdiod
Coil voltage of the replacement relay deviating from the rated control voltage
Nej
Coil voltage of the replacement relay
24 V DC
Zeitbereiche
0.01 s - 0.1 s
0.1 s - 1 s
1 s - 10 s
10 s - 100 s
Einstellgenauigkeit
5 %
max. Rückstellzeit bei Spannungunterbrechung
50 ms
Basic accuracy
≤ 5 % (vom Skalenendwert)
Min. Impulsdauer
50 ms
Wiederholgenauigkeit
± 1 %

Load side

Rated switching voltage
250 V AC
Continuous current
6 A
Max. switching frequency at rated load
0,1 Hz
Max. switching voltage, AC
250 V
Max. switching voltage, DC
250 V
Min. switching power
1 mA @ 24 V
10 mA @ 12 V
100 mA @ 5 V
Inrush current
20 A / 20 ms
Obciążalność przy napięciu przemiennym (obciążenie rezystancyjne), maks.
1500 VA
DC switching capacity (resistive), max.
144 W @ 24 V
Kontakttyp
1 Växlandekontakt (AgSnO)
Mechanical service life
5 x 106 Schaltungen

Allmänna uppgifter

Operating altitude
≤ 2000 m
över havsytan
Suitable for front mounting
No
Mounting rail
TS 35
Test button available
No
Mechanical switch position indicator
No
Colour
black
UL 94 flammability rating
V-0

Insulation coordination

Rated voltage
250 V
Pollution severity
2
Surge voltage category
III
Clearance and creepage distances for control side - load side
≥ 6 mm
Dielectric strength for control side - load side
4 kVeff / 1 Min.
Spänningstålighet för öppna kontakter
1 kVeff / 1 min
Dielectric strength to mounting rail
4 kVeff / 1 Min.
Impulse withstand voltage
6 kV (1,2/50 µs)
Protection degree
IP20

Further details of approvals / standards

Certificate No. (DNV)
TAA00001E5
Certificate no. (cULus)
E141197

Connection data

Wire connection method
Screw connection
Stripping length, rated connection
8 mm
Tightening torque, max.
0,4 Nm
Anslutningsområde, märkarea
1,5 mm²
Диапазон зажима, мин.
0,14 mm²
Clamping range, max.
2,5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 14
Wire cross-section, solid, min.
0,14 mm²
Wire cross-section, solid, max.
2,5 mm²
Wire cross-section, solid, min. (AWG)
AWG 26
Wire cross-section, solid, max. (AWG)
AWG 14
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire connection cross section, finely stranded, max.
2,5 mm²
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, finely stranded, max. (AWG)
AWG 14
Sección del conductor, flexible con terminales tubulares DIN 46228/4, mín.
0,14 mm²
Sección del conductor, flexible con terminales tubulares DIN 46228/4, máx.
1,5 mm²
Sección de conexión del conductor, flexible, term. tub. (DIN 46228-1), min.
0,14 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
2,5 mm²
Wire connection cross section, finely stranded, two clampable wires, min.
0,5 mm²
vezetékkeresztmetszet, finomsodratú, két rögzíthető vezeték, max.
1 mm²
Кабельный наконечник для обжима двух проводов, мин.
0,5 mm²
Tvilling-ändhylsa, max.
1 mm²
Blade size
Gr. PH0

Product images

Classifications

ETIM 8.0
EC001439
ETIM 9.0
EC001439
ETIM 10.0
EC001439
ECLASS 14.0
27-37-16-05
ECLASS 15.0
27-37-16-05
