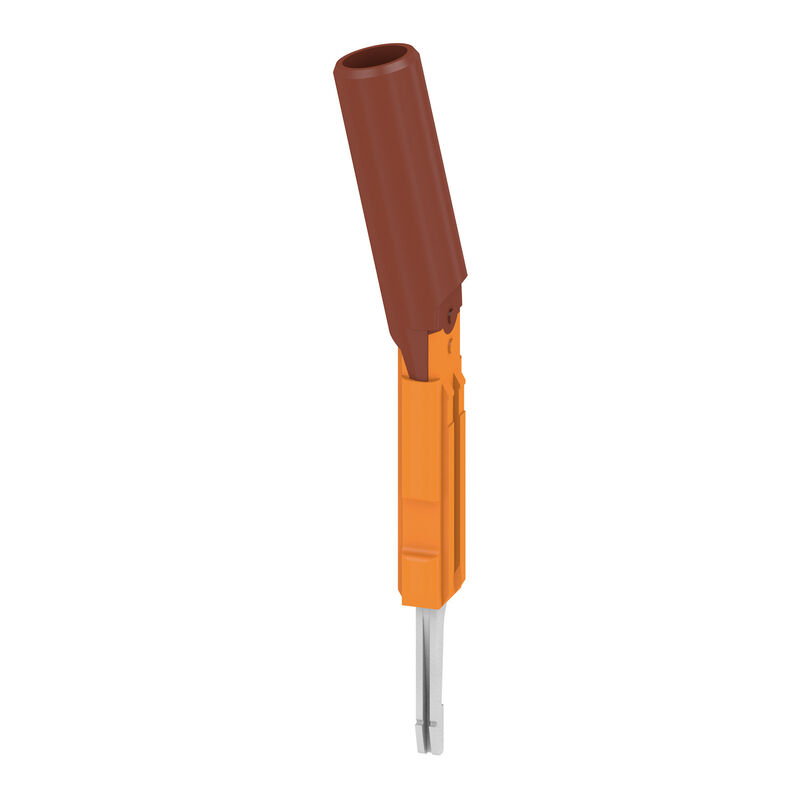

TS TTB 6 BR
TS TTB 6 BR
TS TTB 6 BR
TS TTB 6 BR

TS TTB 6 BR

Socket (terminal), Plug-in depth: 11.5 mm, Depth: 51.3 mm

Item No. 2715540000
Download data sheet Engineering Support Product Downloads
Is accessory of 18 Related products 50
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Additional technical data Dimensions General Classifications

Approvals

ROHS
Conform

General ordering data

Version
Socket (terminal), Plug-in depth: 11.5 mm, Depth: 51.3 mm
Código
2715540000
Type
TS TTB 6 BR
GTIN (EAN)
4050118769609
Qty.
48 items

Dimensions and weights

Depth
51,3 mm
Depth (inches)
2,02 inch
Magasság
9,4 mm
Height (inches)
0,37 inch
Width
6,3 mm
Width (inches)
0,248 inch
Net weight
1,1 g

Temperatures

Storage temperature
-25 °C...55 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS 준수 상태
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Materiał podstawowy
Wemid
Colour
brown
UL 94 flammability rating
V-0

Additional technical data

Monteringstyp
Plug
Вид крепления
Plugged
Проверенное на взрывозащищенность исполнение
No

Dimensions

Plug-in depth
11,5 mm

General

Operating temperature range, max.
130 °C

Classifications

ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 14.0
27-25-03-90
ECLASS 15.0
27-25-03-90
