WDK 2.5/TR-DU-PE/O TNHE
Product image
WDK 2.5/TR-DU-PE/O TNHE

WDK 2.5/TR-DU-PE/O TNHE

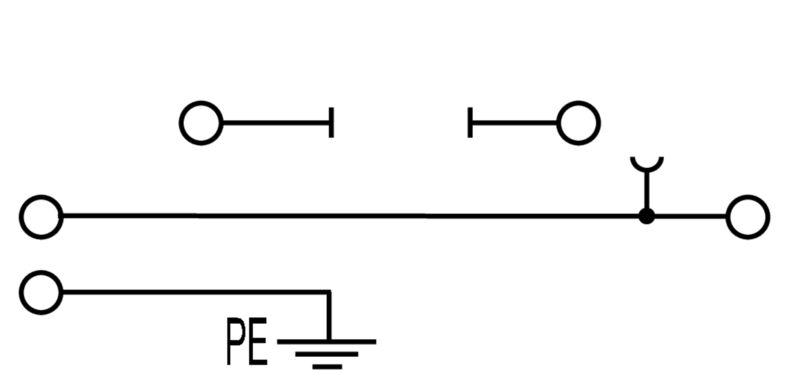

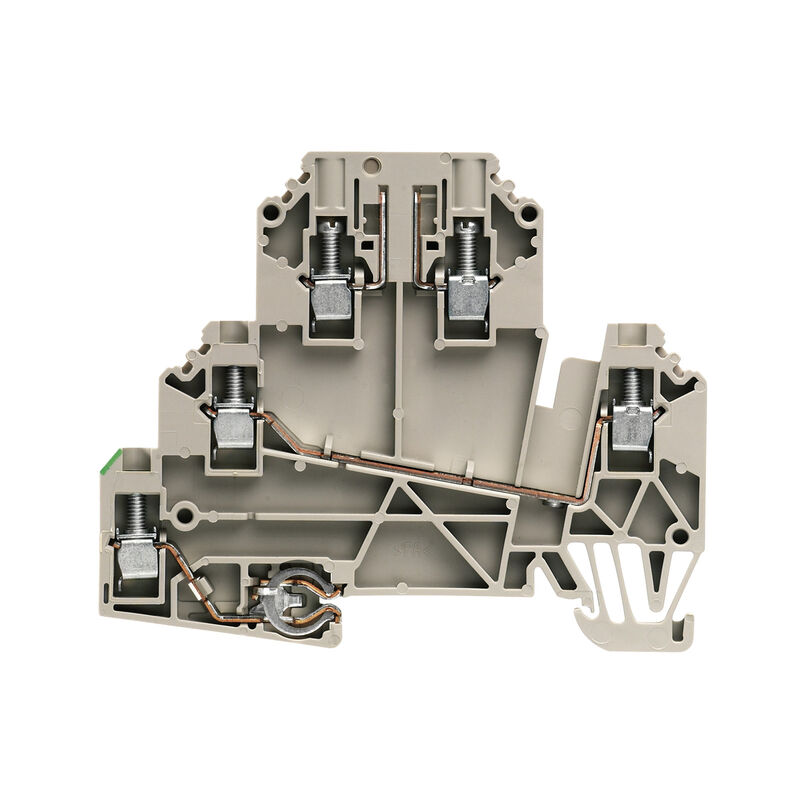

Test-disconnect terminal, Screw connection, dark beige, 2.5 mm², 24 A, 500 V, Number of connections: 5, Number of levels: 3

Item No. 1833640000
Open in Configurator
Download data sheet Engineering Support Product Downloads
Accessories 18 Related products 162
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (additional connection) Klämbara ledare (Märkanslutning) CSA rating data General Rating data UL rating data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E60693

General ordering data

Version
Test-disconnect terminal, Screw connection, dark beige, 2.5 mm², 24 A, 500 V, Number of connections: 5, Number of levels: 3
Order No.
1833640000
Type
WDK 2.5/TR-DU-PE/O TNHE
GTIN (EAN)
4032248991129
Qty.
50 items

Dimensions and weights

Depth
66 mm
Depth (inches)
2.598 inch
Depth including DIN rail
67 mm
Height
80.5 mm
Height (inches)
3.169 inch
Width
5.1 mm
Width (inches)
0.201 inch
Masa netto
17.36 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-50 °C…75 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Material básico
Wemid
Color
dark beige
Grado inflamabilidad según UL 94
V-0

System specifications

Versión
Screw connection
With PE connection
One end without connector
엔드 커버 플레이트 필요
Yes
Liczba potencjałów
3
Number of levels
3
Number of clamping points per level
2
Número de potenciales por piso
1
Pisos internos puenteados
No
Conexión PE
Yes
Mounting rail
TS 35
N-function
No
Funkcja PE
Yes
PEN funkció
No

Additional technical data

Lados abiertos
right
Type of mounting
Snap-on
Versión a prueba de explosivos
No

Conductors for clamping (additional connection)

Connection type, additional connection
Screw connection

Klämbara ledare (Märkanslutning)

Blade size
0.6 x 3.5 mm
Clamping range, max.
4 mm²
Clamping range, min.
0.5 mm²
Clamping screw
M 3
Connection cross-section, stranded, max.
4 mm²
Connection cross-section, stranded, min.
1.5 mm²
Connection direction
on side
Gauge to IEC 60947-1
A2
Number of connections
5
Průřez připojení vodiče, pevné jádro, min.
0.5 mm²
Stripping length
8 mm
Tightening torque, max.
0.6 Nm
Tightening torque, min.
0.5 Nm
Type of connection
Screw connection
Type of connection 2
Screw connection
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 30
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.5 mm²
Wire connection cross-section, solid core, max.
4 mm²

CSA rating data

Leiterquerschnitt min (CSA)
30 AWG
Strom Gr C (CSA)
20 A
Voltage size C (CSA)
300 V
Wire cross section max. (CSA)
12 AWG
Zertifikat-Nr. (CSA)
200039-1057876

General

Mounting rail
TS 35
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 30

Rating data

Névleges keresztmetszet
2.5 mm²
정격 전압
500 V
Névleges DC feszültség
500 V
Courant nominal
24 A
Corriente en conductor máximo
24 A
Volume resistance according to IEC 60947-7-x
1.33 mΩ
Znamionowe napięcie udarowe
8 kV
Teljesítményveszteség az IEC 60947-7-x szerint
0.77 W
Pollution severity
3

UL rating data

Núm. de certificación (UR)
E60693
Sección del conductor Cableado de campo máx. (UR)
12 AWG
Sección del conductor Cableado de campo mín. (UR)
30 AWG
Sección del conductor Cableado de fábrica máx. (UR)
12 AWG
Sección del conductor Cableado de fábrica mín. (UR)
30 AWG
Strom Gr C (UR)
20 A
Tensión Gr C (UR)
300 V

Classifications

ETIM 8.0
EC000902
ETIM 9.0
EC000902
ETIM 10.0
EC000902
ECLASS 14.0
27-25-01-09
ECLASS 15.0
27-25-01-09
