WDU 4 BL

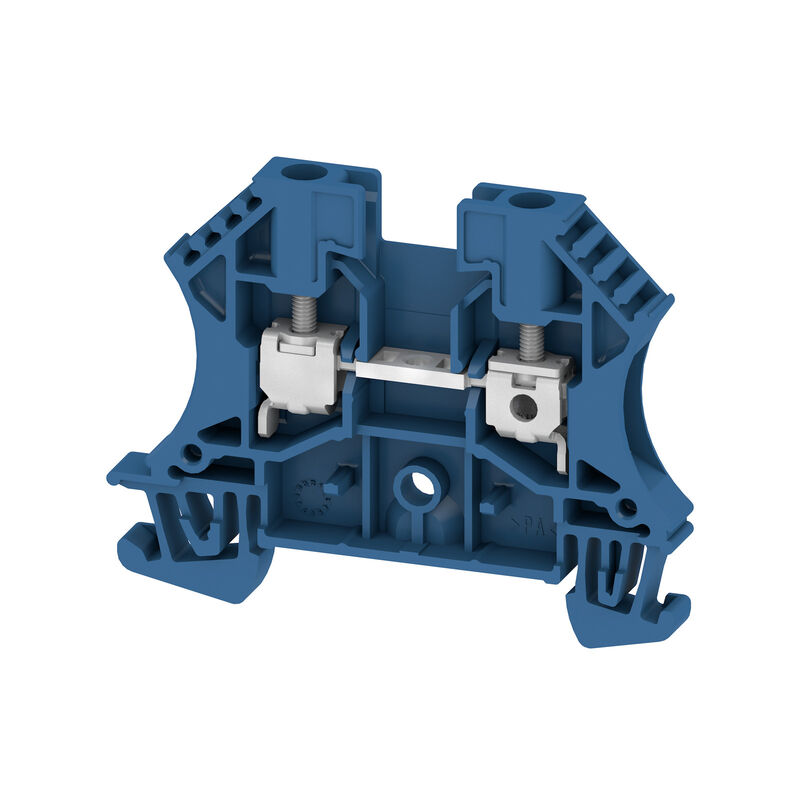

Product image
WDU 4 BL

WDU 4 BL

Feed-through terminal block, Screw connection, blue, 4 mm², 32 A, 800 V, Number of connections: 2

Item No. 1020180000
Open in Configurator
Download data sheet Engineering Support Product Downloads
Accessories 68 Related products 1077
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications 2 clampable conductors (H05V/H07V) with equal cross-section (rated connection) Additional technical data Conductors for clamping (additional connection) 클램프용 컨덕터(정격 결선) dane znamionowe wg CSA General Rating data dane znamionowe wg UL Classifications

Approvals

Homologaciones
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319217/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319244/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319246/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319249/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319250/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319260/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319262/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319227/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319231/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319213/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319235/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319240/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319242/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E60693
N° certificato (cURusEX)
E184763

General ordering data

Ausfuehrung
Feed-through terminal block, Screw connection, blue, 4 mm², 32 A, 800 V, Number of connections: 2
Código
1020180000
Típus
WDU 4 BL
GTIN (EAN)
4008190185237
Qty.
100 items

Dimensions and weights

Depth
46,5 mm
Depth (inches)
1,831 inch
Depth including DIN rail
47 mm
Höhe
60 mm
Height (inches)
2,362 inch
Width
6,1 mm
Width (inches)
0,24 inch
순중량
9,42 g

Temperatures

Tárolási hőmérséklet
-25 °C...55 °C
Température ambiante
-5 °C…40 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS megfelelőségi állapot
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0,077 kg CO2 eq.

Material data

Basic material
Wemid
Colour
blue
UL 94 flammability rating
V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)
DEMKO14ATEX1338U
Certificate No. (IECEX)
IECEXULD14.0005U
Max. feszültség (ATEX)
690 V
Current (ATEX)
32 A
Wire cross section max. (ATEX)
4 mm²
Max. voltage (IECEX)
690 V
Current (IECEX)
32 A
Wire cross section max. (IECEX)
4 mm²
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D

System specifications

Verze
Screw connection
for plug-in cross-connector
for screwable cross-connection
One end without connector
Nutná koncová deska
Yes
Количество независимых точек подключения
1
Nombre d'étages
1
Number of clamping points per level
2
Počet pólů na řadu
1
Levels cross-connected internally
No
PE connection
No
Carril de montaje
TS 35
Función N
Yes
PE 기능
No
Funkce PEN
No

2 clampable conductors (H05V/H07V) with equal cross-section (rated connection)

Ledardiameter, fintrådig, 2 klämbara ledare, max.
1,5 mm²
Sezione di collegamento cavo flessibile con terminale DIN 46228/1, 2 conduttori innestabili, max.
1,5 mm²
Wire connection cross section, finely stranded, two clampable wires, min.
0,5 mm²
Сечение подключаемого провода, гибкого, с кабельным наконечником, DIN 46228/1, 2 зажимаемых провода, мин.
0,5 mm²

Additional technical data

Number of similar terminals
1
Open sides
right
Typ montáže
Snap-on
Verze testovaná ve výbušném prostředí
Yes

Conductors for clamping (additional connection)

Connection type, additional connection
Screw connection

클램프용 컨덕터(정격 결선)

6 mm²
Blade size
0,6 x 3,5 mm
Clampable conductor
  • Connection specification:
    Screw connection
  • Cross-section for conductor connection:
    • Type:
      solid, H05(07) V-U
    • min.:
      0,5 mm²
    • max.:
      6 mm²
    • nominal:
      4 mm²
  • wire end ferrule:
    • Stripping length:
      • min.:
        10 mm
      • max.:
        10 mm
      • nominal:
        10 mm
    • Tightening torque:
      • min.:
        0,5 Nm
      • max.:
        1 Nm
  • Connection specification:
    Screw connection
  • Cross-section for conductor connection:
    • Type:
      stranded, H07V-R
    • min.:
      1,5 mm²
    • max.:
      6 mm²
    • nominal:
      4 mm²
  • wire end ferrule:
    • Stripping length:
      • min.:
        10 mm
      • max.:
        10 mm
      • nominal:
        10 mm
    • Tightening torque:
      • min.:
        0,5 Nm
      • max.:
        1 Nm
  • Connection specification:
    Screw connection
  • Cross-section for conductor connection:
    • Type:
      flexible, H05(07) V-K
    • min.:
      0,5 Nm
    • max.:
      6 Nm
    • nominal:
      4 Nm
  • wire end ferrule:
    • Stripping length:
      • min.:
        10 mm
      • max.:
        10 mm
      • nominal:
        10 mm
    • Tightening torque:
      • min.:
        0,5 Nm
      • max.:
        1 Nm
Clamping range, min.
0,13 mm²
Clamping screw
M 3
Connection cross-section, finely stranded, min.
0,13 mm²
Connection cross-section, stranded, max.
6 mm²
Connection cross-section, stranded, min.
0,13 mm²
Connection direction
on side
Gauge to IEC 60947-1
A4
Number of connections
2
Stripping length
10 mm
Tightening torque, max.
1 Nm
Tightening torque, min.
0,5 Nm
Torque level with DMS electric screwdriver
2
Twin wire-end ferrules, max.
2,5 mm²
Twin wire-end ferrules, min.
0,5 mm²
Type of connection
Screw connection
Wire connection cross section AWG, max.
AWG 10
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
6 mm²
Wire connection cross section, finely stranded, min.
0,13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,13 mm²
Wire connection cross-section, solid core, max.
6 mm²
Wire connection cross-section, solid core, min.
0,13 mm²

dane znamionowe wg CSA

Certificate No. (CSA)
200039-1057876
Current size B (CSA)
35 A
Current size C (CSA)
35 A
Voltage size C (CSA)
600 V
Wire cross section max. (CSA)
10 AWG
Wire cross section min. (CSA)
26 AWG

General

Mounting rail
TS 35
Standards
IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 10
Wire connection cross section AWG, min.
AWG 26

Rating data

Rated cross-section
4 mm²
Jmenovité napětí
800 V
Rated DC voltage
800 V
Nominal current
32 A
Current at maximum wires
41 A
Normas
IEC 60947-7-1
Fajlagos ellenállás az IEC 60947-7-x szerint
1 mΩ
Sobretensión de choque nominal
8 kV
Ztráta výkonu v souladu s normou IEC 60947-7-x
1,02 W
Pollution severity
3

dane znamionowe wg UL

Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
10 AWG
Conductor size Factory wiring min. (UR)
26 AWG
Conductor size Field wiring max. (UR)
10 AWG
Conductor size Field wiring min. (UR)
22 AWG
Current size C (UR)
35 A
Voltage size C (UR)
600 V

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
