RS F14 LP2N 5/14
RS F14 LP2N 5/14

RS F14 LP2N 5/14

Tämä tuote ei ole enää saatavana.

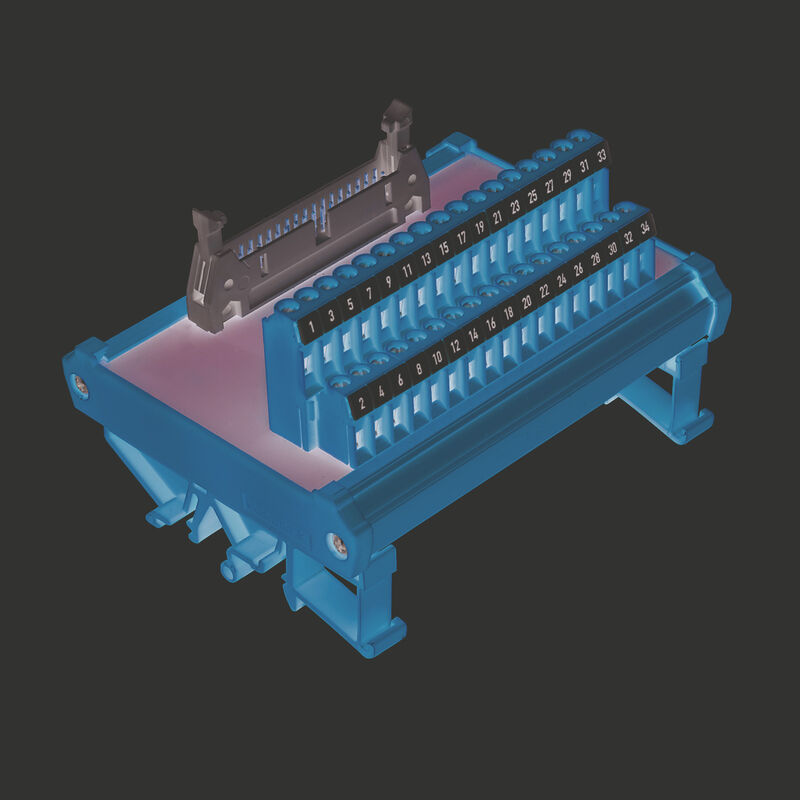

Interface, RSF, Plug-in connector in acc. with IEC60603-13 / DIN41651, 14-pole, Screw connection

Tuotteen tunnus 0225061001
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 25 Samankaltaiset tuotteet 6
Zulassungen General ordering data Abmessungen und Gewichte Temperatures Environmental Product Compliance Rated data UL Connection Data Rating data Isolationskoordinaten (EN50178) Connection field Besorolások

Zulassungen

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Megfelel
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E141197

General ordering data

Version
Interface, RSF, Plug-in connector in acc. with IEC60603-13 / DIN41651, 14-pole, Screw connection
Order No.
0225061001
Type
RS F14 LP2N 5/14
GTIN (EAN)
4032248047116
Qty.
1 szt.
Status dostawy
W przyszłości ten artykuł nie będzie już dostępny.
Ostatnia data zamówienia
/Date(1770678000000)/

Abmessungen und Gewichte

Depth
70 mm
Depth (inches)
2,756 inch
Height
87 mm
Magasság (coll)
3,425 inch
Width
50 mm
Larghezza (pollici)
1,968 inch
Masa netto
112 g

Temperatures

Storage temperature
-40...60 °C
Operating temperature
0...55 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Nincs 0,1 tömeg% feletti SVHC

Rated data UL

Operating temperature UL, max.
25 °C
Operating temperature UL, min.
0 °C
Rated current IN
1 A
Rated current Imax
1 A
Rated voltage UN
≤ 60 V AC / 75 V DC

Connection Data

Connection (field side)
LL2N 5.08 mm
Connection on control side
Plug-in connector in acc. with IEC60603-13 / DIN41651
Earthing
No
Number of poles (control side)
14-pole

Rating data

Rated voltage
60 V AC / 75 V DC
Rated current per connection
1 A

Isolationskoordinaten (EN50178)

According to
DIN EN 50178
Rated insulation voltage
100 V
Surge voltage category
II
Pollution severity level
2
test napięcia impulsu
0,8 kV

Connection field

Clamping range, max.
6 mm²
Clamping range, min.
0,5 mm²
Flexible with sleeve, max.
2,5 mm²
Flexible with sleeve, min.
0,5 mm²
Flexible, max. H05(07) V-K
4 mm²
Flexible, min. H05(07) V-K
0,5 mm²
Max. wire cross-section, AWG
AWG 12
Min. wire cross-section, AWG
AWG 26
Sleeve with plastic collar, max.
2,5 mm²
Solid, max. H05(07) V-U
6 mm²
Solid, min. H05(07) V-U
0,5 mm²
Stripping length
6 mm
Tightening torque, max.
0,6 Nm
Tightening torque, min.
0,5 Nm
Type of connection
Schraubanschluss

Besorolások

ETIM 8.0
EC002780
ETIM 9.0
EC002780
ETIM 10.0
EC002780
ECLASS 14.0
27-14-11-52
ECLASS 15.0
27-14-11-52
