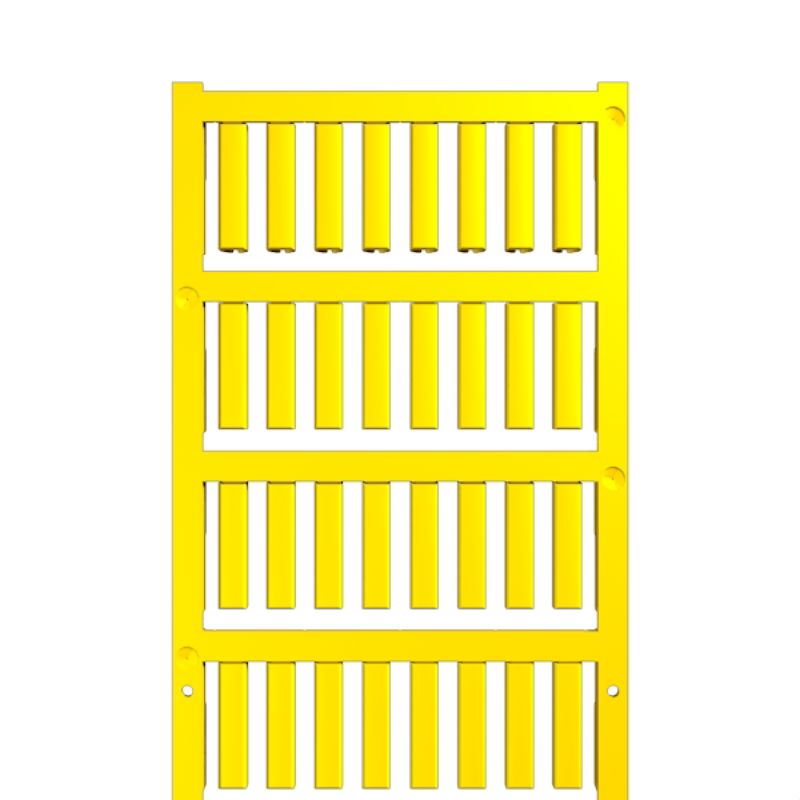

SlimFix, Conductor and cable markers, 3 - 3.7 mm, 21 x 4.6 mm, yellow

Ürün No. 1918890000
Veri sayfasını indir Engineering Support Product Downloads
İlgili ürünler 9
Approvals Datos generales para pedido Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Классификации

Approvals

ROHS
Conform

Datos generales para pedido

Version
SlimFix, Conductor and cable markers, 3 - 3.7 mm, 21 x 4.6 mm, yellow
Order No.
1918890000
Type
SF 3/21 MC NE GE V2
GTIN (EAN)
4032248554270
Qty.
320 adet

Dimensions and weights

Depth
4,8 mm
Profondeur (pouces)
0,189 inch
Height
21 mm
Высота (в дюймах)
0,827 inch
Width
4,6 mm
Width (inches)
0,181 inch
Net weight
0,406 g

Temperatures

Operating temperature range
-40...100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.003 kg CO2 eq.

General data

Basic material
Polyamide 66
Colour
yellow
compatible printer
[PRINTJET CONNECT](~/p/2715590000)
Halogen
No
Number of markers per combination
1 MultiCard = Conductor and cable markers
Number of markers per packaging unit
  • Form of supply:
    MultiCard
Operating temperature range
-40...100 °C
Operating temperature range, max.
100 °C
Operating temperature range, min.
-40 °C
Recommended industries
Transportation
Machinery
Size of labelling field
21 x 4.6 mm
Type of printing
neutral
UL 94 flammability rating
V-2
Width
4,6 mm

Conductor and cable markers

Conductor cross-section, min.
1,5 mm²
Conductor O.D.
3 - 3.7 mm
Conductor O.D., max.
3,7 mm
Conductor O.D., min.
3 mm
Cross-section for connected wire
1.5 - 2.5 mm²
Halogen
No
Sezione di collegamento cavo, max.
2,5 mm²

Классификации

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
