Eigenschappen

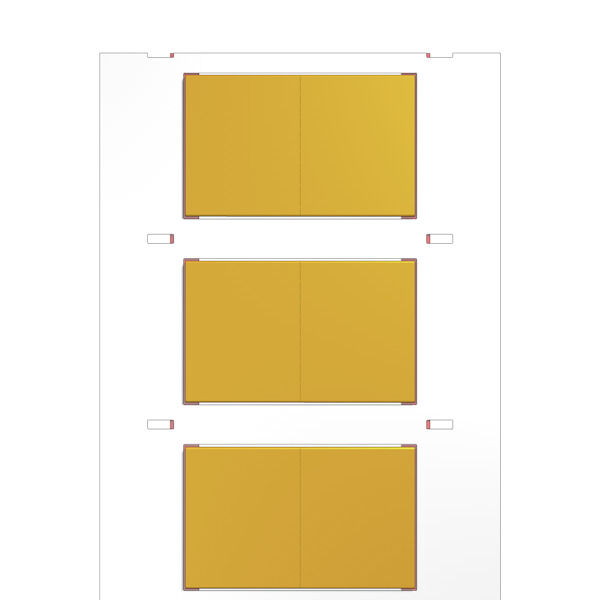

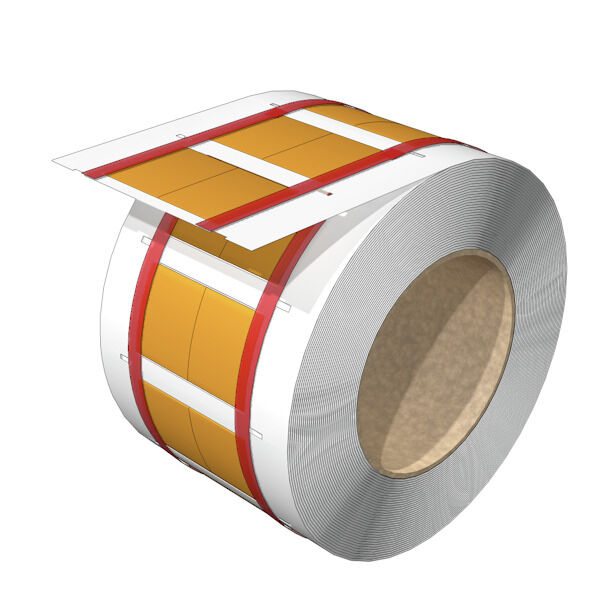

| Version | Conductor and cable markers, 9.5 - 19.1 mm, 24.9 x 30.4 mm, yellow |
| Order No. | 2621690000 |
| Type | HS-FR 9.5-19.1/25 MM Y |
| GTIN (EAN) | 4050118625356 |
| Qty. | 800 items |
| Depth | 0,77 mm |
| Depth (inches) | 0,03 inch |
| Height | 24,9 mm |
| Height (inches) | 0,98 inch |
| Width | 30,4 mm |
| Width (inches) | 1,197 inch |
| Net weight | 0,8 g |
| Operating temperature range | -55...125 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | yellow |
| compatible printer |
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000) |
| Halogen | No |
| Material | Polyolefine |
| Operating temperature range | -55...125 °C |
| Operating temperature range, max. | 125 °C |
| Operating temperature range, min. | -55 °C |
| Size of labelling field | 30.4 x 24.9 mm |
| Width | 30,4 mm |
| Conductor cross-section, max. | 70 mm² |
| Conductor cross-section, min. | 16 mm² |
| Conductor O.D. | 9.5 - 19.1 mm |
| Conductor O.D., max. | 19,1 mm |
| Conductor O.D., min. | 9,5 mm |
| Cross-section for connected wire | 16 - 70 mm² |
| Halogen | No |
| Rate of shrinkage | 2:1 |
| Recommended shrinking temperature | 90 °C |
| Wire connection cross section AWG, max. | AWG 2/0 |
| Wire connection cross section AWG, min. | AWG 6 |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2621690000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
