Eigenschappen
| Category | Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B) |
| Connector left | RJ45 IP 67 Baymo V01 plastic |
| Connector right | RJ45 IP 67 Baymo V01 plastic |
| Material sheath | PUR |
| Product type | System cable |
| Sheathing colour | green (RAL 6018) |

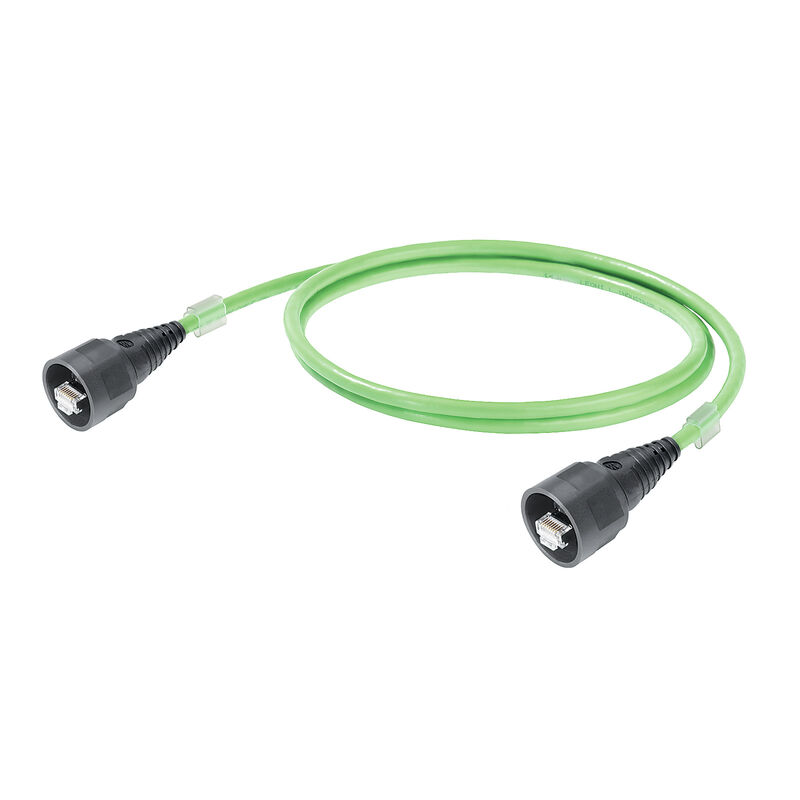

| Version | System cable, RJ45 IP 67 Baymo V01 plastic, RJ45 IP 67 Baymo V01 plastic, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 10 m |
| Order No. | 1106040000 |
| Type | IE-C5ES8UG0100P41P41-E |
| GTIN (EAN) | 4032248881499 |
| Qty. | 1 items |
| Available until | 06.12.2013 |
| Length | 10 m |
| Length (inches) | 393,701 inch |
| Net weight | 490,3 g |
| Storage temperature | -40 °C...75 °C |
| Operating temperature | -40 °C...80 °C |
| Installation temperature | -10 °C...60 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 67cf1078-beca-4687-860b-dc475a6ec24a |
| Corrosiveness of fumes | to IEC 60754-2 |
| Generic communication cable facilities |
ISO / IEC 11801:2002
EN 50173-1:2007 |
| Standard, assembly | UL-Style 20963 (80°C/30V) |
| Certificate no. (cULus) | E316369 |
| Connector standard |
IEC 61076-3-106 Var. 1
IEC 60603-7-51 |
| Connector standard |
IEC 61076-3-106 Var. 1
IEC 60603-7-51 |
| Corrosiveness of fumes | to IEC 60754-2 |
| Generic communication cable facilities |
ISO / IEC 11801:2002
EN 50173-1:2007 |
| Standard, assembly | UL-Style 20963 (80°C/30V) |
| Arrangement of wire cores | Twisted pair |
| Colour sequence or wires - wire pairs | white - blue, white - orange, white - green, white - brown |
| Complete shielding |
Aluminium foil
Shielding braid made from copper wiring |
| Cross-section | 4*2*AWG 26/7 - 4*2*0.128 mm² |
| Insulation | PE |
| Insulation cross-section | 1 mm |
| Material sheath | PUR |
| Number of wires | 8 |
| Sheath diameter, max. | 6,3 mm |
| Sheath diameter, min. | 5,7 mm |
| Sheathing colour | green (RAL 6018) |
| Shielding | SF/UTP |
| Shielding braid thickness | 0,1 mm |
| Standard designations |
LI02YS(ST)C11Y 4x2x0.15-100 GN NC
SF/UTP |
| Strands | 7 |
| Wire material | Stranded tin-plated copper wire |
| Capacity at 1 kHz | 47 nF/km |
| Category | Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B) |
| Characteristic impedance | 100 ± 5 Ω at 100MHz |
| Delay skew | 25 ns/100m |
| Loop resistance | 290 Ω/km |
| Signal propagation time | 4,85 ns/m |
| Test voltage: wire-wire-shield | 1000 Vrms, 50 Hz, 1 min |
| Abrasion resistance | very good |
| Corrosiveness of fumes | to IEC 60754-2 |
| Halogen | halogen-free, according to IEC 60754-2 |
| Min. bending radius, once only | 4 x cable diameter |
| Min. bending radius, repetitive | 10 x cable diameter |
| Resistance to oils | in accordance with IEC 60811-2-1 |
| Resistance to spread of flame | in accordance with IEC 60332-1 |
| Silicone-free | Yes |
| UV-resistant | Yes |
| Plug left | RJ45, IP67, male contact, straight, V01 Baymo, plug, Plastic, shielded |
| Plug right | RJ45, IP67, male contact, straight, V01 Baymo, plug, Plastic, shielded |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_252685) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1106040000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1106040000&norm=0) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC002599 |
| ETIM 7.0 | EC002599 |
| ETIM 8.0 | EC002599 |
| ETIM 9.0 | EC002599 |
| ECLASS 9.0 | 27-06-03-08 |
| ECLASS 9.1 | 27-06-03-08 |
| ECLASS 10.0 | 27-06-03-08 |
| ECLASS 11.0 | 27-06-03-08 |
| ECLASS 12.0 | 27-06-03-08 |
| ECLASS 13.0 | 27-06-03-08 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E316369 |
