Eigenschappen

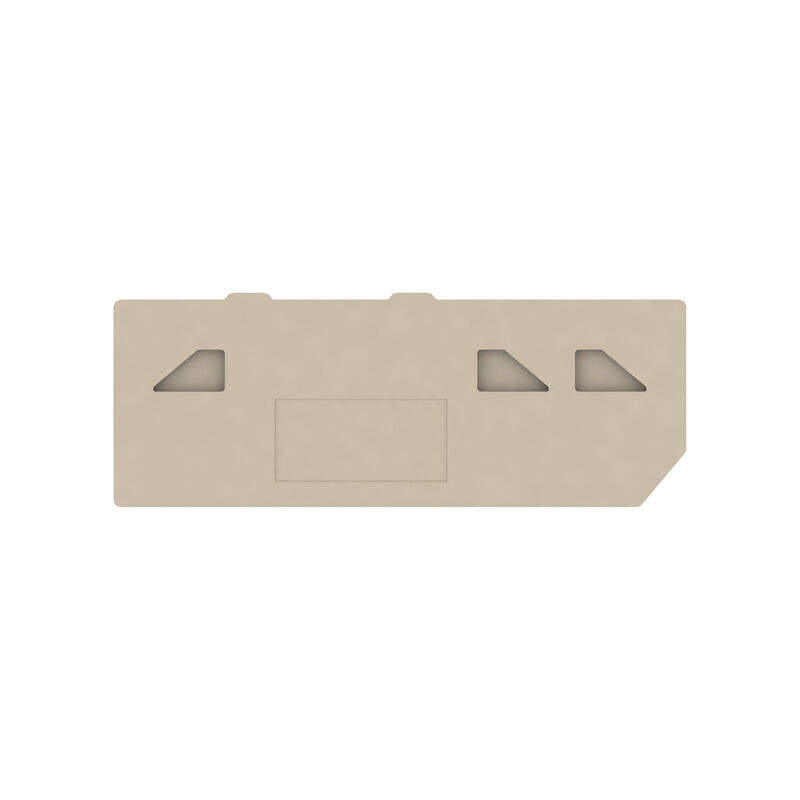

| Version | P-series, End plate, dark beige, 2.5 mm |
| Order No. | 1934690000 |
| Type | PAP PTR2.5/4/3AN |
| GTIN (EAN) | 4032248591664 |
| Qty. | 20 items |
| Delivery status | This article will no longer be available in the future. |
| Available until | 30.06.2025 |
| Alternative product | [1989970000](~/p/1989970000) |
| Depth | 30,2 mm |
| Depth (inches) | 1,189 inch |
| Height | 83,3 mm |
| Height (inches) | 3,28 inch |
| Width | 2,5 mm |
| Width (inches) | 0,098 inch |
| Net weight | 3,7 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version | End plate |
| Installation advice | Direct mounting |
| Snap-on | Yes |
| Type of fixing | Snap-on |
| Type of mounting | Direct mounting |
| Installation advice | Direct mounting |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_65024) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1934690000) |
| User Documentation |
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
[User Manual ZQV/PAP](https://mdcop.weidmueller.com/mediadelivery/asset/900_229200) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-33 |
| ECLASS 11.0 | 27-14-11-33 |
| ECLASS 12.0 | 27-14-11-33 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
