Eigenschappen

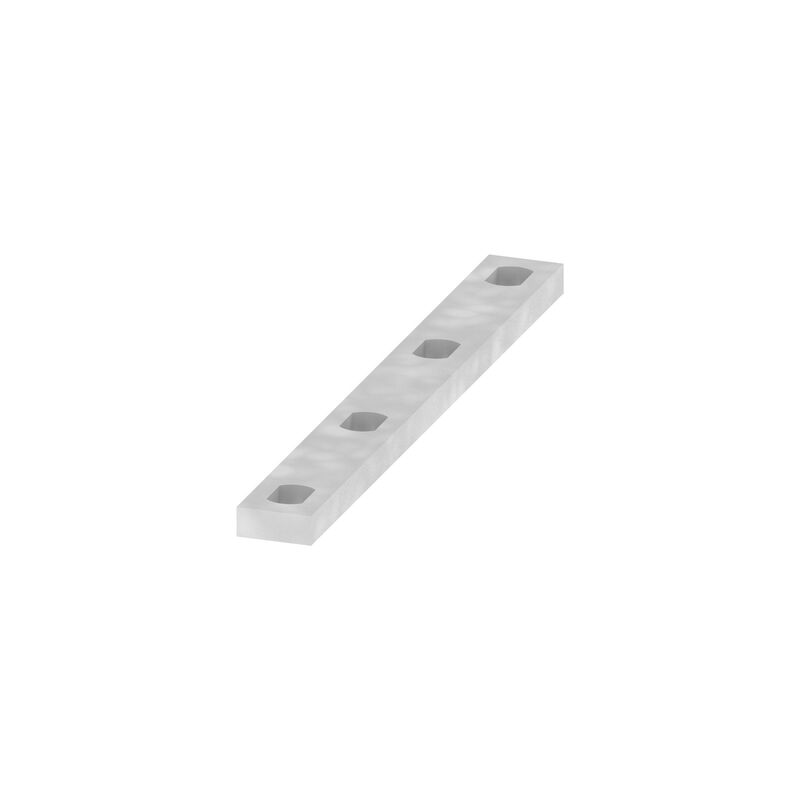

| Version | Cross-connector (terminal), when screwed in, Number of poles: 4, Pitch in mm (P): 27.60, Insulated: No, 36 A, grey |
| Order No. | 0208000000 |
| Type | QL 4 SAKS2 |
| GTIN (EAN) | 4008190069100 |
| Qty. | 20 items |
| Delivery status | This article will no longer be available in the future. |
| Available until | 31.12.2024 |
| Depth | 4 mm |
| Depth (inches) | 0,157 inch |
| Height | 10 mm |
| Height (inches) | 0,394 inch |
| Width | 95,8 mm |
| Width (inches) | 3,772 inch |
| Net weight | 29,85 g |
| Storage temperature | -25 °C...55 °C |
| REACH SVHC | / |
| Material | Copper |
| Colour | grey |
| Version | for cross-connection link |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | when screwed in |
| Number of cross-connected terminals | 4 |
| Rated current, 2-pole | 36 A |
| Rated current, multi-pole | 36 A |
| Type | Cross-connector |
| Pitch in mm (P) | 27,6 mm |
| Installation advice | Direct mounting |
| Number of poles | 4 |
| Rated current | 36 A |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_58853) |
| Engineering Data | [Zuken E3.S](LINK/CAE_EN.html) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0208000000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0208000000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=0208000000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| ROHS | Conform |
