Eigenschappen
| Version | Fixed cable version, M8, 30 V, , LED: Yes, LED initiator: Yes, Wiring type: PNP, 5 m |
| Order No. | 1849700000 |

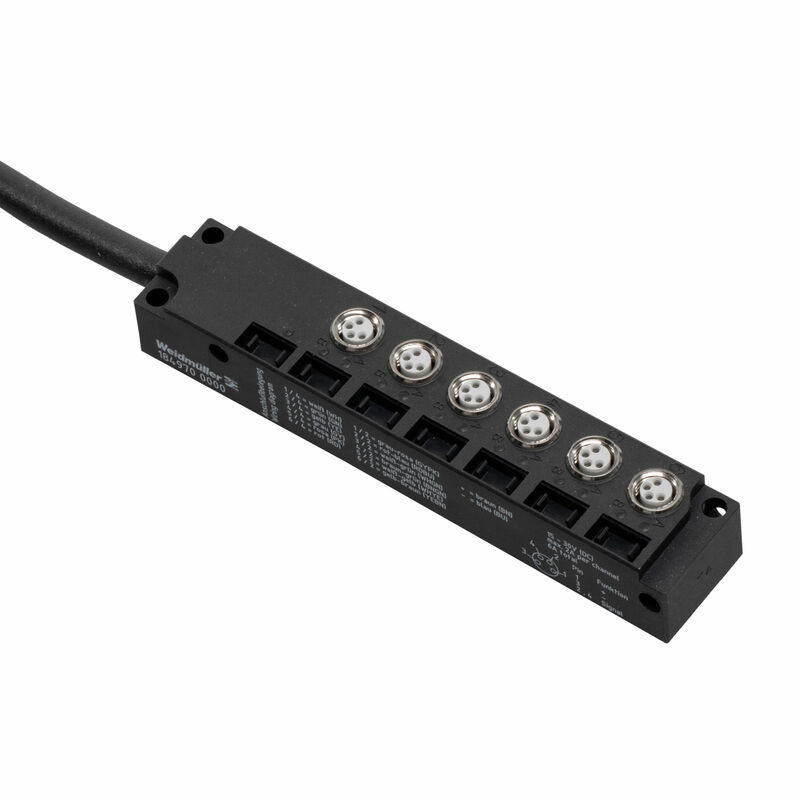

| Type | SAI-06L-VPFC-4A-M08L-PNP-05U05 |
| GTIN (EAN) | 4032248376698 |
| Qty. | 1 items |
| Depth | 18,2 mm |
| Depth (inches) | 0,717 inch |
| Height | 118 mm |
| Height (inches) | 4,646 inch |
| Width | 24 mm |
| Width (inches) | 0,945 inch |
| Net weight | 532 g |
| Operating temperature | -25 - 80°C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 4060c755-8d0b-4d43-bdb3-4ffabe9d7497 |
| Sheathing stripping length | 100 mm |
| Distributor outlet | Fixed cable version |
| Rated voltage, min. | 10 V |
| Rated voltage, max. | 30 V |
| Test voltage | 1 kV |
| Max. current-carrying capacity per slot | 2 A |
| Total current | 6 A |
| Current per signal | 1 A |
| Electrical isolation available | No |
| Insulation strength | 109 Ω |
| Protection degree | IP68 |
| Number of poles | 4 |
| Number of contact sockets | 6 |
| Connection thread | M8 |
| Pollution severity | 3 |
| Fire behaviour | V-0 |
| LED | Yes |
| LED initiator | Yes |
| LED colour for indicating operation | green |
| LED colour for I/O function | yellow |
| Material O-Ring | FKM |
| Housing main material | PBT |
| Material of distributor | Plastic |
| Housing colour | black (similar to RAL 9005) |
| Screw socket | Nickel-plated CuZn |
| Contact material | CuZn |
| Contact surface | Gold-plated |
| Contact carrier material | PBT (UL 94 V0) |
| Bending cycles | 2 Mio |
| Bending radius, min., moving | 10 x cable diameter |
| Halogen | No |
| Number of poles | 4 |
| O.D. | 7,7 mm |
| Sheath material | PUR |
| Sheathing colour | black |
| Shielded | No |
| Wire cross section (Print/Online) | 12 x 0.34 mm² + 2 x 0.75 mm² |
| Cable length | 5 m |
| Suitable for cable carriers | Yes |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_89486) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1849700000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1849700000&norm=0) |
| Product Change Notification |
[20211208 Technical change to SAI M8 Line Distribution Boxes](https://mdcop.weidmueller.com/mediadelivery/asset/900_248232)
[20211208 Technische Änderung zu SAI M8 Line Verteiler](https://mdcop.weidmueller.com/mediadelivery/asset/900_248233) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC002585 |
| ETIM 7.0 | EC002585 |
| ETIM 8.0 | EC002585 |
| ETIM 9.0 | EC002585 |
| ECLASS 9.0 | 27-44-01-08 |
| ECLASS 9.1 | 27-44-01-08 |
| ECLASS 10.0 | 27-44-01-08 |
| ECLASS 11.0 | 27-44-01-08 |
| ECLASS 12.0 | 27-44-01-08 |
| ECLASS 13.0 | 27-44-01-08 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E92202 |
