TERMSERIES PUSHIN PROMO

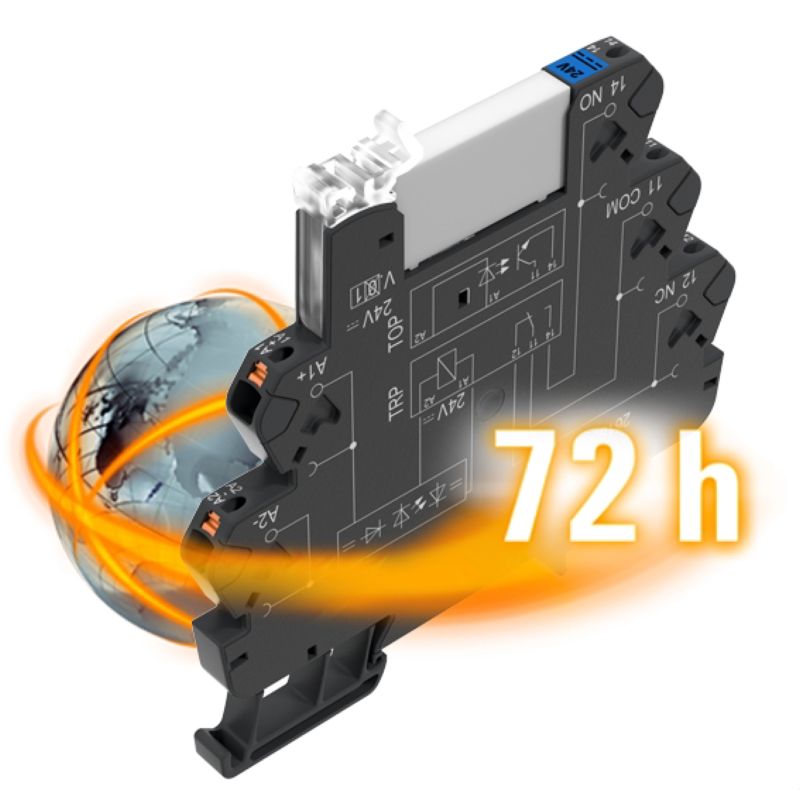

Product image
Similar to illustration
TERMSERIES PUSHIN PROMO
Dimensional drawing

TERMSERIES PUSHIN PROMO

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi, PUSH IN, Test button available: No

Product ID 2671460000
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 27 Verwante producten 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Load side General data Connection data Product images Classifications

Approvals

ROHS
Conform

General ordering data

Version
TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi, PUSH IN, Test button available: No
Order No.
2671460000
Type
TERMSERIES PUSHIN PROMO
GTIN (EAN)
4050118698589
Qty.
10 items

Dimensions and weights

Depth
87,8 mm
Depth (inches)
3,457 inch
Height
89,4 mm
Height (inches)
3,52 inch
Width
6,4 mm
Width (inches)
0,252 inch
Net weight
28,2 g

Temperatures

Storage temperature
-40 °C...85 °C
Ambient temperature
-40 °C…60 °C
Humidity
5-95% relative humidity, Tu = 40°C, without condensation

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
9e2cbc49-76d9-4611-b8ec-5b4f549a0aa9

Load side

Contact type
1 CO contact (AgNi)

General data

Mounting rail
TS 35
Test button available
No
Mechanical switch position indicator
No
Colour
black
UL94 flammability rating component
  • Component:
    Housing
  • UL94 flammability rating:
    V-0
  • Component:
    Retaining clip
  • UL94 flammability rating:
    V-0
  • Component:
    Pusher
  • UL94 flammability rating:
    V-0

Connection data

Wire connection method
PUSH IN
Stripping length, rated connection
8 mm
Clamping range, rated connection
1,5 mm²
Clamping range, min.
0,14 mm²
Clamping range, max.
2,5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 14
Blade size
0.4 x 2.0 mm

Product images

Classifications

ETIM 6.0
EC001437
ETIM 7.0
EC001437
ETIM 8.0
EC001437
ETIM 9.0
EC001437
ETIM 10.0
EC001437
ECLASS 9.0
27-37-16-01
ECLASS 9.1
27-37-16-01
ECLASS 10.0
27-37-16-01
ECLASS 11.0
27-37-16-01
ECLASS 12.0
27-37-16-01
ECLASS 13.0
27-37-16-01
ECLASS 14.0
27-37-16-01
ECLASS 15.0
27-37-16-01
