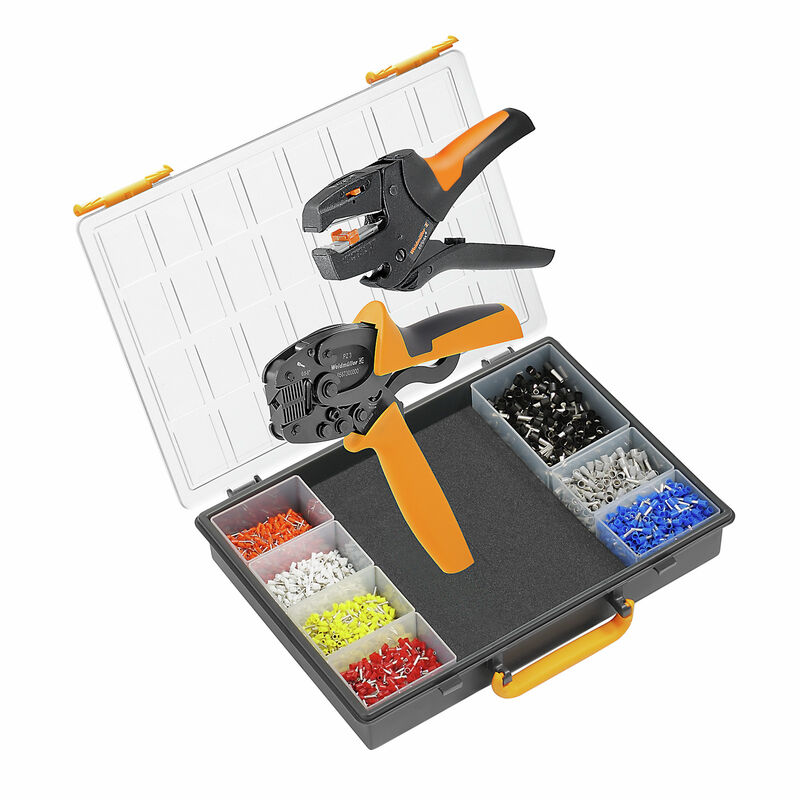

CRIMP-SET PZ 3

CRIMP-SET PZ 3

Assortment crimping tool, Crimping tool: PZ 3, Stripping tool: STRIPAX, Crimping range, min.: 0.5, Colour code: Weidmüller

Item No. 9028650000
Download data sheet Product Downloads
Accessories 11 Individual parts 11 Related products 25
General ordering data Dimensions and weights Environmental Product Compliance Technical data Assortments Classifications

General ordering data

Version
Assortment crimping tool, Crimping tool: PZ 3, Stripping tool: STRIPAX, Crimping range, min.: 0.5, Colour code: Weidmüller
Order No.
9028650000
Type
CRIMP-SET PZ 3
GTIN (EAN)
4032248384044
Qty.
1  items
Packaging
Plastic box

Dimensions and weights

Depth
261  mm
Depth (inches)
10.276  inch
Height
57  mm
Height (inches)
2.244  inch
Width
338  mm
Width (inches)
13.307  inch
Net weight
1,723.38  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Lead 7439-92-1
SCIP
1eacbb3e-7931-4ebb-9179-f29fd9b50028

Technical data

Description of article
Set includes crimping tool for up to 6 mm², stripping tool and wire-end ferrules in Weidmüller colour code

Assortments

Colour code
Weidmüller
Crimping range, max.
6  mm²
Crimping range, min.
0.5  mm²
Crimping tool
PZ 3
Number of AEH
3,100  pcs.
Packaging
Plastic box
Stripping tool
STRIPAX

Classifications

ETIM 6.0
EC000524
ETIM 7.0
EC000524
ETIM 8.0
EC000524
ETIM 9.0
EC000524
ETIM 10.0
EC000524
ECLASS 9.0
27-40-02-18
ECLASS 9.1
27-40-02-18
ECLASS 10.0
27-40-02-18
ECLASS 11.0
27-40-02-18
ECLASS 12.0
27-40-02-18
ECLASS 13.0
27-40-02-18
ECLASS 14.0
27-40-02-18
ECLASS 15.0
27-40-02-18
