General ordering data

Version

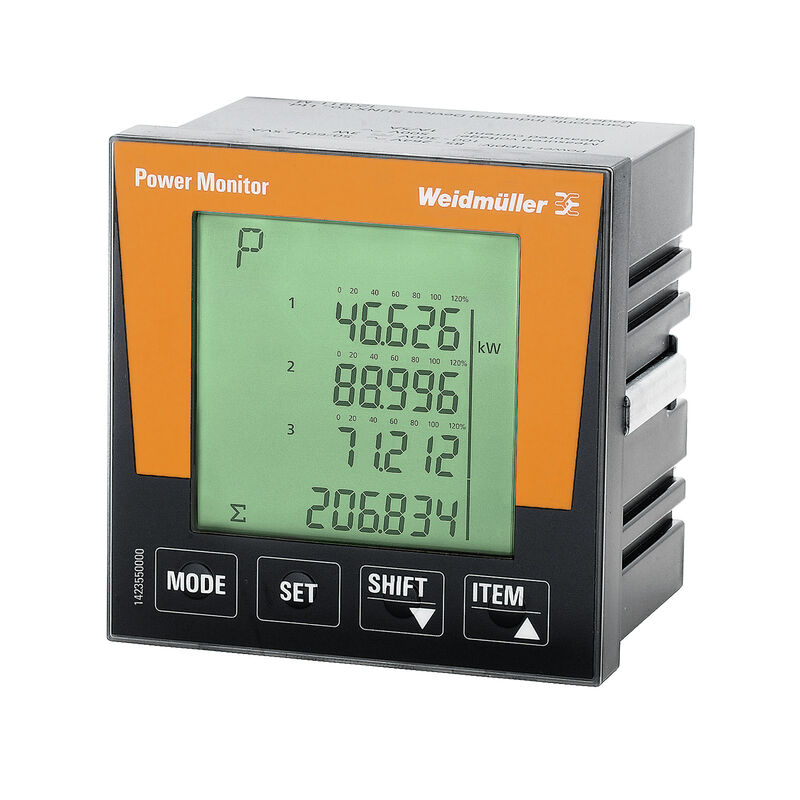

Power measurement/display for 1-, 3-phase mains
Order No.
1423550000
Type
POWER MONITOR
GTIN (EAN)
4050118227871
Qty.
1  items
Delivery status
This article will no longer be available in the future.
Available until
30.12.2026

Dimensions and weights

Depth
68  mm
Depth (inches)
2.677  inch
Height
96  mm
Height (inches)
3.78  inch
Width
96  mm
Width (inches)
3.78  inch
Net weight
427  g

Temperatures

Storage temperature
-25 °C...70 °C
Operating temperature
-25 °C...55 °C
Humidity
35 % to 85 % relative humidity level

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1

Measuring current input

Current-measuring channels
3
Measuring accuracy for current
0.5  %
Rated current
1 / 5 A
Residual current measuring
No

Measuring voltage input

Four-wire system
Yes
Measurement range, voltage L-L, AC
0…500 V
Measurement range, voltage L-N, AC
0…250 V (1P3W)
0…289 V (3P4W)
Measuring accuracy for voltage
1  %
Three-wire system
Yes

Communication

Interface
RS485: Autobaud, 9,6 – 115.2 kbps (pluggable screw terminals)
Protocol
Modbus RTU

Measurement data recording

Memory; minimum and maximum values
No
Software
Power Monitor Manager
Integrated logic
No

Technical data

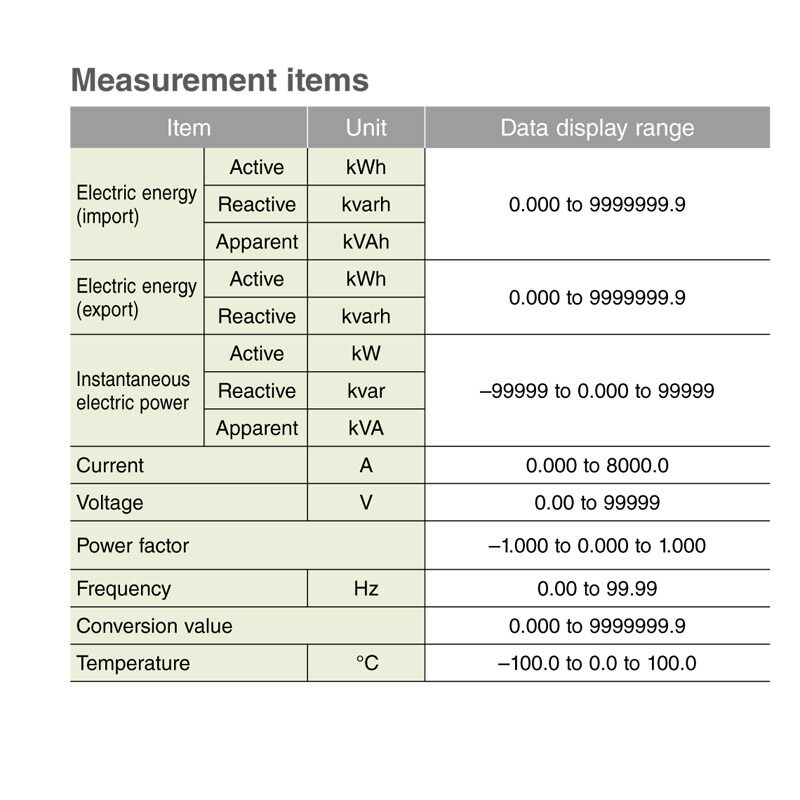

Display value
Apparent power
Effective power
Reactive power
Power factor
Voltage
Current
Frequency
Temperature
Pollution severity
2
Protection degree
Front panel: IP51
Enclosure: IP20
Rated current
1 / 5 A
Version
Power measurement/display for 1-, 3-phase mains
Standards
IEC 61010-1
Measurement range, voltage L-N, AC
0…250 V (1P3W)
0…289 V (3P4W)
Measurement range, voltage L-L, AC
0…500 V
Surge voltage category
II
Voltage supply
100…240 V AC
100...300 V DC
Supply voltage
230 V
Three-wire system
Yes
Four-wire system
Yes
Sampling frequency 50/60 Hz
1,024  kHz
Measurement result per second
100,000  ms
Residual current measuring
No
Current-measuring channels
3
Measuring accuracy for voltage
1  %
Measuring accuracy for current
0.5  %
Measurement accuracy for active energy (kWh, .../5 A)
1% for the calculated values
Clock
Yes

Voltage quality measurement

Positive, negative and zero system
Yes
Brief interruptions
Yes
Sequence-of-events recorder function
No

Insulation coordination

Pollution severity
2
Surge voltage category
II

Classifications

ETIM 6.0
EC002301
ETIM 7.0
EC002301
ETIM 8.0
EC002301
ETIM 9.0
EC002301
ETIM 10.0
EC002301
ECLASS 9.0
27-14-23-30
ECLASS 9.1
27-21-03-01
ECLASS 10.0
27-14-23-30
ECLASS 11.0
27-14-23-30
ECLASS 12.0
27-14-23-30
ECLASS 13.0
27-14-23-30
ECLASS 14.0
27-14-23-30
ECLASS 15.0
27-14-23-30

Tender specification sheets

Long specification
Electrical parameters have to be measured and visualised to optimise your machines' and systems' energy needs. This is the only way in which an analysis can be carried out and, subsequently, savings made and an energy management system established. An easy-to-install solution is now available from Weidmüller. When implementing an energy management system according to ISO 50001, the Power Monitor is one of the modules necessary to meet the requirements of recording, displaying and analysing power flows.
Technical data:
Input data: measurement variable: active, reactive, apparent power
Recording of frequencies of up to 99.99 Hz and temperatures of up to 100°C
Measurement variable: AC sine (50/60 Hz) designation
Input: voltage measurement inputs V1, V2, V3
Input voltage range: 0 VAC – 500 VAC (phase/phase)
Input voltage range: 0 VAC – 300 VAC (phase/neutral conductor)
Accuracy: 0.5% input current range: via external converters, input current: 8000 A (primary), input current: 5 A (secondary)
Response threshold of rated measurement range value: 1 mA
Power-measurement range: 0– 9999999.9 kW
Power-measurement range: 0– 9999999.9 kvar
Power-measurement range: 0– 9999999.9 kVA
Accuracy: 1%
Interface: RS-485
Type of connection: screw terminals
General data: width: 96 mm, height: 96 mm
Display: LCD display, backlit display
Supply voltage range: 85– 264 VAC
 Rated power consumption: 5 VA, protection degree: IP51 (front), IP20 (rear)
Mains type: 3-phase (3 or 4 conductors), 2-phase (2 conductors) and 1-phase (1 conductor), colour: black, conformity: CE-compliant
Rated insulation voltage: 300 VAC (EN 61010-1)
Overvoltage category: II, ambient temperature (operational): -25°C to 55°C, ambient temperature (storage/transport): -25°C to 70°C
Max. perm. humidity (operation): 85%, height above sea level < 2000 m
Connection data: flexible conductor cross-section min.: 0.5 mm², flexible conductor cross-section max.: 2.5 mm², rigid conductor cross-section min.: 0.2 mm², rigid conductor cross-section max.: 4 mm², type of connection: screw connection
Ordering details: product: Weidmüller interface, type: Power Monitor, item no.: 1423550000
Short specification
Measuring device for optimising energy requirements
