SAIL-7/8W-5-5.0U
SAIL-7/8W-5-5.0U
Dimensioned drawing
Male, angled
SAIL-7/8W-5-5.0U
Pole scheme
Male
SAIL-7/8W-5-5.0U
Wiring diagram

SAIL-7/8W-5-5.0U

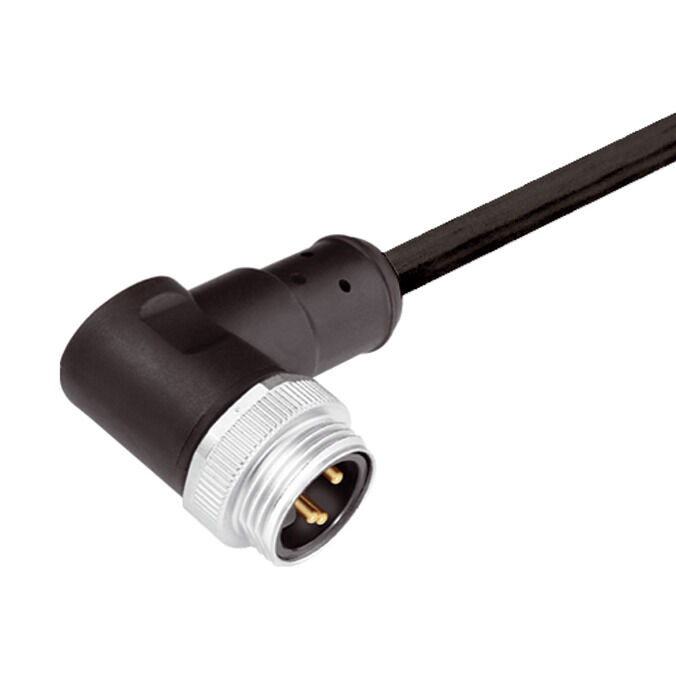

Sensor/actuator line, One end without connector, 7/8", Number of poles : 5 (4 + PE), 5 m, pin, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Item No. 1292180500
Download data sheet Engineering Support
Related products 5
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Plug, left Plug, right Product images Classifications

Approvals

Agréments
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Változat
Sensor/actuator line, One end without connector, 7/8", Number of poles : 5 (4 + PE), 5 m, pin, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Référence
1292180500
Type
SAIL-7/8W-5-5.0U
GTIN (EAN)
4050118088144
Qty.
1 items

Dimensions and weights

Net weight
300 g

Environmental Product Compliance

Stato conformità RoHS
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
ebf89fc8-a87f-4691-b87a-dfb9921774b4

Technical specifications for cable

Cable length
5 m
Core cross-section
1.5 mm²
Cykly ohybu
5 Mio
Farbcodierung
brown
white
blue
black
Green/yellow
Halogen
No
Insulation
TPM
Irradiation crosslinked
No
Konfigurovatelná délka kabelu
No
Materiál pláště
PUR
Number of poles
5 (4 + PE)
Outside diameter
8.7 mm ± 0.2 mm
PE function
Yes
Poloměr ohybu, min., pohyblivý
7.5 x cable diameter
Resistant to welding beads
No
Schweißfunkenbeständigkeit
No
Sheathing colour
black
Shielded
No
Suitable for cable carriers
Yes
Temperaturbereich, fest verlegt
-50...80 °C
Temperature range, moving
-20...80 °C
Torsionsfestigkeit
0 °/m
Vnější potah v souladu se stylem UL AWM
20234 (80 °C / 1000 V)

General technical data

Codifica
none
Cykle wpinania
≥ 100
Filettatura del collegamento
7/8"
LED
No
Nominal current
9 A
Nominal voltage
300 V
Stopień ochrony
IP68
when screwed in
Stopień zanieczyszczenia
3
Диапазон температур корпуса
-40 … +85 ° C
Материал резьбового кольца
Diecast zinc
Номинальное импульсное напряжение
2,500 V
Расчетное напряжение (UL)
600 V
соединено перемычкой
No
接触表面
Au (Gold)
버전
pin, 90°
절연 저항
108 Ω
접점 재질
CuZn
하우징 기본 재질
PUR

Electrical properties

Corriente nominal
9 A (4- and 5-pole), 12 A (3-pole)
Resistencia del aislamiento
108 Ω
Tensión nominal
300 V

General standards

Certificate no. (cULus)
E307231

Plug, left

Stickkontakt vänster
IP68, male contact, angled 90°, Plastic, unshielded

Plug, right

Stickkontakt höger
free conductor end

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
