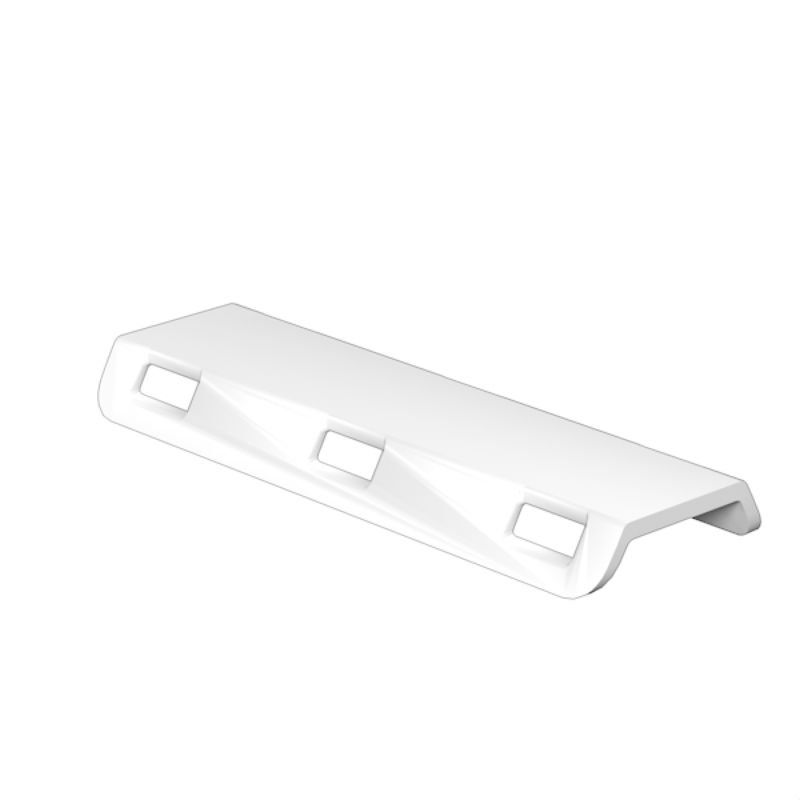

SFX 9/40 S MC NE WS

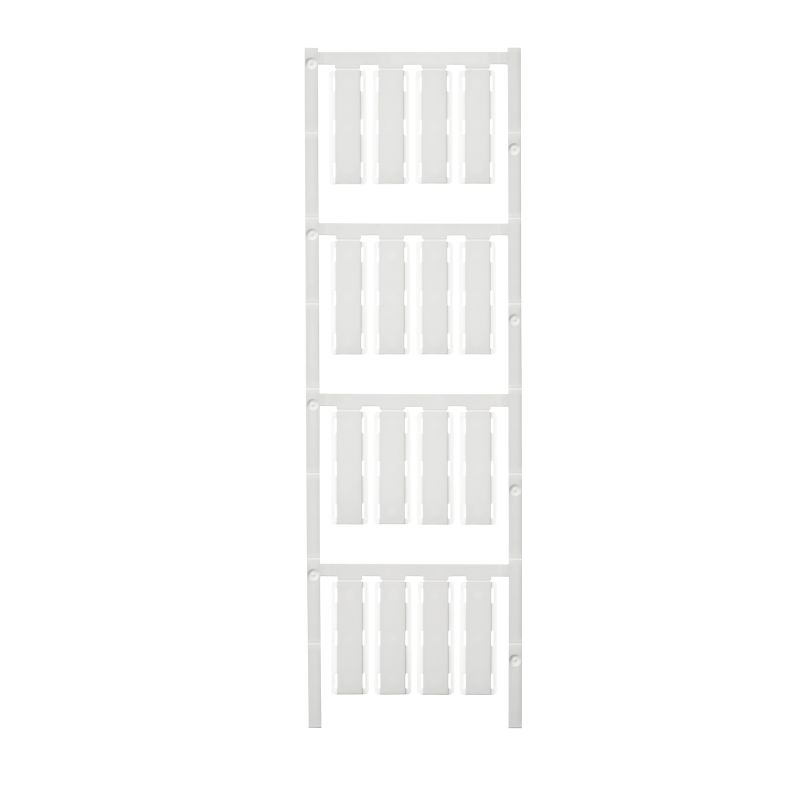

SFX 9/40 S MC NE WS
SFX 9/40 S MC NE WS
Example of use
Similar to illustration
SFX 9/40 S MC NE WS
Example of use
Similar to illustration

SFX 9/40 S MC NE WS

SlimFix X, Leiter- und Kabelmarkierer, 7 - 40 mm, 40 x 13.62 mm, weiß

Item No. 1248760000
Download data sheet Engineering Support Product Downloads
Related products 6
Agréments General ordering data Dimensions and weights Temperature Environmental Product Compliance General data Conductor and cable markers Classifications

Agréments

ROHS
Conforme

General ordering data

Version
SlimFix X, Leiter- und Kabelmarkierer, 7 - 40 mm, 40 x 13.62 mm, weiß
Order No.
1248760000
Type
SFX 9/40 S MC NE WS
GTIN (EAN)
4050118039207
数量
80 Pezzo

Dimensions and weights

Depth
1 mm
Tiefe (inch)
0.039 inch
Height
40 mm
Altura (pulgadas)
1.575 inch
Width
13.62 mm
Szélesség (coll)
0.536 inch
Net weight
1.128 g

Temperature

Operating temperature range
-40...100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Pas de SVHC au-dessus de 0,1 % en poids
Impronta carbonica di prodotto
  • Dalla culla al cancello:
    0.015 kg CO2 eq.

General data

Basic material
Polyamide 66
Colour
white
compatible printer
[PRINTJET CONNECT](~/p/2715590000)
Halogen
No
Material colour according to resistance code
9
Number of markers per combination
1 MultiCard = Conductor and cable markers
Number of markers per packaging unit
  • Form of supply:
    MultiCard
Operating temperature range
-40...100 °C
Operating temperature range, max.
100 °C
Operating temperature range, min.
-40 °C
Recommended industries
Transportation
Machinery
Size of labelling field
40 x 8.5 mm
UL 94 flammability rating
V-2
Version
Instalace pomocí kabelových pásků
Width
13.62 mm

Conductor and cable markers

Conductor cross-section, max.
500 mm²
Conductor cross-section, min.
16 mm²
Conductor O.D.
7 - 40 mm
Conductor O.D., max.
40 mm
Conductor O.D., min.
7 mm
Cross-section for connected wire
16 - 500 mm²
Halogen
No

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
