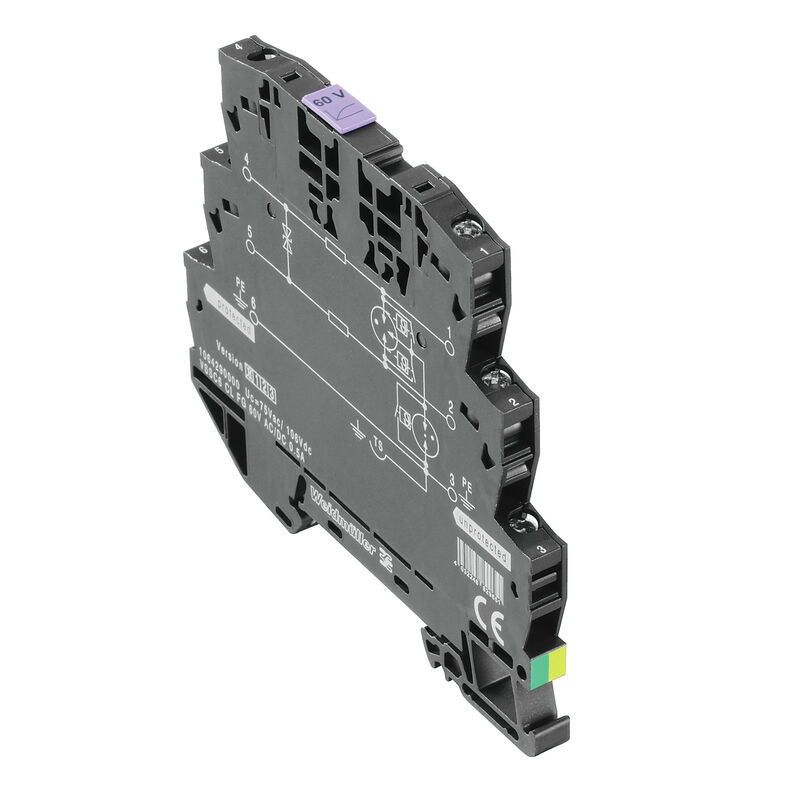

VSSC6 CL 48VAC/DC 0.5A
VSSC6 CL 48VAC/DC 0.5A
VSSC6 CL 48VAC/DC 0.5A
VSSC6 CL 48VAC/DC 0.5A

VSSC6 CL 48VAC/DC 0.5A

Surge protection for instrumentation and control, Surge protection for measurement and control

Product ID 1064190000
Openen in configurator
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 3 Verwante producten 8
Approvals General ordering data Dimensions and weights Temperatures Probability of failure Environmental Product Compliance Rated data UL CSA protection data General data Insulation coordination acc. to EN 50178 Rated data IEC / EN Further details of approvals Connection data Electrical data General data Ratings IECEx/ATEX/cUL Important note Classifications Tender specification sheets

Approvals

Homologaciones
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fe64228-e403-4415-b85f-44f3a8f8bb2c/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/c809b3ab-e765-499c-852e-d528779da9f7/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/f2570d3e-3e62-4056-9c95-fe925a1a2b86/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/a5387a11-3584-42f1-9c6a-815af76ec080/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UL)
E311081

General ordering data

Versione
Surge protection for instrumentation and control, Surge protection for measurement and control
N. d’ordine
1064190000
Tipo
VSSC6 CL 48VAC/DC 0.5A
GTIN (EAN)
4032248829569
Кол.
10 items

Dimensions and weights

Profundidad
81 mm
Depth (inches)
3.189 inch
Hauteur
88.5 mm
Height (inches)
3.484 inch
Width
6.2 mm
Width (inches)
0.244 inch
Net weight
40.6 g

Temperatures

Tárolási hőmérséklet
-40 °C...80 °C
Ambient temperature
-40 °C…70 °C
Üzemi hőmérséklet
-40 °C...70
Umidità
5...96 %

Probability of failure

SIL(IEC 61508 준수)
2
MTTF
6,008 a
SFF
89.74 %
λges
19
PFH в 1*10-9 1/ч
1.95

Environmental Product Compliance

RoHS megfelelőségi állapot
Compliant with exemption
RoHS alóli kivétel (ha van/ismert ilyen)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
71e97bb7-979f-4330-94c0-20c629bb05e3

Rated data UL

인증 번호(UL)
E311081
UL 인증
[UL Zertifikat](PDF/E311081VOL1SEC3.pdf)

CSA protection data

가스 그룹 A, B
IIC
가스 그룹 C
IIB
가스 그룹 D
IIA
내부 용량, 최대 CI
1 nF
내부 유도 용량, 최대 LI
0 µH
입력 전압, 최대 Ui
85 V
입력-전류, 최대 II
500 mA

General data

UL 94 가연성 등급
V-0
광학 기능 디스플레이
No
버전
Surge protection for measurement and control
보호 등급
IP20
설계
Terminal
세그먼트
Measurement - Monitoring - Setting
장착 레일
TS 35
절연 기능
No
컬러 코드
black

Insulation coordination acc. to EN 50178

서지 전압 범주
III
오염 심각도
2

Rated data IEC / EN

Corrente di dimensionamento IN
500 mA
Discharge current Imax (8/20µs) wire-PE
5 kA
Discharge current Imax (8/20µs) wire-wire
5 kA
Discharge current In (8/20µs) wire-PE
2.5 kA
Discharge current In (8/20µs) wire-wire
2.5 kA
Discharge current, max. (8/20 µs)
10 kA
Frequency range, max.
5 MHz
Fuse protection
0.5 A
Insertion loss
250 MHz
Lightning test current Iimp (10/350 µs)
0.5 kA
Lightning test current, Iimp (10/350 µs) Wire-PE
0.5 kA
Max. continuous voltage, Uc (AC)
60 V
Max. continuous voltage, Uc (DC)
85 V
Number of poles
1
Overload - failure mode
Modus 2
Poziom ochrony po stronie wyjścia przewód-przewód 1 kV/µ s, zazwyczaj
70 V
poziom ochrony UP żyła - PE
770 V
Protection level, UP wire - wire
770 V
Pulse-reset capacity
≤ 150 ms
Rated load current IL
500 mA
Rated voltage (AC)
48 V
Requirements category acc. to IEC 61643-21
C2
C3
D1
Signal transmission properties (-3 dB)
5 Mhz
Standards
IEC 61643-21
HART-compatible
Surge current-carrying capacity C2
2.5 kA
Surge current-carrying capacity C3
50 A
Surge current-carrying capacity D1
0,5 kA
Tensión nominal (DC)
68 V
Voltage type
AC/DC
Volume resistance
1.8 Ω 10 %
신호 접점
No

Further details of approvals

GOST 인증
[GOST-Zertifikat](PDF/7950_n1-n4.pdf)

Connection data

탈피 길이
10 mm
결선 유형
Screw connection
조임 토크, 최소
0.5 Nm
조임 토크, 최대
0.8 Nm
Clamping range, min.
0.5 mm²
Clamping range, max.
4 mm²
Wire cross-section, solid, min.
0.5 mm²
Wire cross-section, solid, max.
6 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
4 mm²
Connection cross-section, stranded, min.
0.5 mm²
Connection cross-section, stranded, max.
4 mm²

Electrical data

전압 유형
AC/DC

General data

극 수
1
Protection degree
IP20
Colour
black

Ratings IECEx/ATEX/cUL

Certifikát cUL
[cUL Certificate](pdf/VSSC.PDF)

Important note

Termékinformáció
Mode 2: State where the voltage-limiting part of the SPD was short-circuited due to a very low impedance within the SPD. The line is inoperable, but the measuring equipment is still protected by means of a short-circuit.

Classifications

ETIM 8.0
EC000943
ETIM 9.0
EC000943
ETIM 10.0
EC000943
ECLASS 14.0
27-17-15-01
ECLASS 15.0
27-17-15-01

Tender specification sheets

Long specification

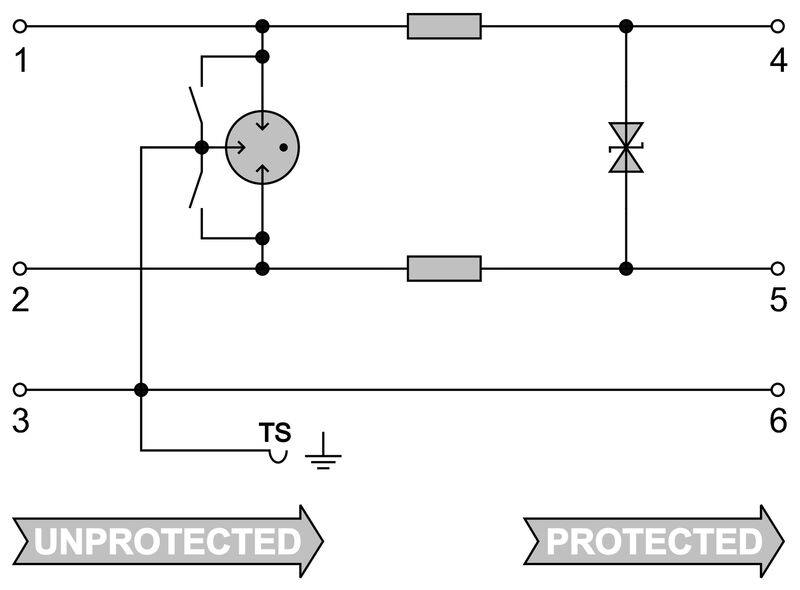

Surge protection in a one piece, 6.2 mm wide DIN rail module for a floating-ground signal circuit with 48 V UC, 2-wire technology. A current loop with max. 0.6A can be protected here. When the terminal is fitted, a simultaneous electrically conducting contact is made between the mounting rail (earth) and the reference potential (ground) of the protection circuit in the terminal. Optical identification of the terminal based on the type of protected switching and the voltage level. The terminal can be labelled or marked.
Short specification
Surge protection in a one piece, 6.2 mm wide DIN rail module for a floating-ground driven signal circuit with 2-wire technology and a common wire. Version: 48V UC
