SAIL-7/8BW-5-5.0U
SAIL-7/8BW-5-5.0U
Dimensioned drawing
Angled socket
SAIL-7/8BW-5-5.0U
Pole scheme
Female
SAIL-7/8BW-5-5.0U
Wiring diagram

SAIL-7/8BW-5-5.0U

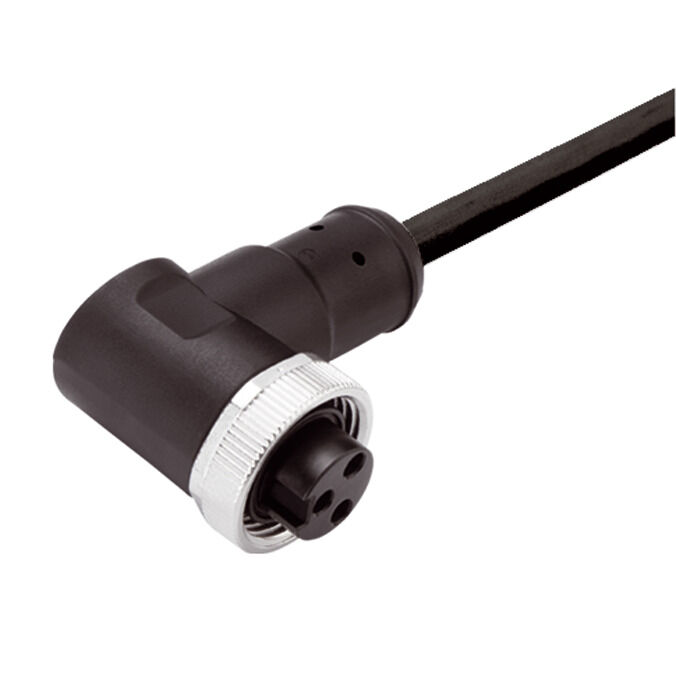

Sensor/actuator line, One end without connector, 7/8", Number of poles : 5 (4 + PE), 5 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Tuotteen tunnus 1292200500
Lataa tietosivu Tekninen tuki
Samankaltaiset tuotteet 5
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Plug, left Plug, right Product images Classifications

Approvals

Homologaciones
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Versión
Sensor/actuator line, One end without connector, 7/8", Number of poles : 5 (4 + PE), 5 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Référence
1292200500
Tipo
SAIL-7/8BW-5-5.0U
GTIN (EAN)
4050118088311
Qty.
1 items

Dimensions and weights

Net weight
300 g

Environmental Product Compliance

RoHS megfelelőségi állapot
Compliant with exemption
Exemption RoHS (le cas échéant/connue)
6c
REACH SVHC
Lead 7439-92-1
SCIP
e8d8af70-4c85-4483-bc8c-9bc5b598e2a9

Technical specifications for cable

Bending cycles
5 Mio
Bending radius, min., moving
7.5 x cable diameter
Cable length
5 m
Colour coding
brown
white
blue
black
Green/yellow
Configurable cable length
No
Core cross-section
1,5 mm²
Halogen
No
Insulation
TPM
Irradiation crosslinked
No
Number of poles
5 (4 + PE)
Outer cladding in accordance with UL AWM style
20234 (80 °C / 1000 V)
Outside diameter
8.7 mm ± 0.2 mm
PE function
Yes
Resistant to welding beads
No
Sheath material
PUR
Sheathing colour
black
Shielded
No
Suitable for cable carriers
Yes
Temperature range, moving
-20...80 °C
Temperature range, stationary
-50...80 °C
Torsion resistance
0 °/m
Welding spark resistance
No

General technical data

Contact material
CuZn
Filettatura del collegamento
7/8"
Housing main material
PUR
jumpered
No
LED
No
Opór izolacji
108 Ω
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP68
when screwed in
Rated impulse voltage
2.500 V
Rated voltage (UL)
600 V
Temperature range of housing
-40 … +85 ° C
Threaded ring material
Diecast zinc
Номинальное напряжение
300 V
额定电流
9 A
버전
Socket, angled
접점 표면
Au (Gold)
코딩
none

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
300 V
Rated current
9 A (4- and 5-pole), 12 A (3-pole)
Volume resistance
≤3 mΩ

General standards

Certificate no. (cULus)
E307231

Plug, left

Plug left
IP68, female contact, angled 90°, Plastic, unshielded

Plug, right

Plug right
free conductor end

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
