SAIL-M8GM8SG-4S1.5UIE

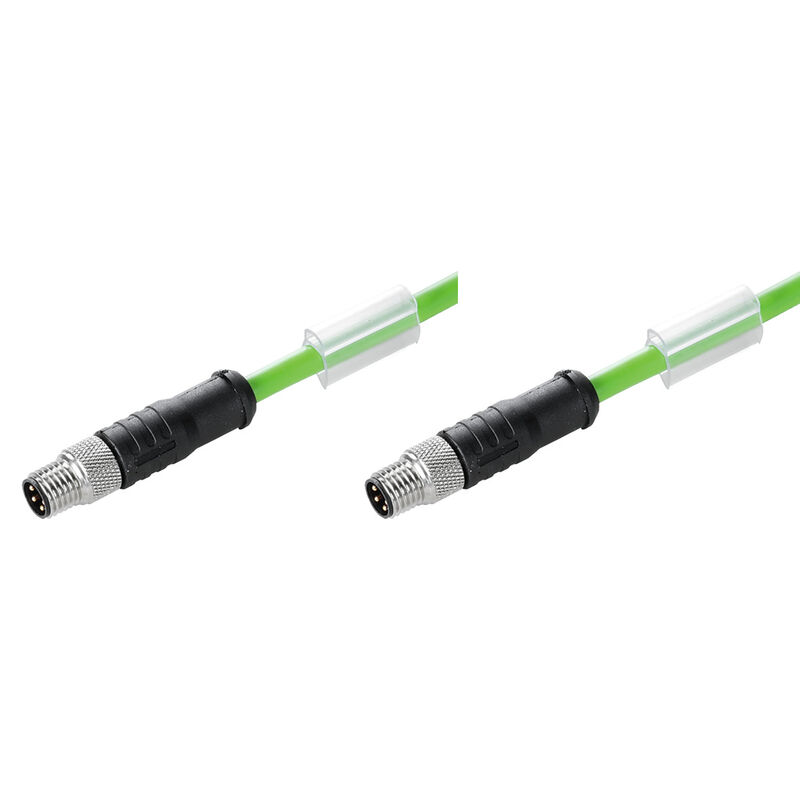

Product image
SAIL-M8GM8SG-4S1.5UIE
Example of use
Male, straight
SAIL-M8GM8SG-4S1.5UIE
Pole scheme
Pin
SAIL-M8GM8SG-4S1.5UIE
Pole scheme
M8 = none
SAIL-M8GM8SG-4S1.5UIE
Wiring diagram

SAIL-M8GM8SG-4S1.5UIE

Bus line, Connecting line, M8 / M8, Number of poles: 4, 1.5 m, Male, straight - male, straight, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No

Produkt ID 1160930150
Download datablad Engineering Support Product Downloads
Anvendte produkter 18
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties Plug, left Plug, right Product images Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Bus line, Connecting line, M8 / M8, Number of poles: 4, 1.5 m, Male, straight - male, straight, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No
Order No.
1160930150
Type
SAIL-M8GM8SG-4S1.5UIE
GTIN (EAN)
4050118119251
Qty.
1 Styk

Dimensions and weights

Net weight
58 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
e8d8af70-4c85-4483-bc8c-9bc5b598e2a9

Technical specifications for cable

Bestrålning tvärbunden
No
Colour coding
blue
orange
white / blue
white / orange
Długość kabla
1,5 m
kolor płaszcza
green
Number of poles
4
Outside diameter
4.8 mm ± 0.3 mm
Przekrój żyły
0,15 mm²
Przydatność do łańcucha ciągowego
Yes
Resistant to welding beads
No
Temperature range, stationary
-40...80 °C
Welding spark resistance
No
Галогены
No
Изоляция
PP
Комбинированный кабель
No
Материал оболочки
PUR
Наружная оболочка в соответствии с UL; проводниковые материалы для бытовых приборов (AWM)
20963 (80 °C / 30 V)
Настраиваемая длина кабеля
No
Радиус изгиба мин., изменяющийся
7.5 x cable diameter
Радиус изгиба, мин., постоянный
4 x cable diameter
Скорость
180 m/s
Ускорение
5 m/s²
Циклы сгиба
5 Mio
Экранированный
Yes

General technical data

Coding
none
Connection thread
M8 / M8
Contact surface
Gold-plated
Housing main material
PUR
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
30 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
Temperature range of housing
-25…+80 °C
Threaded ring material
Brass, nickel-plated
Tightening torque
M8: 0.6 Nm
Version
Male, straight - male, straight

Electrical properties

Nominal voltage
30 V

Plug, left

Plug left
M8, IP67, male contact, straight, Plastic, shielded

Plug, right

Plug right
M8, IP67, male contact, straight, Plastic, shielded

Product images

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
