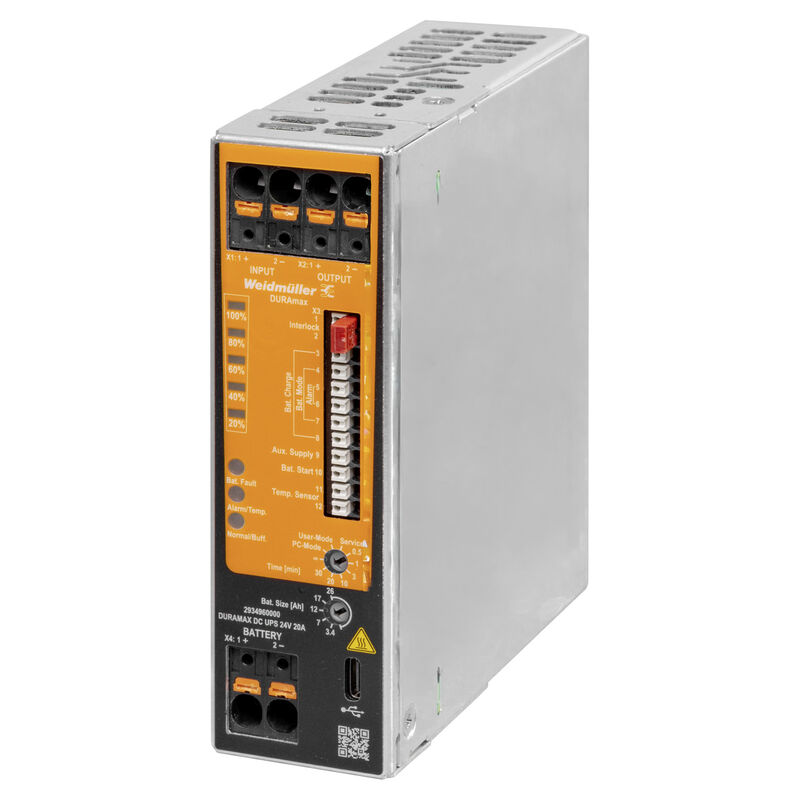

DURA MAX DC UPS 24V 20A

DURA MAX DC UPS 24V 20A

UPS styrmodul, 24 V

Produkt-ID 2934960000
Ladda ner datablad Teknisk support Stöd för programvara Nedladdningar av produkter
Tillbehör 2 Använda produkter 6
Godkännanden Allmänna beställningsdata Mått och vikter Temperaturer Miljööverenstämmelse för produkt Battery module Integrated battery charger Driftsgränssnitt och styringångar Input Output General data EMC / shock / vibration Insulation coordination Electrical safety (applied standards) Connection data (input) Connection data (output) Anslutningsdata (signal) Signalling Klassificeringar

Godkännanden

Approvals
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/4a92d911-d582-40e3-85fc-c9e9b159e140/DAP_Master_ICON,w_80,q_80)
ROHS
Uppfyllelse
UL File Number Search
[UL-webbplats](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E258476
Certificate no. (cULusEX)
E470829

Allmänna beställningsdata

Version
UPS styrmodul, 24 V
Order No.
2934960000
Type
DURA MAX DC UPS 24V 20A
GTIN (EAN)
4099986684102
Förp.
1 items

Mått och vikter

Depth
125 mm
Byggdjup (tum)
4,921 inch
Height
130 mm
Bygghöjd (tum)
5,118 inch
Width
38 mm
Byggbredd (tum)
1,496 inch
Nettovikt
575 g

Temperaturer

Storage temperature
-40 °C...85 °C
Operating temperature
-25 °C...70 °C
Fuktighet
5...95 % (ingen daggbildning)

Miljööverenstämmelse för produkt

RoHS Compliance Status
Kompatibel med undantag
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
Diboron trioxide 1303-86-2
Lead monoxide 1317-36-8
SCIP
596c610a-7280-4711-937f-d77f7dbaa5e7

Battery module

Nominal voltage
24 V

Integrated battery charger

Battery availability test
every minute
Charging feature
IU characteristic curve
Charging voltage (temperature compensated)
27, 48 V @ 20°C
Temperature coefficient
- 48 mV / °C

Driftsgränssnitt och styringångar

Remote disconnection (Interlock)
Ja
Selector switch battery
3,4 Ah
7 Ah
12 Ah
17 Ah
26 Ah
Selector switch buffer times
0,5 min.
1 min.
3 min.
10 min.
20 min.
30 min.
Service
Temperature probe
NTC 100 kΩ

Input

DC current consumption
<0.2 A @ no load
DC input voltage range
18…30 V DC
Input current
≤26 A
Input fuse (internal)
Yes
Inrush Current Limitation
<28 A
Rated input voltage
24 V dc
Wire connection method
PUSH IN

Output

Battery charging current
0.5 A (3.4 AH)
Output current, max.
20 A
Output power
480 W
Output voltage type
DC
Output voltage, max.
29,5 V
Output voltage, min.
17,5 V
Overload protection
Yes
Parallel connection option
yes, max. 2
Protection against inverse voltage
Sí
Rated output voltage
24 V DC
Temperature coefficient
- 48 mV / °C
Temperature probe
NTC 100 kΩ
Wire connection method
PUSH IN

General data

Buffer times
Depending on the connected battery
Clip-in foot
metal
Degree of efficiency
> 98%
Housing version
Metal, corrosion resistant
Humidity
5...95 %, no condensation
Mounting position, installation notice
Auf Montageschiene TS 35 oben und unten einen Freiraum von 50 mm für eine ungehinderte Luftzufuhr lassen.
MTBF
  • Operating time (hours), min.:
    700.000 h
  • Ambient temperature:
    25 °C
  • Input voltage:
    24 V
  • Duty cycle:
    100 %
Power loss
<10 W
Protection against reverse voltages from the load
≤ 35 V DC
Protection degree
IP20
Short-circuit protection
Ja
Storage medium
3,4 Ah
7 Ah
12 Ah
17 Ah
Går att välja med vridomkopplare
Surge voltage category
III
Weight
600 g

EMC / shock / vibration

Interference immunity test acc. to
EN 61000-4-2 (ESD)/EN 61000-4-3 and EN 61000-4-8 (fields)/EN 61000-4-4 (burst)/EN 61000-4-5 (surge)/EN 61000-4-6 (conducted)/EN 61000-4-11 (dips)
Noise emission in accordance with EN55032
Class B
Shock resistance IEC 60068-2-27
30 g i alla riktningar
Vibration resistance IEC 60068-2-6
2,3 g
4 g

Insulation coordination

Insulation voltage
1 kV DC
Pollution severity
2
Protection class
III
Surge voltage category
III

Electrical safety (applied standards)

Electrical machine equipment
Acc. to EN60204
For use with electronic equipment
Acc. to EN50178
Safety transformers for switch-mode power supplies
Enligt EN 61558-2-16

Connection data (input)

Conductor cross-section, AWG/kcmil , max.
10 AWG
Conductor cross-section, AWG/kcmil , min.
12 AWG
Conductor cross-section, flexible , min.
4 mm²
Conductor cross-section, rigid , max.
6 mm²
Conductor cross-section, rigid , min.
4 mm²
Reverse polarity protection
Ja
Wire connection cross section, flexible (input), max.
2,5 mm²

Connection data (output)

Conductor cross-section, AWG/kcmil , max.
10 AWG
Conductor cross-section, AWG/kcmil , min.
12 AWG
Conductor cross-section, flexible , max.
6 mm²
Conductor cross-section, flexible , min.
4 mm²
Conductor cross-section, rigid , max.
6 mm²
Conductor cross-section, rigid , min.
4 mm²
Reverse polarity protection
Ja

Anslutningsdata (signal)

Wire connection cross-section, flexible (signal), max.
1,5 mm²
Wire connection cross-section, flexible (signal), min.
0,2 mm²
Wire connection method
PUSH IN
Wire cross-section, AWG/kcmil , max.
16
Wire cross-section, AWG/kcmil , min.
25 mm²
Wire cross-section, solid , max.
1,5 mm²
Wire cross-section, solid , min.
0,2 mm²

Signalling

Floating contact
Yes
Status indicator
Röd lysdiod: Fel på batteri
Gul lysdiod: Fel på larm/temperaturgivare
Grön lysdiod: Normalt läge
Grönt blinkande lysdiod: Buffertläge
Lysdiod AV: inget fel

Klassificeringar

ETIM 8.0
EC002850
ETIM 9.0
EC002850
ETIM 10.0
EC002850
ECLASS 14.0
27-04-06-92
ECLASS 15.0
27-04-06-92
