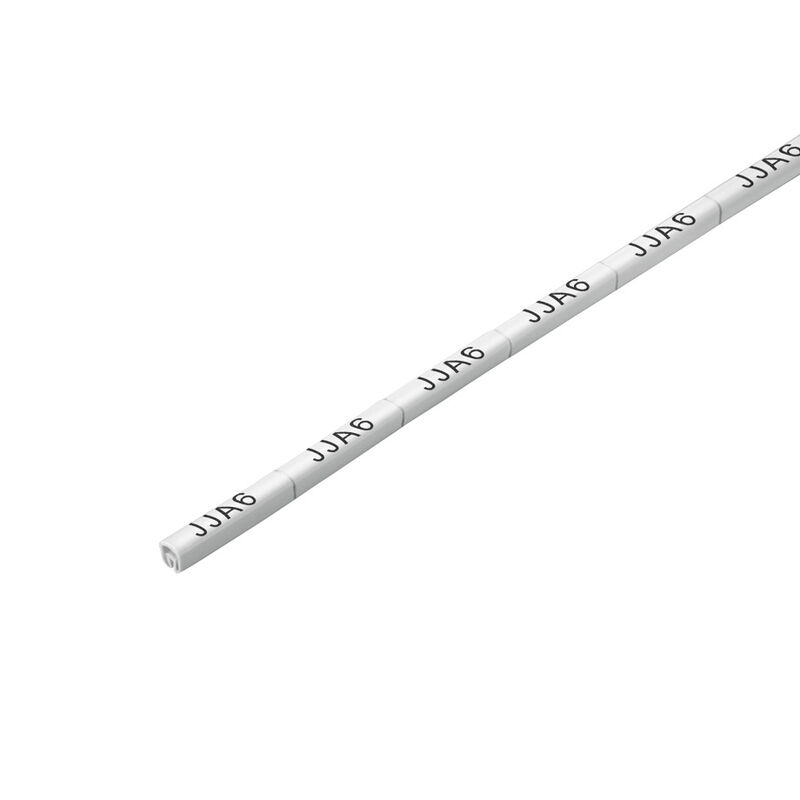

CableLine, Conductor and cable markers, 4 - 10 mm, 6 x 6.9 mm, To customer specification

Product ID 1871909999
Gegevensblad downloaden Productdownloads Engineeringondersteuning
Verwante producten 14
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Versione
CableLine, Conductor and cable markers, 4 - 10 mm, 6 x 6.9 mm, To customer specification
Référence
1871909999
種別
CLI C 2-6 SDR CD
GTIN (EAN)
4032248457564
Qty.
125 items

Dimensions and weights

Profondità
8 mm
Depth (inches)
0,315 inch
高さ
6 mm
Height (inches)
0,236 inch
Larghezza
6.9 mm
Width (inches)
0,272 inch
Net weight
0.34 g

Temperatures

Zakres temperatury stosowania
-30...80 °C

Environmental Product Compliance

Status zgodności z dyrektywą RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Basic material
PVC, soft, without Cadmium
Colour
To customer specification
Colour of printing
black
Halogen
Yes
Imprint
Custom printing
Operating temperature range
-30...80 °C
Operating temperature range, max.
80 °C
Operating temperature range, min.
-30 °C
Orientation of print
horizontal
Printed characters
To customer specification
Printing method
Ink jet technology
Type of printing
To customer specification
UL 94 flammability rating
V-0
Version
CD
Width
6.9 mm

Conductor and cable markers

Conductor cross-section, max.
16 mm²
Conductor O.D.
4 - 10 mm
Conductor O.D., min.
4 mm
Cross-section for connected wire
2.5 - 16 mm²
Halogen
Yes
最大电缆外径
10 mm
最小压接面积
2.5 mm²

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
