DRR373615L
D-SERIES DRR, Relay, Number of contacts: 3, CO contact AgSnO, Rated control voltage: 115 V AC, Continuous current: 10 A, Plug-in connection, Test button available: No
Ürün No.
2765350000
Özellikler
| Version | D-SERIES DRR, Relay, Number of contacts: 3, CO contact AgSnO, Rated control voltage: 115 V AC, Continuous current: 10 A, Plug-in connection, Test button available: No |
| Order No. | 2765350000 |
| Type | DRR373615L |
| GTIN (EAN) | 4064675076841 |
| Qty. | 10 adet |
| Depth | 66 mm |
| Depth (inches) | 2,598 inch |
| Height | 34,5 mm |
| Height (inches) | 1,358 inch |
| Width | 34,5 mm |
| Width (inches) | 1,358 inch |
| Net weight | 87,6 g |
| Storage temperature | -25 °C...55 °C |
| Operating temperature | -25 °C...55 °C |
| Humidity | 5...85 % rel. humidity, no condensation |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Certificate No. (cURus) | E312083 |
| Rated control voltage | 115 V AC |
| Rated current AC |
29.8 mA (50 Hz)
25.4 mA (60 Hz) |

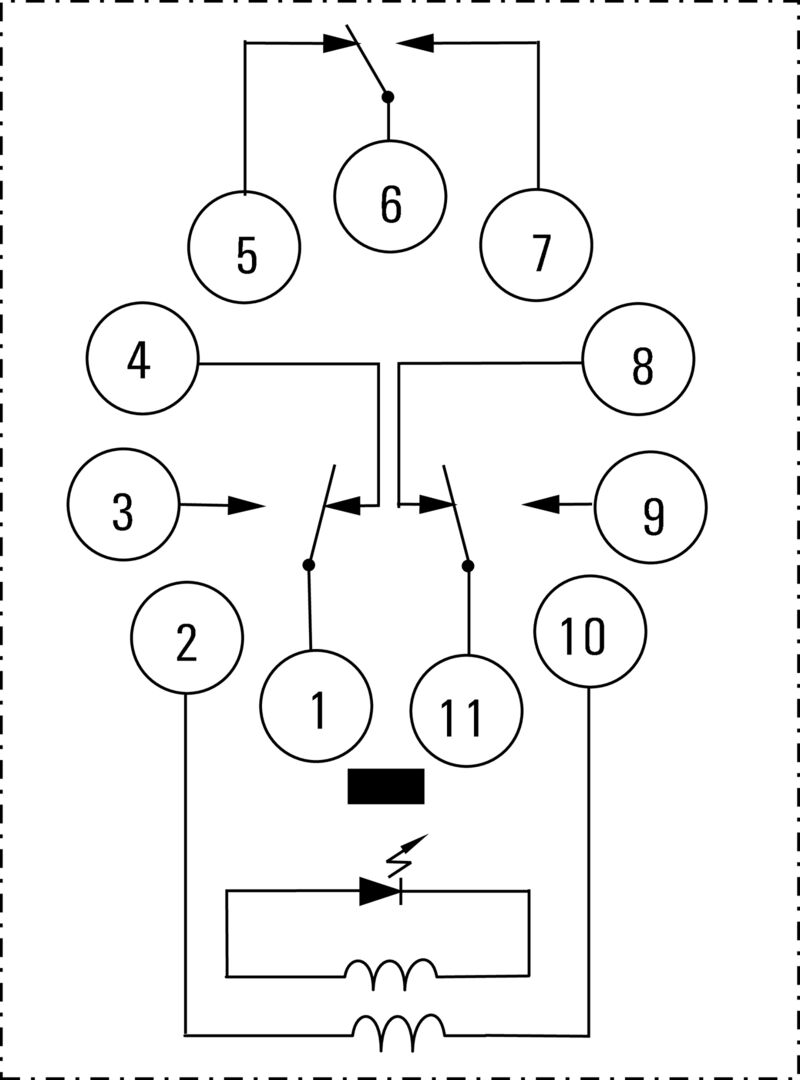

| Power rating | 2.7 VA |
| Coil resistance | 1250 Ω ± 10 % |
| Status indicator | red LED |
| Rated switching voltage | 250 V AC |
| Continuous current | 10 A |
| Max. switching frequency at rated load | 0,1 Hz |
| Max. switching voltage, AC | 250 V |
| Min. switching power | 10 mA @ 12 V |
| Inrush current | 50 A / 50 ms |
| AC switching capacity (resistive), max. | 2500 VA |
| DC switching capacity (resistive), max. | 240 W @ 24 V |
| Switch-on delay | <30 ms |
| Switch-off delay | <20 ms |
| Contact type | 3 CO contact (AgSnO) |
| Mechanical service life | 10 x 106 switching cycles |
| Test button available | No |
| Mechanical switch position indicator | Yes |
| Colour | Transparent |
| UL94 flammability rating component |
|
| Rated voltage | 250 V |
| Pollution severity | 3 |
| Surge voltage category | III |
| Insulating material group | IIIa |
| Clearance and creepage distances for control side - load side | ≥ 3 mm |
| Dielectric strength for control side - load side | 2.5 kVeff / 1 Min. |
| Dielectric strength of neighbouring contacts | 2.5 kVeff / 1 Min. |
| Dielectric strength of open contact | 1.2 kVeff /1 min. |
| Impulse withstand voltage | 4 kV (1.2/50 µs) |
| Protection degree | IP20 |
| Certificate No. (cURus) | E312083 |
| Wire connection method | Plug-in connection |
| Approval/Certificate/Document of Conformity | [EU Konformitätserklärung / EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35453) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_188366) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2765350000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2765350000) |
| User Documentation | [FL_D-SERIES_DRR3CO_LOAD_GUIDE](https://mdcop.weidmueller.com/mediadelivery/asset/900_306033) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001437 |
| ETIM 7.0 | EC001437 |
| ETIM 8.0 | EC001437 |
| ETIM 9.0 | EC001437 |
| ECLASS 9.0 | 27-37-16-01 |
| ECLASS 9.1 | 27-37-16-01 |
| ECLASS 10.0 | 27-37-16-01 |
| ECLASS 11.0 | 27-37-16-01 |
| ECLASS 12.0 | 27-37-16-01 |
| ECLASS 13.0 | 27-37-16-01 |
| ECLASS 14.0 | 27-37-16-01 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E312083 |
