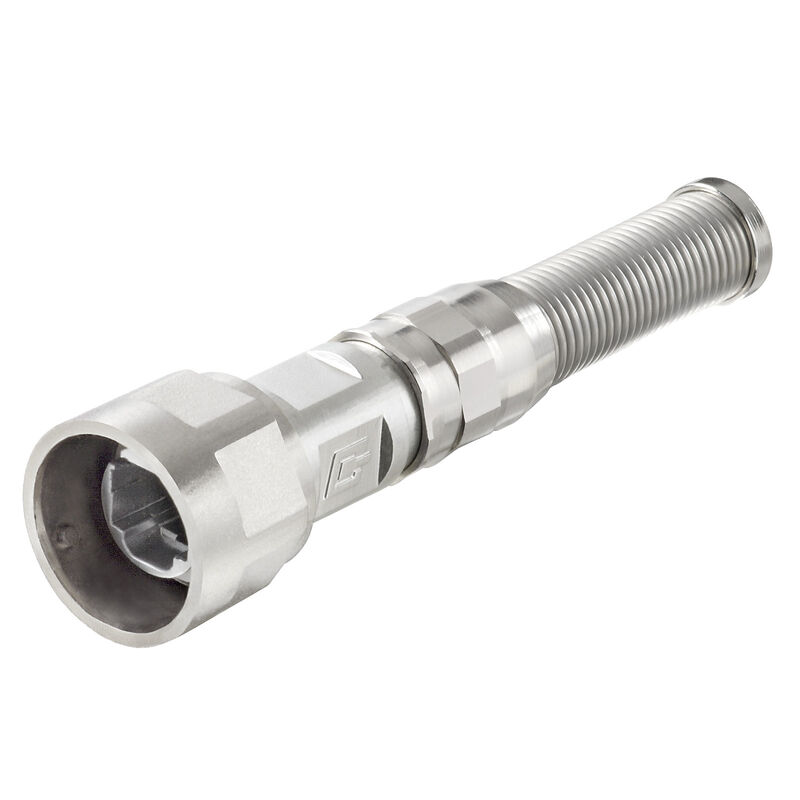

IE-PH-V01M-BP
IE-PH-V01M-BP

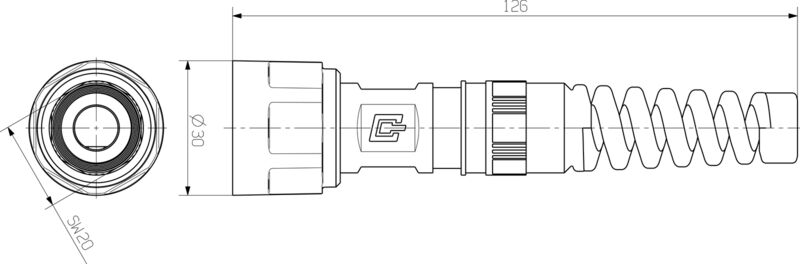

Dimensioned drawing

IE-PH-V01M-BP

Empty enclosure, Plug housing, bending protection, Variant 1 to IEC 61076-3-106, IP67

Item No. 1962560000
Download data sheet Engineering Support Product Downloads
Accessories 7 Related products 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data General standards Classifications

Approvals

ROHS
Conform

General ordering data

Version
Empty enclosure, Plug housing, bending protection, Variant 1 to IEC 61076-3-106, IP67
Order No.
1962560000
Type
IE-PH-V01M-BP
GTIN (EAN)
4032248644698
Qty.
10 items

Dimensions and weights

Depth
126 mm
Depth (inches)
4,961 inch
Height
30 mm
Height (inches)
1,181 inch
Width
30 mm
Width (inches)
1,181 inch
Net weight
128,24 g

Temperatures

Operating temperature
-40 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol 119-47-1
SCIP
e5bbf197-73b5-420b-90c0-0173b7b3b6b7

General data

IP67
Ház fő anyaga
Zinc diecast
Szín
Miscellaneous
플러그 주기
750

General standards

Csatlakozó, standard
IEC 61076-3-106 Var. 1

Classifications

ETIM 8.0
EC001031
ETIM 9.0
EC001031
ETIM 10.0
EC001031
ECLASS 14.0
27-19-01-04
ECLASS 15.0
27-19-01-04
