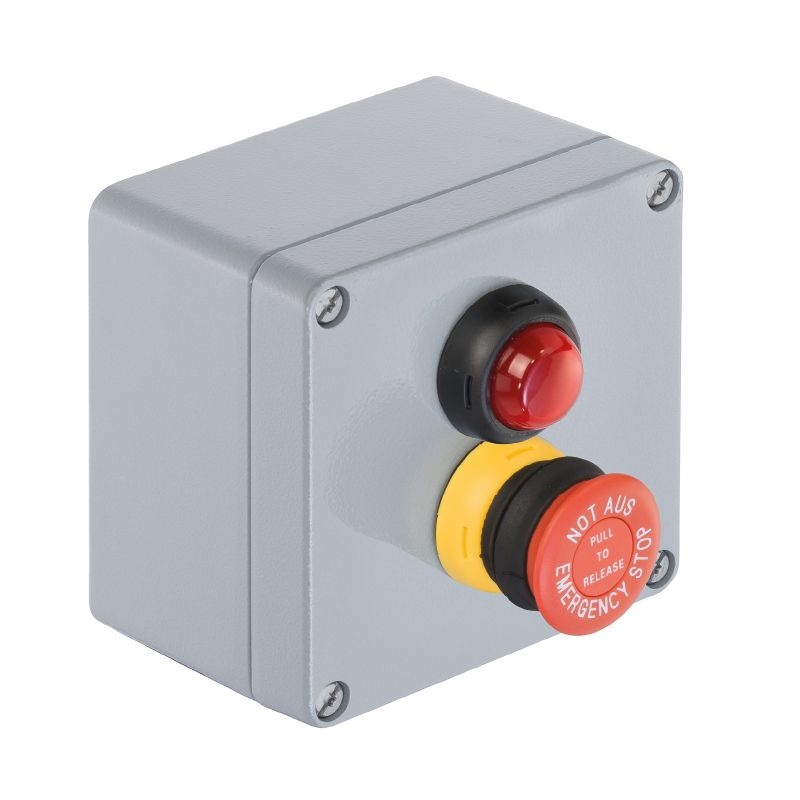

Klippon Control Station (control and signalling device), Control / signalling device, KLIPPON K41 EX Aluminium AlSi12, Light module - red, EMERGENCY-STOP pushbutton with yellow, contrasting label, 2 NC contact, positive opening contacts, -55 °C…55 °C, IP54, IP66

Ürün No. 1537530000
Veri sayfasını indir Product Downloads Engineering Support
Aksesuarlar 1 İlgili ürünler 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Certificate numbers enclosure General information Material data General data Housing Standard features Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319240/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319213/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Klippon Control Station (control and signalling device), Control / signalling device, KLIPPON K41 EX Aluminium AlSi12, Light module - red, EMERGENCY-STOP pushbutton with yellow, contrasting label, 2 NC contact, positive opening contacts, -55 °C…55 °C, IP54, IP66
Order No.
1537530000
Type
KLIPPON CS K41-4
GTIN (EAN)
4050118341560
Qty.
1  adet
Delivery status
This article will no longer be available in the future.
Available until
31.08.2024

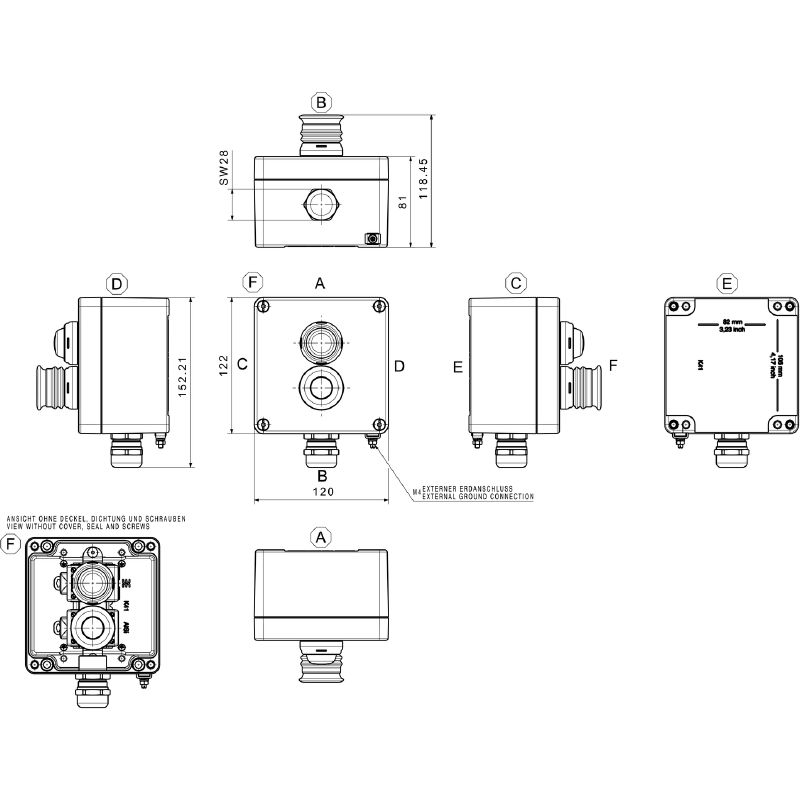

Dimensions and weights

Depth
81  mm
Depth (inches)
3,189  inch
Depth with add-on components
119  mm
Height
122  mm
Height (inches)
4,803  inch
Width
120  mm
Width (inches)
4,724  inch
Net weight
1.335  g

Temperatures

Ambient temperature
-55 °C…55 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
9e4cab4e-239c-4e14-b9df-a0fee300d28a

Certificate numbers enclosure

Certificate No. (ATEX)
TUEV14ATEX7606X
Certificate No. (IECEX)
IECEXITA14.0013X
Certificate no. Terminal Box (ATEX)
TÜV 14 ATEX 7606 X
Certificate no. Terminal Box (IECEx)
IECEx ITA 14.0013X
Certificate no. Terminal Box (INMETRO)
LMP 21.0019X

General information

1 Position in enclosure
Light module - red
2 Position in enclosure
EMERGENCY-STOP pushbutton with yellow, contrasting label
Contact design
2 NC contact
positive opening contacts
Operating voltage, max.
250 V
Operating current at 40°C ambient temperature, max.
1.5 mm² - T6 10 A
1.5 mm² - T5 16 A
2.5 mm² - T6 16 A
Operating current at 55°C ambient temperature, max.
1.5 mm² - T4 16 A
1.5 mm² - T5 10 A
2.5 mm² - T5 16 A
Actuators
EMERGENCY STOP pushbutton
Actuator colour
red
Drill holes side B
1 x M25
Lid attachment
Torx®-20 slothead screws
Seal material of operating and display elements
EPDM
Enclosure seal material
Silicone (VMQ)
Torque for lid screws
2,5  Nm
Earth stud torque
2,5  Nm
External earth
M4 earthing studs, stainless steel
Internal earth
Earth terminal
Marking
II 2 G Ex d e IIC T* Gb
II 2 D Ex tb IIIC T*°C Db
Cable gland clamping area, max.
18  mm
Cable gland clamping area, min.
10  mm
Wire connection cross section, finely stranded, max.
2,5  mm²
Type of mounting
Wall mounting
Surface finish
Powder-coated
Impact resistance
4 joules in acc. with IEC60079-0
Temperature class
T4
T5
T6
Basic material
Aluminium AlSi12

Material data

Basic material
Aluminium AlSi12
Surface finish
Powder-coated

General data

Colour
Silver grey
Colour chart (similar)
RAL 7001
Protection degree
IP54
IP66

Housing

Basic material
Aluminium AlSi12
Drill holes side B
1 x M25

Standard features

Version
Ex-approved housing solutions with control and display elements

Classifications

ETIM 6.0
EC002503
ETIM 7.0
EC002503
ETIM 8.0
EC002503
ETIM 9.0
EC002503
ETIM 10.0
EC002503
ECLASS 9.0
27-18-05-02
ECLASS 9.1
27-18-05-90
ECLASS 10.0
27-18-05-02
ECLASS 11.0
27-18-05-02
ECLASS 12.0
27-18-05-02
ECLASS 13.0
27-18-05-02
ECLASS 14.0
27-18-05-02
ECLASS 15.0
27-18-05-02
