MCZ O TRAK 24.110VDC
MCZ-SERIES TRAK, Solid-state relay, Rated control voltage: 24...110 V DC -30 / +25 % , Rated switching voltage: 5...137.5 V DC, Continuous current: 250 mA @ 50 °C, Tension-clamp connection
Özellikler
| Version | MCZ-SERIES TRAK, Solid-state relay, Rated control voltage: 24...110 V DC -30 / +25 % , Rated switching voltage: 5...137.5 V DC, Continuous current: 250 mA @ 50 °C, Tension-clamp connection |
| Order No. | 8820710000 |
| Type | MCZ O TRAK 24.110VDC |
| GTIN (EAN) | 4032248522231 |
| Qty. | 10 adet |
| Depth | 63,2 mm |
| Depth (inches) | 2,488 inch |
| Height | 91 mm |
| Height (inches) | 3,583 inch |
| Width | 6,1 mm |
| Width (inches) | 0,24 inch |
| Net weight | 23,9 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -25 °C...70 °C |
| Humidity | 95 % for 30 days, minimal condensation to EN 50155 |
| MTTF | 1.943 a |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 35d83707-6a3b-45b5-b9f8-6ba8184c863e |
| Rated control voltage | 24...110 V DC -30 / +25 % |
| Nominal control current | 2.8 mA DC |
| Status indicator | Green LED |
| Protective circuit | Reverse polarity protection |
| Input frequency | 10 Hz |
| Rated switching voltage | 5...137.5 V DC |

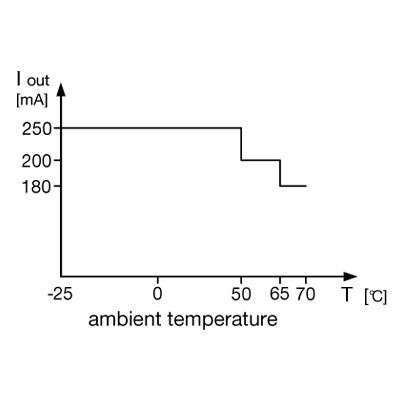

| Continuous current | 0.25 A @ 50 °C |
| Rated switching current | 250 mA @ 50 °C |
| Max. switching voltage, AC | 250 V |
| Switch-on delay | ≤ 10 ms |
| Switch-off delay | ≤ 50 ms |
| Voltage drop at max. load | ≤ 1.7 V |
| Short-circuit-proof | No |
| Protective circuit, load side |
Varistor
Free-wheeling diode |
| Contact type | 1 NO contact (Transistor) |
| max. switching frequency (DC control voltage) | 10 Hz |
| Version | for railway applications |
| Rail | TS 35 |
| Test button available | No |
| Colour | beige |
| UL94 flammability rating component |
|
| Rated voltage | 300 V |
| Pollution severity | 2 |
| Surge voltage category | III |
| Clearance and creepage distances for control side - load side | ≥ 5.5 mm |
| Dielectric strength for control side - load side | 1 kVeff / 1 s |
| Dielectric strength to mounting rail | 4 kVeff / 1 Min. |
| Impulse withstand voltage | 6 kV (1.2/50 µs) |
| Protection degree | IP20 |
| Wire connection method | Tension-clamp connection |
| Stripping length, rated connection | 8 mm |
| Clamping range, rated connection | 1,5 mm² |
| Clamping range, min. | 0,5 mm² |
| Clamping range, max. | 1,5 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section AWG, max. | AWG 16 |
| Wire cross-section, solid, min. | 0,5 mm² |
| Wire cross-section, solid, max. | 1,5 mm² |
| Wire cross-section, solid, min. (AWG) | AWG 26 |
| Wire cross-section, solid, max. (AWG) | AWG 16 |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross section, finely stranded, max. | 1,5 mm² |
| Wire cross-section, finely stranded, min. (AWG) | AWG 26 |
| Wire cross-section, finely stranded, max. (AWG) | AWG 16 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1,5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0,5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 1,5 mm² |
| Blade size | 0.6 x 3.5 mm |
| Approval/Certificate/Document of Conformity |
[EU Konformitätserklärung / EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35554)
[Confirmation of Standards EN 45545](https://mdcop.weidmueller.com/mediadelivery/asset/900_319015) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_55122) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.8820710000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8820710000) |
| User Documentation | [Device description -- Beipackzettel / Package Insert – multilingual](https://mdcop.weidmueller.com/mediadelivery/asset/900_38788) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001504 |
| ETIM 7.0 | EC001504 |
| ETIM 8.0 | EC001504 |
| ETIM 9.0 | EC001504 |
| ECLASS 9.0 | 27-37-16-04 |
| ECLASS 9.1 | 27-37-16-04 |
| ECLASS 10.0 | 27-37-16-04 |
| ECLASS 11.0 | 27-37-16-04 |
| ECLASS 12.0 | 27-37-16-04 |
| ECLASS 13.0 | 27-37-16-04 |
| ECLASS 14.0 | 27-37-16-04 |
| Approvals |   |
| ROHS | Conform |
