THM EL 30 WS 30M

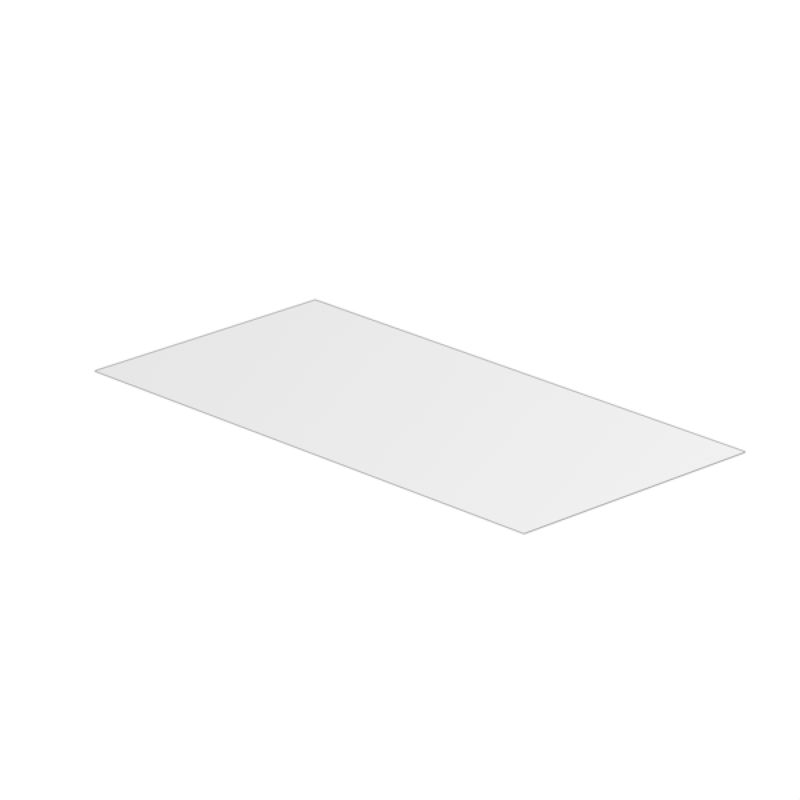

Similar to illustration
THM EL 30 WS 30M
THM EL 30 WS 30M

THM EL 30 WS 30M

THM, Device markers, 30 x , white

Produkt ID 1517180000
Download datablad Engineering-support Produktdownloads
Tilbehør 1 Anvendte produkter 8
Homologaciones General ordering data Dimensions and weights Temperaturas Environmental Product Compliance General data Device markers Clasificaciones

Homologaciones

ROHS
Conformidad

General ordering data

Version
THM, Device markers, 30 x , white
Order No.
1517180000
Type
THM EL 30 WS 30M
GTIN (EAN)
4050118325010
Cantidad
1

Dimensions and weights

Depth
0,08 mm
Depth (inches)
0,003 inch
Height
30 mm
Altura (pulgadas)
1,181 inch
Length
30.000 mm
Longitud (pulgadas)
1.181,1 inch
Net weight
152 g

Temperaturas

Operating temperature range
-40...150 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Sin SVHC por encima del 0,1 % en peso

General data

Adhesive
Acrylate adhesive
Approval acc. to UL 969
Yes
Basic material
Polyester
Colour
white
compatible printer
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
Halogen
No
Length
30.000 mm
Material colour according to resistance code
9
Number of markers per combination
1 Label reel = Device markers
Number of markers per packaging unit
  • Form of supply:
    Label reel
Number per roll
1
Number per sheet
1
Operating temperature range
-40...150 °C
Operating temperature range, max.
150 °C
Operating temperature range, min.
-40 °C
Printed characters
without
Printing method
Thermotransfer
UL 94 flammability rating
V-0
Version
Endless
Self-adhesive

Device markers

Halogen
No

Clasificaciones

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
