Özellikler
| Version | TM, Socket x 14 mm, PVC, Colour: Transparent, Conductor O.D.: 10 - 14 mm |
| Order No. | 1806190000 |

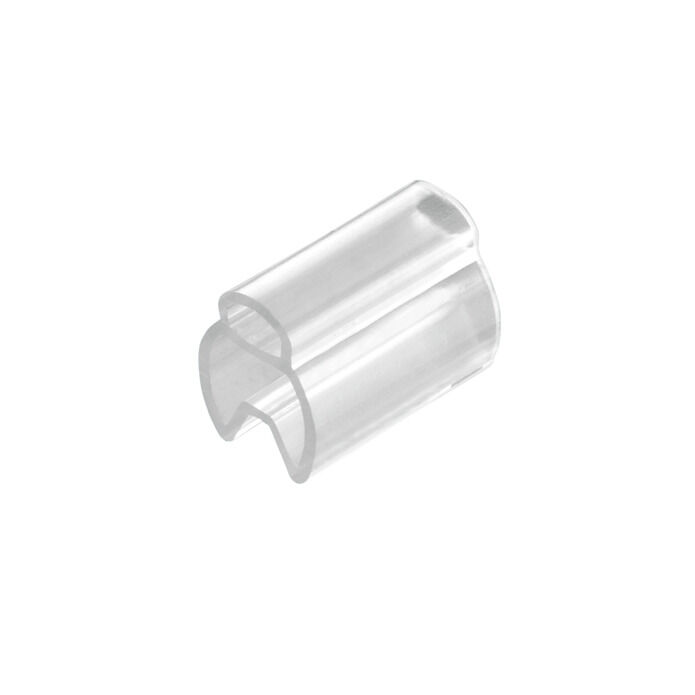

| Type | TM 205/12 V0 |
| GTIN (EAN) | 4032248275700 |
| Qty. | 200 adet |
| Depth | 14 mm |
| Depth (inches) | 0,551 inch |
| Height | 12 mm |
| Height (inches) | 0,472 inch |
| Width | 14 mm |
| Width (inches) | 0,551 inch |
| Net weight | 0,83 g |
| Operating temperature range | -40...80 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | Transparent |
| Material | PVC |
| Operating temperature range | -40...80 °C |
| Operating temperature range, max. | 80 °C |
| Operating temperature range, min. | -40 °C |
| Recommended industries |
Transportation
Machinery |
| Type of printing | neutral |
| UL 94 flammability rating | V-0 |
| Width | 14 mm |
| Conductor cross-section, max. | 35 mm² |
| Conductor cross-section, min. | 16 mm² |
| Conductor O.D. | 10 - 14 mm |
| Conductor O.D., max. | 14 mm |
| Conductor O.D., min. | 10 mm |
| Cross-section for connected wire | 16 - 35 mm² |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_63992) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1806190000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1806190000) |
| Product Change Notification |
[PCN Transparent Sleeves_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_49689)
[PCN Transparent Sleeves_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_49690) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
