Özellikler
| Order No. | 2669240000 |
| Type | WIL-LWXXXX-6500D024-240MFX1.5BM12GXXXX |
| GTIN (EAN) | 4050118682601 |
| Qty. | 1 adet |
| Depth | 40 mm |
| Depth (inches) | 1,575 inch |
| Height | 9,5 mm |
| Height (inches) | 0,374 inch |
| Width | 240 mm |
| Width (inches) | 9,449 inch |
| Net weight | 150 g |
| Operating temperature | -20 - 60°C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | bf1e8170-69bb-4440-b3e0-4da351a9a3b0 |
| EPREL Registration number | 1410078 |
| Cable Material | PUR |
| Sheathing colour | black |
| Cable length | 1,5 m |
| Core cross-section | 0,34 mm² |
| Version | pin, straight |
| Connection thread | M12 |
| Coding | A-coded |
| Tightening torque | 0,8 Nm |
| Wiring | Pin 4 (Strand: black) control white LED, Pin 3 (Strand: blue) |
| Rated voltage | 24 V DC |
| Rated current | 0.31 A |
| Power | 7.5 W |
| Dimmable | Yes |
| Electronic equipment on rolling stock | No |
| Recommended class according to UL for use of an power supply | NEC Class 2 |
| Shape of the LED module | Rectangular |
| Type of connection | Pre-assembled cable |
| Number of LEDs | 42 |
| Light colour (CCT) |
6500K
White |
| Luminosity | 3.470 cd |
| Light current | 711 lm |
| Emitting angle | 40 ° |
| Illumination level | 246 lux |
| Operating life | 60.000 h |
| Type of mounting |
Screw mounting
Magnet |

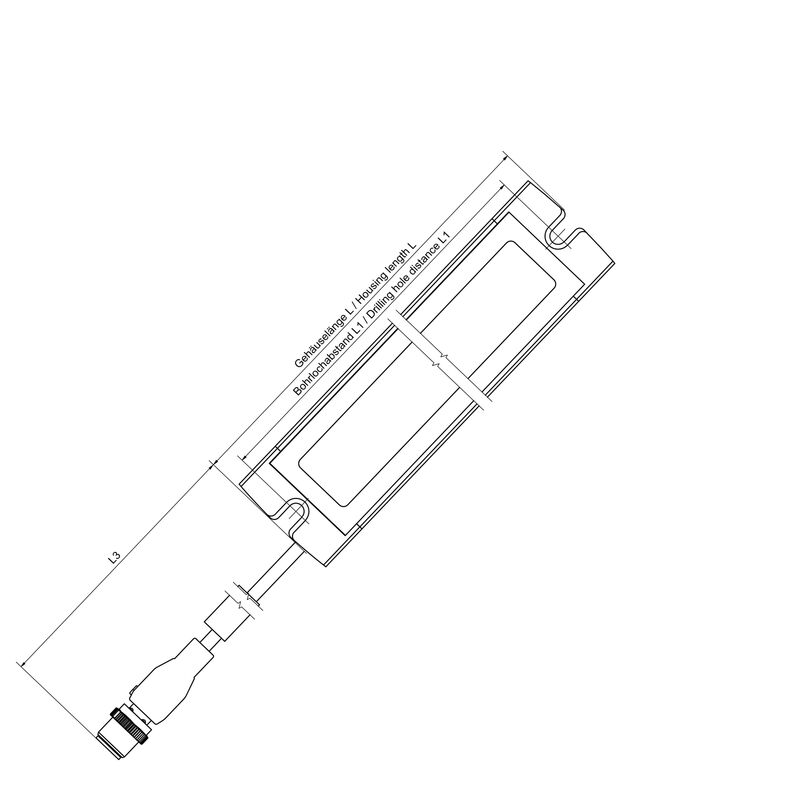

| Drill hole spacing | 225 mm |
| Impact resistance | IK05 |
| Protection degree | IP67 |
| Efficiency class (according to EU Directive No. 874/2012) | F |
| Housing main material | hard anodised aluminium |
| Encapsulation compound | PUR V0 |
| Threaded ring material | PA |
| Material of end caps |
Diecast zinc
nickel-plated |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_94008) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2669240000) |
| User Documentation | [Designation key WIL](https://mdcop.weidmueller.com/mediadelivery/asset/900_188431) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000996 |
| ETIM 7.0 | EC000996 |
| ETIM 8.0 | EC000996 |
| ETIM 9.0 | EC000996 |
| ECLASS 9.1 | 27-11-06-35 |
| ECLASS 10.0 | 27-11-06-35 |
| ECLASS 11.0 | 27-11-06-35 |
| ECLASS 12.0 | 27-11-06-35 |
| ECLASS 13.0 | 27-11-06-35 |
| ECLASS 14.0 | 27-11-06-35 |
| Approvals |  |
| ROHS | Conform |
