Özellikler

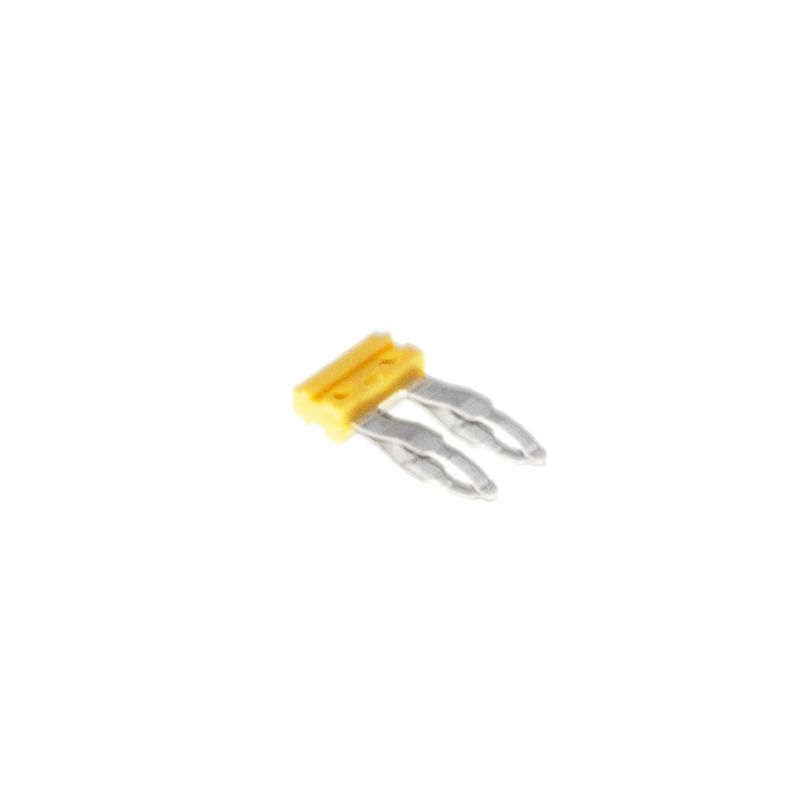

Version | Accessories, Cross-connector, 17.5 A |
Order No. | 1754210000 |
Type | ZQV 1.5N/R3.5/2 GE |
GTIN (EAN) | 4032248027422 |
Qty. | 50 adet |
Depth | 12,15 mm |
Depth (inches) | 0,478 inch |
Height | 6,1 mm |
Height (inches) | 0,24 inch |
Width | 2,4 mm |
Width (inches) | 0,094 inch |
Net weight | 0,484 g |
Storage temperature | -25 °C...55 °C |
Continuous operating temp., min. | -50 |
Continuous operating temp., max. | 120 |
RoHS Compliance Status | Compliant without exemption |
REACH SVHC | No SVHC above 0.1 wt% |
Material | Wemid |
Colour | yellow |
UL 94 flammability rating | V-0 |
Version | For the terminals |
Explosion-tested version | Yes |
Installation advice | Direct mounting |
Type of fixing | Plugged |
Number of cross-connected terminals | 2 |
Rated current, 2-pole | 17,5 A |
Rated current, multi-pole | 17,5 A |
Type | Cross-connector |
Pitch in mm (P) | 3,5 mm |
Installation advice | Direct mounting |
Number of poles | 2 |
Rated current | 17,5 A |
Product information | Due to stability and temperature reasons It is only possible to break out 60% of contact elements The usage of cross connectors reduces the rated voltage to 400VThe voltage reduced to 25V if cut cross connection with blank cut edges are used |
