SPG 2.5 MI GN

SPG 2.5 MI GN

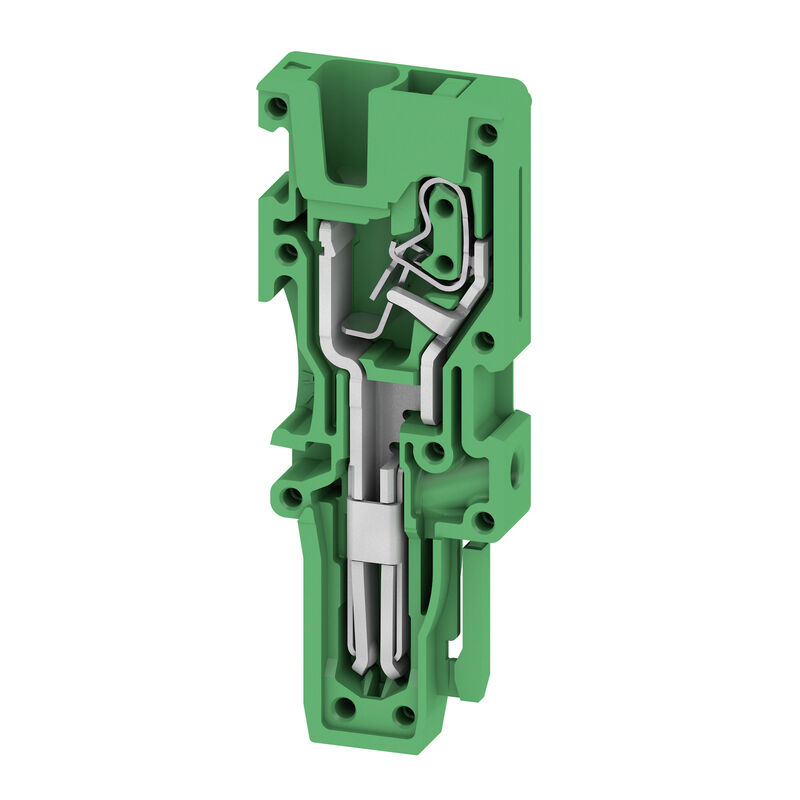

Plug (terminal), SNAP IN, 2.5 mm², 24 A, 800 V, Number of connections: 1, Number of poles: 1, Width: 5.1 mm

Ürün No. 3030220000
Veri sayfasını indir Engineering Support
Aksesuarlar 11 aksesuarıdır 5 İlgili ürünler 325
General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Conductors for clamping (rated connection) General Rating data Classifications

General ordering data

Version
Plug (terminal), SNAP IN, 2.5 mm², 24 A, 800 V, Number of connections: 1, Number of poles: 1, Width: 5.1 mm
Order No.
3030220000
Type
SPG 2.5 MI GN
GTIN (EAN)
4099986973244
Qty.
50 adet

Dimensions and weights

Depth
42,5 mm
Depth (inches)
1,673 inch
Height
16,5 mm
Height (inches)
0,65 inch
Width
5,1 mm
Width (inches)
0,201 inch
Net weight
1 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
green
Colour of operational elements
green
UL 94 flammability rating
V-0

System specifications

End cover plate required
Yes
Number of potentials
1
Number of levels
1

Conductors for clamping (rated connection)

2,5 mm²
Anschlussrichtung
top
Blade size
0.6 x 3.5 mm
Clamping range, min.
0,34 mm²
Connection cross-section, stranded, min.
0,34 mm²
Měřidlo podle IEC 60947-1
A3
Number of connections
1
Section de raccordement du conducteur, souple avec embout DIN 46228/4, max.
2,5 mm²
Sezione di collegamento cavo, flessibile, max.
2,5 mm²
Sezione di collegamento cavo, flessibile, min.
0,34 mm²
Stripping length
10 mm
Type of connection
SNAP IN
Vezeték csatlakozás keresztmetszet, finomsodratú, érvéghüvelyekkel DIN 46228/1, névleges csatlakozás, min.
0,34 mm²
Vezeték csatlakozási keresztmetszet, finomsodratú, érvéghüvelyekkel DIN 46228/1, névleges csatlakozás, max.
2,5 mm²
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 22
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,34 mm²
Wire connection cross-section, solid core, max.
2,5 mm²
Сечение соединения проводов, твердое ядро, мин.
0,34 mm²
결선 단면적, 꼬임, 최대
2,5 mm²

General

Number of poles
1
Standards
In accordance with IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 22

Rating data

Rated cross-section
2,5 mm²
Rated voltage
800 V
Rated DC voltage
800 V
Nominal current
24 A
Current at maximum wires
24 A
Standards
In accordance with IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
1,33 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
0,77 mW
Pollution severity
3
Surge voltage category
III

Classifications

ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 14.0
27-25-03-90
ECLASS 15.0
27-25-03-90
