SV-SMT 7.62HP/05/270MSF4 SC/4 2.6SN BX

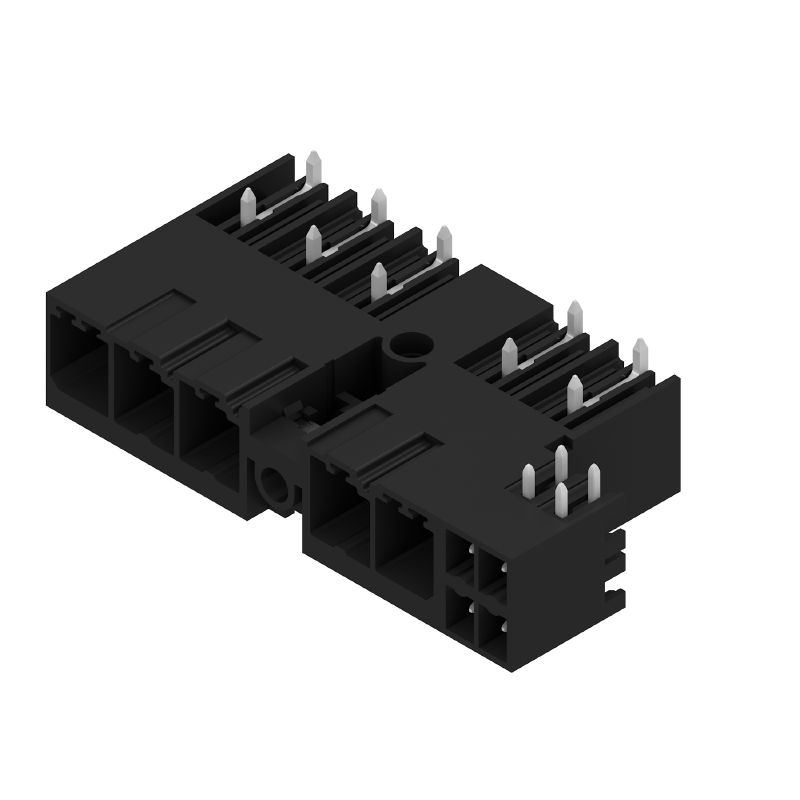

Product image
SV-SMT 7.62HP/05/270MSF4 SC/4 2.6SN BX
Product image
SV-SMT 7.62HP/05/270MSF4 SC/4 2.6SN BX
Dimensional drawing

SV-SMT 7.62HP/05/270MSF4 SC/4 2.6SN BX

Tämä tuote ei ole enää saatavana.

PCB plug-in connector, male header, closed side, Middle screw flange, THT/THR solder connection, 7.62 mm, Number of poles: 5, 270°, Solder pin length (l): 2.6 mm, tinned, black, Box

Tuotteen tunnus 2529690000
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 1 On vastine kohteelle 2 Samankaltaiset tuotteet 2
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to UL 1059 Packing Technical data - hybrid Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Nr certyfikatu (cURus)
E60693

General ordering data

Version
PCB plug-in connector, male header, closed side, Middle screw flange, THT/THR solder connection, 7.62 mm, Number of poles: 5, 270°, Solder pin length (l): 2.6 mm, tinned, black, Box
Order No.
2529690000
Type
SV-SMT 7.62HP/05/270MSF4 SC/4 2.6SN BX
GTIN (EAN)
4050118539967
Qty.
30 items
Product data
IEC: 1000 V / 41 A
UL: 300 V / 33 A
Packaging
Box
Status dostawy
This article will no longer be available in the future.
Last order date
/Date(1806444000000)/

Dimensions and weights

Depth
28,3 mm
Głębokość (cale)
1,114 inch
Height
14 mm
Высота (в дюймах)
0,551 inch
Height of lowest version
11,4 mm
Width
54,31 mm
Width (inches)
2,138 inch
Masa netto
8,35 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Famiglia prodotti
OMNIMATE Power - series BV/SV 7.62HP
Tipo di collegamento
Board connection
Montaggio su circuito stampato
THT/THR solder connection
Pitch in mm (P)
7,62 mm
Passo in pollici (P)
0,3 "
Outgoing elbow
270°
극 수
5
폴당 용접 핀 수
2
Lunghezza spina a saldare (l)
2,6 mm
Wymiary kołka lutowniczego
0.8 x 1.0 mm
Solder eyelet hole diameter (D)
1,4 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
38,1 mm
L1 in inches
1,5 "
L2 in mm
3,81 mm
L2 in inch
0,15 "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
safe to back of hand above the printed circuit board
Touch-safe protection acc. to DIN VDE 0470
IP 20
Volume resistance
2.00 mΩ
Can be coded
Yes
Tightening torque for screw flange, min.
0,2 Nm
Tightening torque for screw flange, max.
0,3 Nm
Plugging force/pole, max.
12 N
Pulling force/pole, max.
7 N

Material data

Materiał izolacyjny
PA 9T
Barwny
black
Tabela kolorów (podobny)
RAL 9011
grupa materiałów izolacyjnych
I
CTI (Comparative Tracking Index)
≥ 600
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Materiał styków
Cu-alloy
Powierzchnia styku
tinned
Layer structure of solder connection
1...3 µm Ni / 4...6 µm Sn matt
Layer structure of plug contact
1...3 µm Ni / 4...6 µm Sn matt
Storage temperature, min.
−40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
130 °C
Temperature range, installation, min.
−25 °C
Temperature range, installation, max.
130 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Prąd znamionowy, min. liczba biegunów (Tu=20°C)
41 A
Prąd znamionowy, maks. liczba biegunów (Tu=20°C)
41 A
Prąd znamionowy, min. liczba biegunów (Tu=40°C)
41 A
Prąd znamionowy, maks. liczba biegunów (Tu=40°C)
41 A
napięcie znamionowe przy kat. przepięć/stopniu zanieczyszczenia II/2
1 000 V
napięcie znamionowe przy kat. przepięć/stopniu zanieczyszczenia III/2
630 V
napięcie znamionowe przy kat. przepięć/stopniu zanieczyszczenia III/3
630 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
6 kV
znamionowe napięcie udarowe przy kat. przepięć/stopniu zanieczyszczenia III/2
6 kV
znamionowe napięcie udarowe przy kat. przepięć/stopniu zanieczyszczenia III/3
6 kV
odporność na zwarcia
3 x 1s with 420 A

Rated data acc. to UL 1059

Intézet (cURus)
CURUS
N° certificato (cURus)
E60693
정격 전압(사용 그룹 B / UL 1059)
300 V
정격 전압(사용 그룹 C / UL 1059)
300 V
Tensione nominale (Gruppo D / UL 1059)
600 V
Corrente nominale (Gruppo B / UL 1059)
33 A
Corrente nominale (Gruppo C / UL 1059)
33 A
Rated current (Use group D / UL 1059)
5 A
Ligne de fuite, min.
9,6 mm
Ligne d’air, min.
6,9 mm
Référence aux valeurs approuvées
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
338 mm
VPE width
130 mm
VPE height
33 mm

Technical data - hybrid

Pas en mm (hybride)
  • nominal:
    3,81 mm
  • Hybrid component:
    Signal
Raster w mm (Signal)
3.81 mm
Pas en pouces (hybride)
  • nominal:
    0,15 "
  • Hybrid component:
    Signal
Шаг в дюймах (сигнал)
0.15 "
Numero di poli (ibrido)
  • nominal:
    4
  • Hybrid component:
    Signal
Number of poles (Signal)
4
Количество выводов под пайку на контакт (гибридн.)
  • Hybrid component:
    Signal
  • nominal:
    1
Number of solder pins per pole (Signal)
1
Dimensioni del codolo a saldare (ibrido)
  • Solder pin dimensions:
    0.8 x 0.8 mm
  • Hybrid component:
    Signal
Solder pin dimensions (Signal)
0.8 x 0.8 mm
Dimensioner för lödstift = d-tolerans (hybrid)
  • Solder pin dimensions = d tolerance:
    • Lower tolerance with prefix (reveals minimum):
      -0,03
    • Upper tolerance with prefix (reveals maximum):
      +0,01
    • Tolerance, unit:
      mm
  • Hybrid component:
    Signal
Solder pin dimensions = d tolerance (Signal)
-0,03 / +0,01 mm
Diamètre du trou d'implantation (hybride)
  • Hybrid component:
    Signal
  • nominal:
    1,3 mm
PCB hole diameter (Signal)
1.3 mm
Tolerance of the diameter of the solder eyelet (hybrid)
  • Hybrid component:
    Signal
  • Solder eyelet hole diameter tolerance (D):
    ± 0.1 mm
  • Solder eyelet hole diameter tolerance (D):
    + 0,1 mm
PCB hole diameter tolerance (Signal)
± 0.1 mm
L2 in mm
3,81 mm
L2(인치)
0,15 "
Numero di file (ibrido)
  • Hybrid component:
    Signal
Number of rows (Signal)
2
Materiale dei contatti (ibrido)
  • Hybrid component:
    Signal
  • Contact material:
    CuMg
Contact material (Signal)
CuMg
Superficie dei contatti (ibrido)
  • Hybrid component:
    Signal
  • Contact surface:
    tinned
Contact surface (Signal)
tinned
용접 결선의 레이어 구조 (하이브리드)
  • Layer structure of the solder connection:
    • Material:
      Ni
    • Layer strength:
      • min.:
        1 µm
      • max.:
        3 µm
    • Material:
      Sn
    • Layer strength:
      • min.:
        4 µm
      • max.:
        8 µm
  • Hybrid component:
    Signal
Layer structure of the solder connection (Signal)
1-3 µm Ni / 4-8 µm Sn
Layer structure of the plug contact (hybrid)
  • Layer structure of the plug contact:
    • Material:
      Ni
    • Layer strength:
      • min.:
        1 µm
      • max.:
        3 µm
    • Material:
      Sn
    • Layer strength:
      • min.:
        4 µm
      • max.:
        8 µm
  • Hybrid component:
    Signal
Layer structure of the plug contact (Signal)
1-3 µm Ni / 4-8 µm Sn
Rated voltage for overvoltage class / pollution severity level II/2 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    320 V
Rated voltage for overvoltage class/pollution severity level II/2 (Signal)
320 V
Rated voltage for overvoltage class / pollution severity level III/2 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    160 V
Rated voltage for overvoltage class/pollution severity level III/2 (Signal)
160 V
Rated voltage for overvoltage class / pollution severity level III/3 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    160 V
Rated voltage for overvoltage class/pollution severity level III/3 (Signal)
160 V
Rated impulse voltage for overvoltage class / pollution severity level II/2 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    2,5 kV
Rated impulse voltage for overvoltage class/pollution severity level II/2 (Signal)
2.5 kV
Rated impulse voltage for overvoltage class / pollution severity level III/2 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    2,5 kV
Rated impulse voltage for overvoltage class/pollution severity level III/2 (Signal)
2.5 kV
Rated impulse voltage for overvoltage class / pollution severity level III/3 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    2,5 kV
Rated impulse voltage for overvoltage class/pollution severity level III/3 (Signal)
2.5 kV
Short-time withstand current capacity (hybrid)
  • Short-time withstand current resistance:
    3 x 1s with 80 A
  • Hybrid component:
    Signal
Short-time withstand current resistance (Signal)
3 x 1s with 80 A
Creepage distance (hybrid)
  • Hybrid component:
    Signal
  • min.:
    4,38 mm
Clearance distance (hybrid)
  • Hybrid component:
    Signal
  • min.:
    3,6 mm
Rated voltage (Use group B / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    300 V
Rated voltage (Use group B / CSA) (Signal)
300 V
Rated voltage (Use group C / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    50 V
Rated voltage (Use group C / CSA) (Signal)
50 V
Rated current (Use group B / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    9 A
Rated current (Use group B / CSA) (Signal)
9 A
Rated current (Use group C / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    9 A
Rated current (Use group C / CSA) (Signal)
9 A
Rated current (Use group D / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    9 A
Rated current (Use group D / CSA) (Signal)
9 A
Rated voltage (Use group B / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    300 V
Rated voltage (Use group B / UL 1059] (Signal)
300 V
Rated voltage (Use group C / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    50 V
Rated voltage (Use group C / UL 1059] (Signal)
50 V
Rated voltage (Use group D / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    300 V
Rated voltage (Use group D / UL 1059] (Signal)
300 V
Rated current (Use group B / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    5 A
Rated current (Use group B / UL 1059) (Signal)
5 A
Rated current (Use group C / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    5 A
Rated current (Use group C / UL 1059) (Signal)
5 A
Rated current (Use group D / UL 1059) (Hybrid)
  • Hybrid component:
    Signal

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Technical specifications refer to the power contacts
  • Technical data of signal contacts: 50V / 5A, stripping length 8mm
  • Rated current related to rated cross-section & min. No. of poles.
  • Specifications of diagram: P1=7.62 mm; P2=3.81 mm
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • MFX and MSFX: X= Position of the middle flange e.g. MF2, MSF3
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-03-01
ECLASS 15.0
27-46-03-01
