Wiring
IE-C5DD4UG0100MCSXXX-X Item No. 1025940100

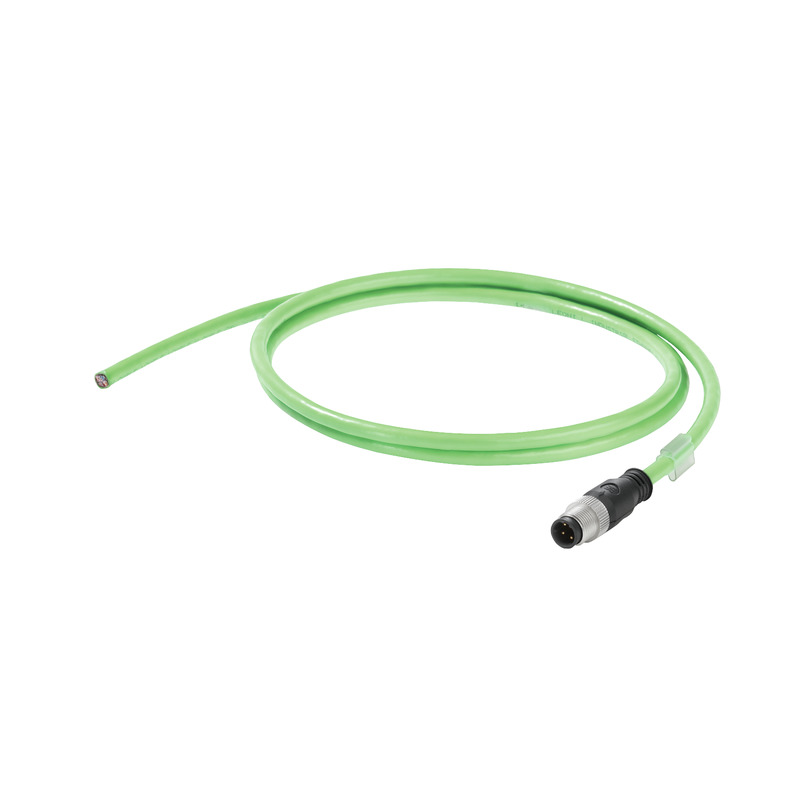

Dragline cable, PROFINET, M12 D-code – IP 67 straight pin, Open, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 10 m
Please note that any possible discounts or additional costs are not yet applied here. The definitive payment amounts will be shown in the cart.


Properties
Version | Dragline cable, PROFINET, M12 D-code – IP 67 straight pin, Open, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 10 m |
Order No. | 1025940100 |
Type | IE-C5DD4UG0100MCSXXX-X |
GTIN (EAN) | 4032248775705 |
Qty. | 1 ST |
Length | 10 m |
Length (inches) | 393.7007874 inch |
Net weight | 632 g |
Storage temperature | -50 °C...70 °C |
Operating temperature | -40 °C...70 °C |
Installation temperature | -20 °C...60 °C |
REACH SVHC | Lead 7439-92-1 |
Standard, insulating material | DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3) |
Standard, shielding material | DIN EN 13602 Cu-ETP-A..B |
Standard, wire material | DIN EN 13602 Cu-ETP-A |
Insulation strength | 500,000 Ω |
Operating voltage | 600 V |
Certificate no. (cULus) | E316369 |
Connector standard | IEC 61076-2-101 |
Connector standard | IEC 61076-2-101 |
Standard, insulating material | DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3) |
Standard, shielding material | DIN EN 13602 Cu-ETP-A..B |
Standard, wire material | DIN EN 13602 Cu-ETP-A |
Arrangement of wire cores | Star-quad |
Colour sequence or wires - wire pairs | white, yellow, blue, orange |
Complete shielding |
Aluminium foil
Shielding braid made from copper wiring |
Cross-section | 4*AWG 22/7 - 0.36 mm² |
Diameter of inner sheathing | 3.9 mm |
Filler | As central element |
Insulation | PE |
Insulation cross-section | 1.5 mm |
Material sheath | PUR |
Number of wires | 4 |
Overlap of shielding braid | 85 % |
Sheath diameter, max. | 6.7 mm |
Sheath diameter, min. | 6.3 mm |
Sheathing colour | green (RAL 6018) |
Sheathing material thickness | 0.9 mm |
Shielding | SF/UTP |
Shielding braid thickness | 0.13 mm |
Standard designations | 2YH(ST)C11Y 2x2x0,75/1,5-100 LI VZN GN FRNC |
Strands | 7 |
Wire core insulation thickness | 0.38 mm |
Wire material | Stranded tin-plated copper wire |
Capacity at 1 kHz | 52 nF/km |
Category | Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B) |
Characteristic impedance | 100 ± 15 Ω at 1–100 MHz |
Deviation | 40 ns/100m |
Insulation strength | 500,000 Ω |
Loop resistance | 120 Ω/km |
Operating voltage | 600 V |
Operating voltage (UL rating) | 600 V undefined |
Operating voltage, UL | 600 V |
Resistance differential | 3 % |
Signal propagation time | 5.3 ns/m |
Speed | 180 m/min |
Test voltage: wire-wire-shield | 2000 Veff, 50 Hz, 1 min |
Transfer impedance | 20 mΩ/m at 10 MHz |
Abrasion resistance | very good |
Acceleration | 4 m/s² |
Bending cycles | 3 Mio |
Fire propagation | No |
Halogen | halogen-free, according to IEC 60754-2 |
Min. bending radius, once only | 5 x cable diameter |
Min. bending radius, repetitive | 7.5 x cable diameter |
Pulling force | ≤ 150 N |
Resistance to oils | in accordance with IEC 60811-2-1 |
Resistance to spread of flame | in accordance with IEC 60332-1 |
Silicone-free | Yes |
Speed | 180 m/min |
UV-resistant | Yes |
Connector left | M12 D-code – IP 67 straight pin |
Connector right | Open |
Connector left | M12 D-code – IP 67 straight pin |
Connector right | Open |
Approval/Certificate/Document of Conformity | [PROFINET Manufacturer's Declaration](http://download.weidmueller.com/asset/download/file/67339) |
Brochure/Catalogue |
[CAT 9 IETH 18/19 EN](http://download.weidmueller.com/asset/download/file/85203)
[CAT 8 SAI 15/16 EN](http://download.weidmueller.com/asset/download/file/39480) [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
Engineering Data | [STEP](http://download.weidmueller.com/asset/download/file/152568) |
Engineering Data | [WSCAD](LINK/CAE_EN.html) |
User Documentation |
[MAN IE GUIDE DE](http://download.weidmueller.com/asset/download/file/40065)
[MAN IE GUIDE EN](http://download.weidmueller.com/asset/download/file/40066) |
ETIM 6.0 | EC002599 |
ETIM 7.0 | EC002599 |
eClass 9.0 | 27-06-03-08 |
eClass 9.1 | 27-06-03-08 |
eClass 10.0 | 27-06-03-08 |
eClass 11.0 | 27060308 |
Approvals |  |
ROHS | Conform |
UL File Number Search | [E316369](LINK/UL_search.html) |
