Properties
Version | Clamping yoke, Mounting screw, Steel |
Order No. | 0303000000 |

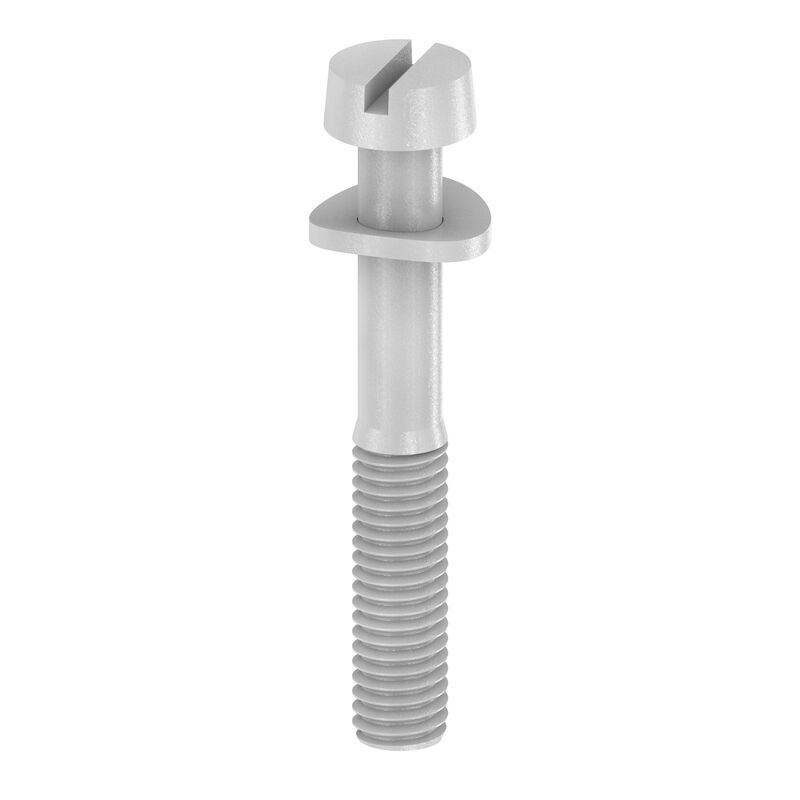

Type | KISC M3X20.5/10 EK4 |
GTIN (EAN) | 4008190163686 |
Qty. | 100 items |
Height | 20 mm |
Height (inches) | 0.787 inch |
Diameter | 3 mm |
Net weight | 1.16 g |
Material | Steel |
Surface finish | Miscellaneous |
Colour | silver |
Version | for busbars |
Explosion-tested version | No |
Installation advice | Direct mounting |
Type of fixing | when screwed in |
Type of mounting | when screwed in |
Diameter | 3 mm |
Installation advice | Direct mounting |
Surface finish | Miscellaneous |
Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_58975) |
Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0303000000) |
CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0303000000) |
WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=0303000000&norm=0) |
User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
ETIM 6.0 | EC002848 |
ETIM 7.0 | EC002848 |
ETIM 8.0 | EC002848 |
ETIM 9.0 | EC002848 |
ECLASS 9.0 | 27-14-11-92 |
ECLASS 9.1 | 27-14-11-92 |
ECLASS 10.0 | 27-14-11-92 |
ECLASS 11.0 | 27-14-11-92 |
ECLASS 12.0 | 27-14-11-92 |
ECLASS 13.0 | 27-25-03-90 |
ROHS | Conform |
Is accessory of
-
Item No.:1887210000Packaging unit:50 PC
Test-disconnect terminal, Screw connection, 6 mm², 800 V, 41 A, sliding, Cross-disconnect: without, Integral test socket: No, TS 35, dark beige
-
Item No.:0194400000Packaging unit:50 PC
Cross-connector (terminal), when screwed in, Number of poles: 3, Pitch in mm (P): 7.90, Insulated: No, 41 A, grey
-
Item No.:0194500000Packaging unit:50 PC
Cross-connector (terminal), when screwed in, Number of poles: 4, Pitch in mm (P): 7.90, Insulated: No, 57 A, grey
-
Item No.:0221200000Packaging unit:10 PC
Cross-connector (terminal), when screwed in, Number of poles: 15, Pitch in mm (P): 7.90, Insulated: No, 32 A, grey
-
Item No.:0194300000Packaging unit:50 PC
Cross-connector (terminal), when screwed in, Number of poles: 2, Pitch in mm (P): 7.90, Insulated: No, 41 A, grey
-
Item No.:0338300000Packaging unit:20 PC
Cross-connector (terminal), when screwed in, Number of poles: 10, Pitch in mm (P): 7.90, Insulated: No, 41 A, grey
-
Item No.:0497560000Packaging unit:50 PC
Feed-through terminal block, Screw connection, 4 mm², 630 V, 32 A, Number of connections: 2
-
Item No.:9501160000Packaging unit:50 PC
Feed-through terminal block, Screw connection, 4 mm², 690 V, 32 A, Number of connections: 2
-
Item No.:0130600000Packaging unit:100 PC
Cross-connector (terminal), when screwed in, Number of poles: 2, Pitch in mm (P): 6.00, Insulated: No, 41 A, grey
-
Item No.:0338200000Packaging unit:20 PC
Cross-connector (terminal), when screwed in, Number of poles: 10, Pitch in mm (P): 6.00, Insulated: No, 36 A, grey
-
Item No.:0130800000Packaging unit:50 PC
Cross-connector (terminal), when screwed in, Number of poles: 4, Pitch in mm (P): 6.00, Insulated: No, 32 A, grey
-
Item No.:0130700000Packaging unit:100 PC
Cross-connector (terminal), when screwed in, Number of poles: 3, Pitch in mm (P): 6.00, Insulated: No, 41 A, grey
-
Item No.:9502610000Packaging unit:25 PC
Feed-through terminal block, Screw connection, 10 mm², 800 V, 57 A, Number of connections: 2
-
Item No.:1598090000Packaging unit:25 PC
Feed-through terminal block, Screw connection, 10 mm², 800 V, 57 A, Number of connections: 2
-
Item No.:0126700000Packaging unit:50 PC
Feed-through terminal block, Screw connection, 10 mm², 1000 V, 57 A, Number of connections: 2
-
Item No.:1596240000Packaging unit:20 PC
Feed-through terminal block, Screw connection, 35 mm², 1000 V, 125 A, Number of connections: 2
-
Item No.:0126600000Packaging unit:50 PC
Feed-through terminal block, Screw connection, 6 mm², 1000 V, 41 A, Number of connections: 2
-
Item No.:0470700000Packaging unit:50 PC
Cross-connector (terminal), when screwed in, Number of poles: 2, Pitch in mm (P): 6.00, Insulated: No, 76 A, grey
-
Item No.:0470900000Packaging unit:50 PC
Cross-connector (terminal), when screwed in, Number of poles: 4, Pitch in mm (P): 6.00, Insulated: No, 76 A, grey
-
Item No.:0471000000Packaging unit:20 PC
Cross-connector (terminal), when screwed in, Number of poles: 10, Pitch in mm (P): 6.00, Insulated: No, 76 A, grey
-
Item No.:0470800000Packaging unit:50 PC
Cross-connector (terminal), when screwed in, Number of poles: 3, Pitch in mm (P): 6.00, Insulated: No, 76 A, grey
-
Item No.:9502600000Packaging unit:25 PC
Feed-through terminal block, Screw connection, 4 mm², 800 V, 32 A, Number of connections: 2
-
Item No.:1598080000Packaging unit:25 PC
Feed-through terminal block, Screw connection, 4 mm², 800 V, 32 A, Number of connections: 2
-
Item No.:1887220000Packaging unit:50 PC
Test-disconnect terminal, Screw connection, 6 mm², 800 V, 41 A, without, Cross-disconnect: without, Integral test socket: Yes, TS 35, TS 32, dark beige
