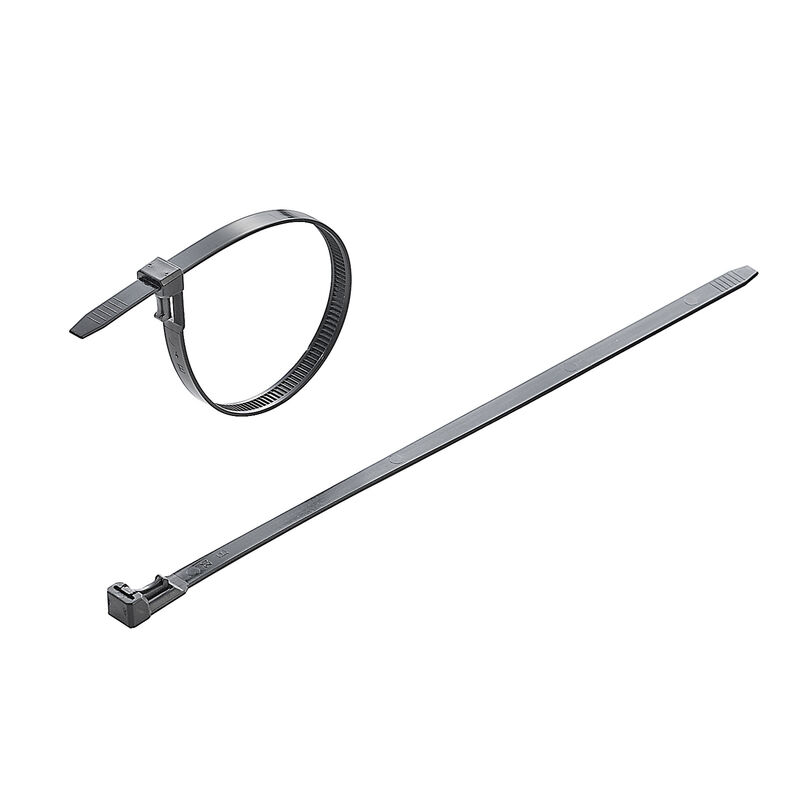

CB-R 350/7,5 NC
Similar to illustration
Similar to illustration
CB-R 350/7,5 NC

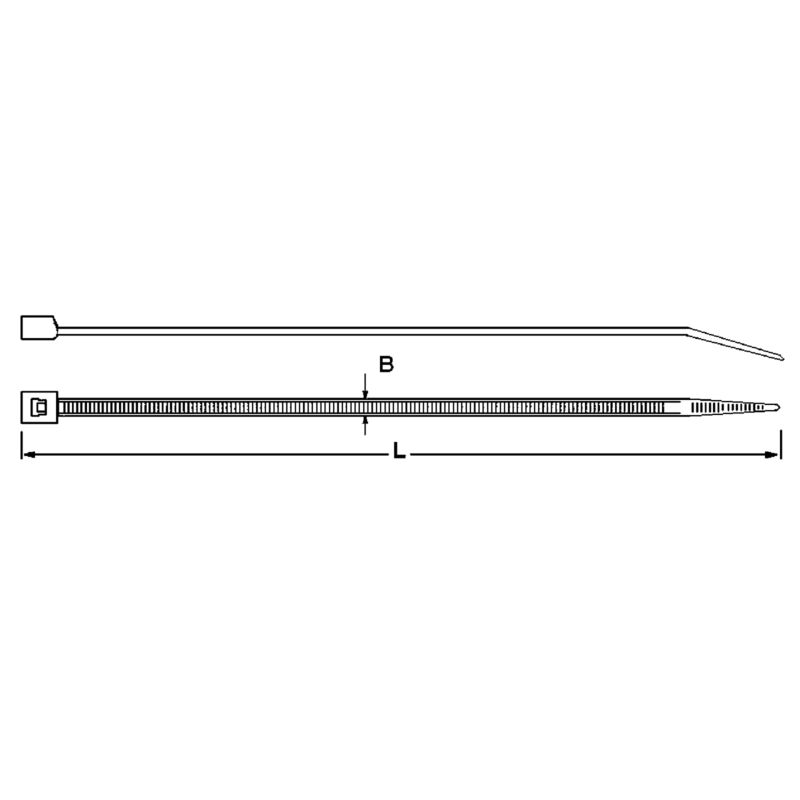

Drawing

CB-R 350/7,5 NC

Cable ties, 7.5 x 350 mm, Polyamide 66, 220 N

Produkt ID 1059240000
Download datablad Produktdownloads Engineering-support
Anvendte produkter 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Matériel d'installation Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Cable ties, 7.5 x 350 mm, Polyamide 66, 220 N
Order No.
1059240000
Type
CB-R 350/7,5 NC
GTIN (EAN)
4032248806188
Qty.
4.000 Styk

Dimensions and weights

Depth
2 mm
Depth (inches)
0,079 inch
Height
350 mm
Height (inches)
13,78 inch
Width
7,5 mm
Width (inches)
0,295 inch
Net weight
3,84 g

Temperatures

Operating temperature range
-40...85 °C

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Matériel d'installation

Bundle diameter, min.
3,5 mm
Bündeldurchmesser, max.
100 mm
Cable diameter, max.
100 mm
For re-opening
Да
Halogen
No
Operating temperature range, max.
85 °C
Operating temperature range, min.
-40 °C
Pevnost v tahu
220 N
Tensile strength (Pound-force)
49 lbf
UL 94 flammability rating
V-2
UV-resistant
No
Základní materiál
Polyamide 66

Important note

Información de producto
Number of bags in box (pieces): 40
Number of items in bag (pieces): 100
One delivery unit corresponds to one box quantity, and only multiples of the delivery unit can be ordered.

Classifications

ETIM 8.0
EC000046
ETIM 9.0
EC000046
ETIM 10.0
EC000046
ECLASS 14.0
27-14-07-02
ECLASS 15.0
27-14-07-02
