Egenskaber
| Version | RJ45 insert socket, Bulkhead inserts coupler |
| Order No. | 1962840000 |

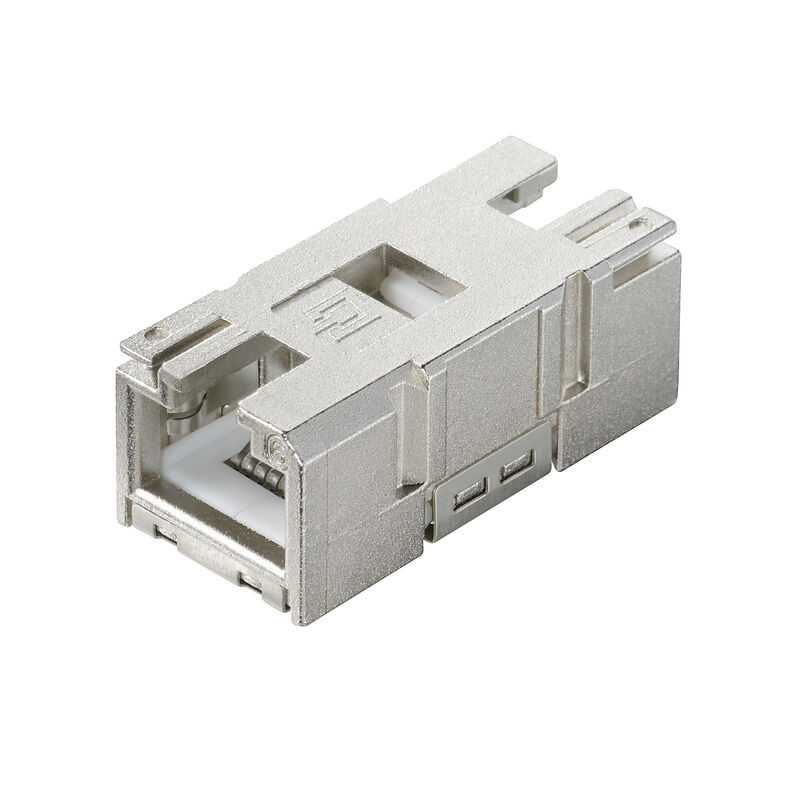

| Type | IE-BI-RJ45-C |
| GTIN (EAN) | 4032248645046 |
| Qty. | 1 Styk |
| Net weight | 2,2 g |
| Operating temperature | -40 °C...70 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Insert type | Insert data SteadyTec |
| Fire load | 33 kJ |
| Connection 1 | RJ45 |
| Connection 2 | RJ45 |
| Description of article | Bulkhead inserts coupler |
| Colour | Miscellaneous |
| Housing main material | Zinc diecast |
| Category | Cat.6A / Class EA (ISO/IEC 11801 2010) |
| Contact surface | Gold over Nickel, Au ≥ 0.8 µm |
| Shielding |
360° all-round enclosure
FS 2.8 Ground connection for equipotential bonding |
| Protection degree | IP67 with housing |
| Plugging cycles | 750 |
| Dielectric strength, contact / contact | ≥ 1000 V AC/DC |
| Dielectric strength, contact / shield | ≥ 1500 V AC/DC |
| Insulation strength | 500 MΩ |
| PoE / PoE+ | conforming to IEEE 802.3af |
| Certificate no. (cULus) | E316369 |
| Certificate No. (DNV) | TAA000022B |
| Connector standard | IEC 60603-7-51 |
| IP protection classes | IEC 60529 |
| UL standard for communication accessories | UL 1863 |
| Product information | RJ45 inserts for plug-in connectors ver.1 / 4 / 5 / 14, HDC and junction boxes IE-OM…; IE-OP…; IE-CC… |
| Approval/Certificate/Document of Conformity |
[GOST Approval](https://mdcop.weidmueller.com/mediadelivery/asset/900_58423)
[GL_FrontCom](https://mdcop.weidmueller.com/mediadelivery/asset/900_58424) [ISO/IEC EN and TIA/EIA Screened Class EA Category 6A, 4 connector channel](https://mdcop.weidmueller.com/mediadelivery/asset/900_58439) [ISO/IEC EN and TIA/EIA Screened Class E Category 6, 3 connector permanent link](https://mdcop.weidmueller.com/mediadelivery/asset/900_67334) [ISO/IEC EN and TIA/EIA Screened Class E Category 6, 4 connector channel](https://mdcop.weidmueller.com/mediadelivery/asset/900_67335) [ISO/IEC EN and TIA/EIA Screened Class EA Category 6A, 2 connector channel](https://mdcop.weidmueller.com/mediadelivery/asset/900_67336) [DUXR.E316369](https://mdcop.weidmueller.com/mediadelivery/asset/900_58418) [CC-Link IE-BI-RJ45-C](https://mdcop.weidmueller.com/mediadelivery/asset/900_58427) [PROFINET Manufacturer's Declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_67339) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_97868) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1962840000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1962840000) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) [Designation key / Type key](https://mdcop.weidmueller.com/mediadelivery/asset/900_90843) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[MB FREECONCONTACT EN](http://download.weidmueller.com/asset/download/file/38173)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC001121 |
| ETIM 7.0 | EC001121 |
| ETIM 8.0 | EC001121 |
| ETIM 9.0 | EC001121 |
| ECLASS 9.0 | 27-44-03-90 |
| ECLASS 9.1 | 27-44-03-90 |
| ECLASS 10.0 | 27-44-03-90 |
| ECLASS 11.0 | 27-44-03-90 |
| ECLASS 12.0 | 27-44-03-90 |
| ECLASS 13.0 | 27-44-03-90 |
| ECLASS 14.0 | 27-44-03-90 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E316369 |
