Eigenschaften

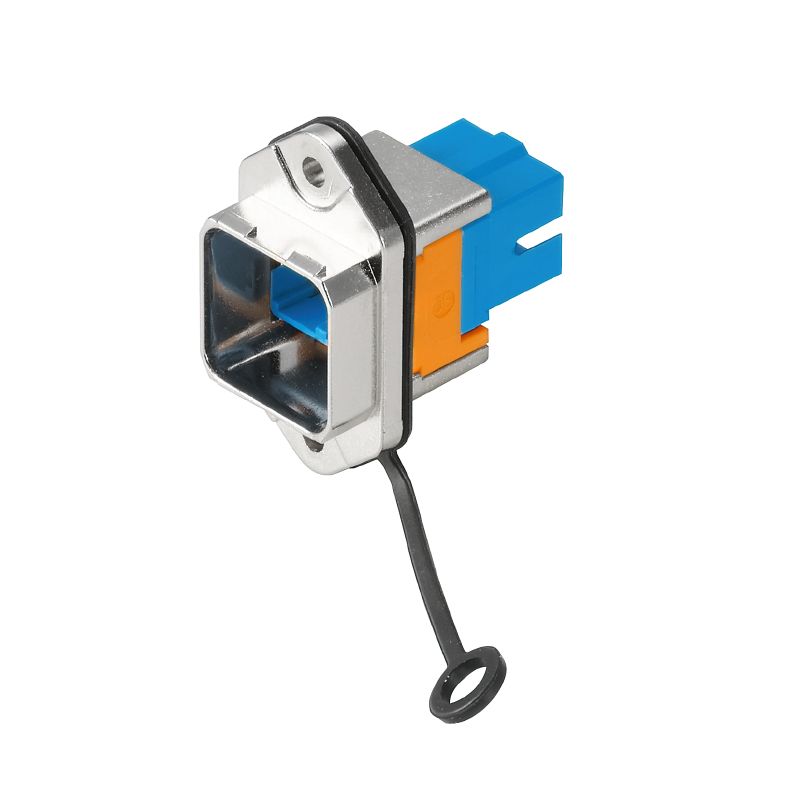

| Ausfuehrung | Flansch LWL, IP67, Variante 14 Normflansch, SCRJ Duplex-Kupplung, Singlemode |
| Best.-Nr. | 1058140000 |
| Art | IE-BSS-V14M-SCRJ-SM-C |
| GTIN (EAN) | 4032248799251 |
| VPE | 10 Stück |
| Tiefe | 36,15 mm |
| Tiefe (inch) | 1,423 inch |
| Höhe | 42 mm |
| Höhe (inch) | 1,654 inch |
| Breite | 22,2 mm |
| Breite (inch) | 0,874 inch |
| Nettogewicht | 26,69 g |
| Betriebstemperatur | -40 °C...70 °C |
| RoHS-Konformitätsstatus | Konform ohne Ausnahme |
| REACH SVHC | No SVHC above 0.1 wt% |
| Anschluss 1 | SCRJ |
| Anschluss 2 | SCRJ |
| Artikelbeschreibung | Variante 14 Normflansch, SCRJ Duplex-Kupplung |
| Einfügungsdämpfung | ≤ 0,5 dB |
| Farbe | sonstige |
| Fasertyp | Singlemode |
| Gehäusebasismaterial | Zinkdruckguss |
| Montageart | 2 Schrauben |
| Rückflussdämpfung | ≥ 40 dB |
| Schutzart | IP67 |
| Steckzyklen | 500 |
| Steckverbinder Norm |
IEC 61076-3-117 Var. 14
IEC 61754-24 |
| Zertifikat-Nr. (cULus) | E316369 |
| Zulassung / Zertifikat / Konformitätsdokument | [PROFINET Manufacturer's Declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_67339) |
| Engineering-Daten | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_252675) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1058140000) |
| Anwenderdokumentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) [Designation key / Type key](https://mdcop.weidmueller.com/mediadelivery/asset/900_90842) [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_96751) |
| Kataloge | [Catalogues in PDF-format](LINK/Catalog.html) |
| Broschüren |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC000752 |
| ETIM 7.0 | EC000752 |
| ETIM 8.0 | EC000752 |
| ETIM 9.0 | EC000752 |
| ECLASS 9.1 | 19-17-01-16 |
| ECLASS 10.0 | 19-17-01-16 |
| ECLASS 11.0 | 19-17-01-16 |
| ECLASS 12.0 | 19-17-01-16 |
| ECLASS 13.0 | 19-17-01-16 |
| ECLASS 14.0 | 19-17-01-16 |
| Zulassungen |  |
| ROHS | Konform |
| UL File Number Search | [UL Webseite](LINK/UL_search.html) |
| Zertifikat-Nr. (cULus) | E316369 |
