HDC 24B TBU 2M40G CS

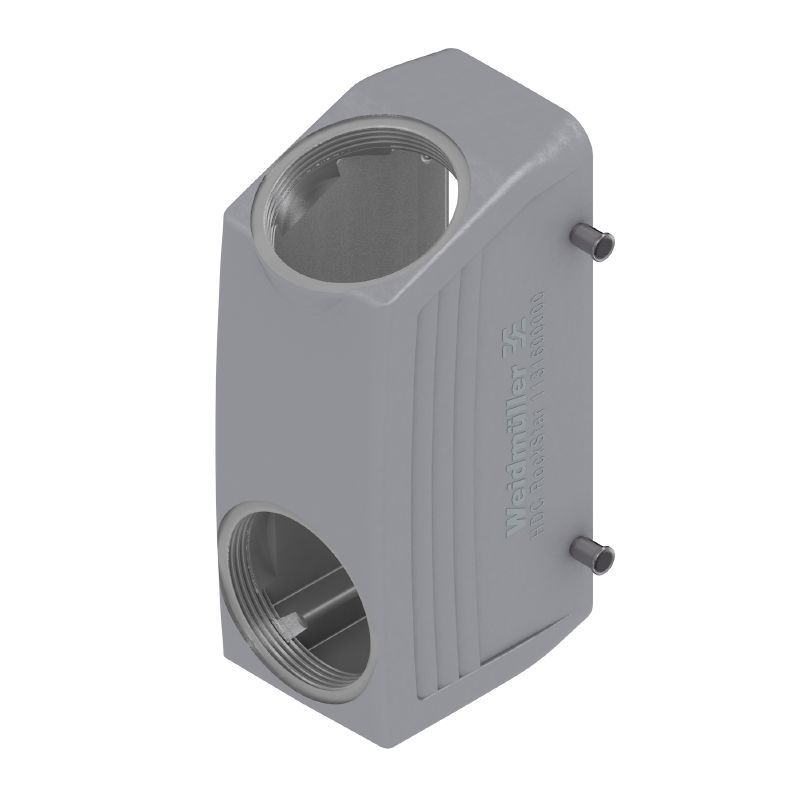

HDC enclosures, Size: 8, Protection degree: IP65 (in plugged condition), Plug housing, Side-locking clamp on lower side, Standard, Size of cable entries: M 40

Item No. 1131600000

Properties

General ordering data

Version	HDC enclosures, Size: 8, Protection degree: IP65 (in plugged condition), Plug housing, Side-locking clamp on lower side, Standard, Size of cable entries: M 40
Order No.	1131600000
Type	HDC 24B TBU 2M40G CS
GTIN (EAN)	4032248912865
Qty.	1 items

Dimensions and weights

Height	63 mm
Height (inches)	2.48 inch
Width	59 mm
Width (inches)	2.323 inch
Net weight	216.48 g

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6bI
REACH SVHC	Lead 7439-92-1
SCIP	d447edfa-0214-4f34-b5ba-82eae491b46a
Chemical resistance	Substance: Acetone Chemical resistance: Conditionally resistant Substance: Drilling oil Chemical resistance: Resistant Substance: Diesel Chemical resistance: Resistant Substance: Ethyl alcohol Chemical resistance: Resistant Substance: Transmission oil Chemical resistance: Resistant Substance: Hydraulic oil Chemical resistance: Resistant Substance: Coolant Chemical resistance: Resistant Substance: Petroleum benzine Chemical resistance: Resistant Substance: Sweat Chemical resistance: Resistant Substance: Premium gasoline Chemical resistance: Conditionally resistant Substance: Water Chemical resistance: Resistant Substance: UV Chemical resistance: Unstable Substance: Ozone Chemical resistance: Unstable

Dimensions

Cable entry	w. thread
Height of housing B	63 mm

General data

EMC housings	No
Housing main material	diecast aluminium
Material of locking element	Stainless steel, rust-proof
Protection degree	IP65 (in plugged condition)
Surface finish	Powder coating

Version

BG	8
Cable entry	w. thread
Clamp version	Side-locking clamp
Colour (RAL)	RAL 7035
Design	Standard
Design of housing	Plug housing
Design of locking system	Side-locking clamp on lower side
Internal thread	M 40
Number of cable entry on top	1
Number of cable entry sideways	1
Size	8
Size of cable entries	M 40
Suitable for ModuPlug^®	No
Top part/bottom part/lid	upper part
Type	Plug
