Properties
| Version | Power module |
| Order No. | 2748270000 |

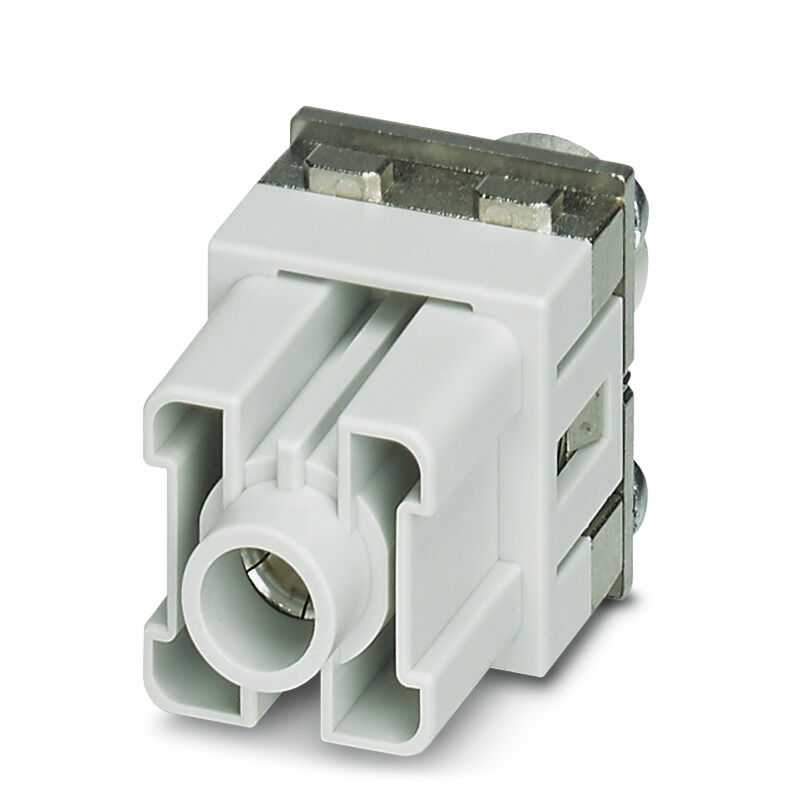

| Type | HDC MHP 200 PE FAS |
| GTIN (EAN) | 4050118891041 |
| Qty. | 2 items |

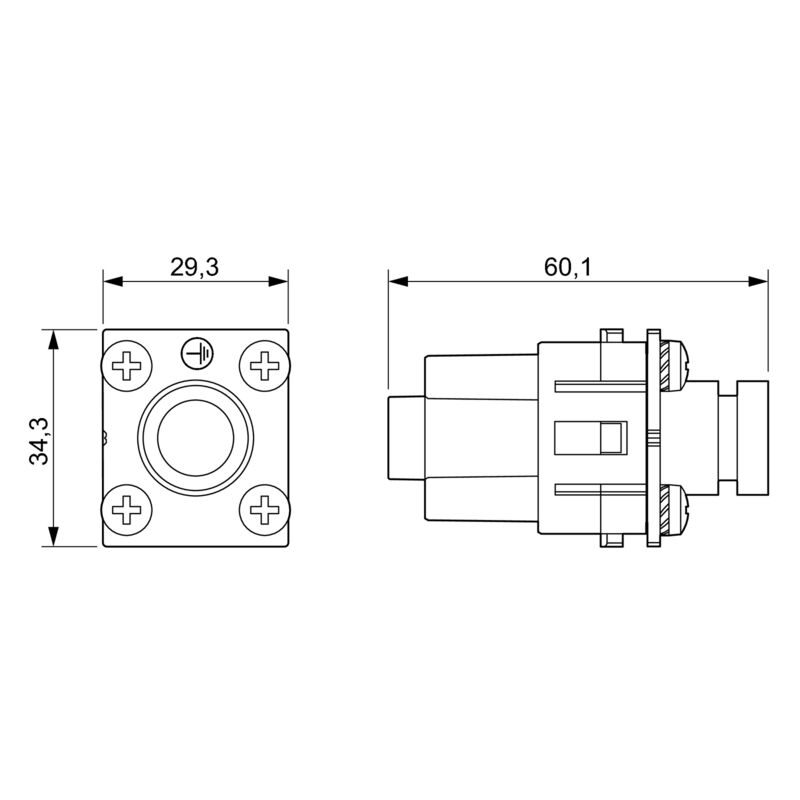

| Depth | 34.2 mm |
| Depth (inches) | 1.346 inch |
| Height | 60 mm |
| Height (inches) | 2.362 inch |
| Width | 34.2 mm |
| Width (inches) | 1.346 inch |
| Net weight | 13.8 g |
| Limit temperature | -40 °C ... 125 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | fa505316-3e43-4ad0-930c-360dfdbe182a |
| Material | Polycarbonate |
| Number of poles | 1 |
| Plugging cycles | ≥ 500 |
| Pollution severity | 3 |
| Rated impulse voltage (DIN EN 61984) | 8 kV |
| Rated voltage (DIN EN 61984) | 1,000 V |
| Required plug-in slots | 2 |
| Type | Female |
| UL 94 flammability rating | V-0 |
| 6 mm² | |
| Conductor cross-section, max. | 70 mm² |
| Stripping length, rated connection | 16 mm |
| Type of connection | Axial screw connection |
| Approval/Certificate/Document of Conformity | [Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_188690) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2748270000) |
| User Documentation | [Manual Axial Screw](https://mdcop.weidmueller.com/mediadelivery/asset/900_249239) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002312 |
| ETIM 7.0 | EC002312 |
| ETIM 8.0 | EC002312 |
| ETIM 9.0 | EC002312 |
| ECLASS 9.0 | 27-44-02-92 |
| ECLASS 9.1 | 27-44-02-18 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ROHS | Conform |
