Properties

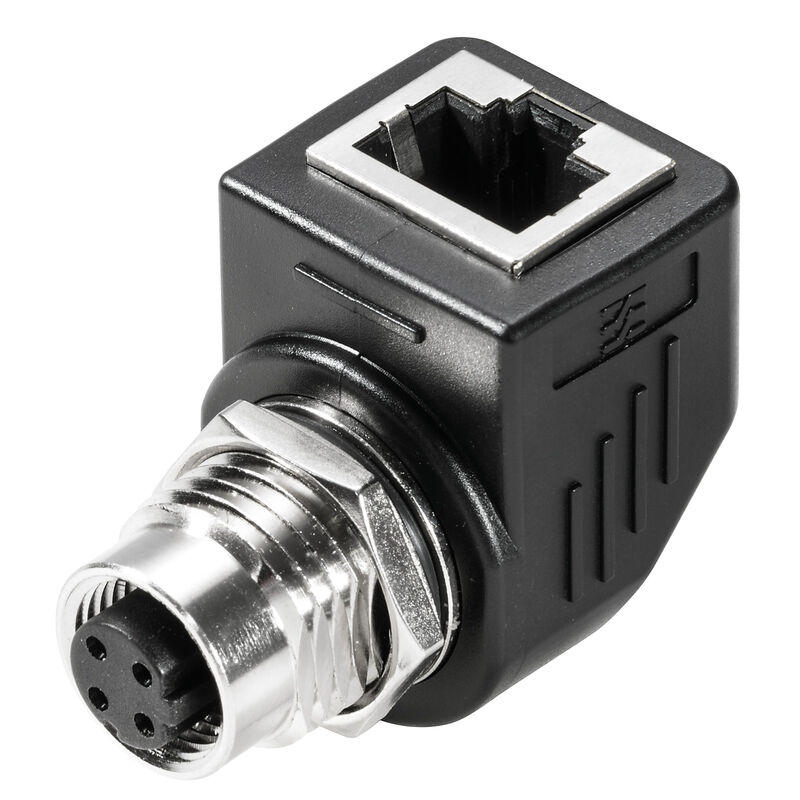

| Version | Adapter, angled, RJ45 90°, M12, Cat.5 (ISO/IEC 11801), IP67 |
| Order No. | 8901630000 |
| Type | IE-M12-ADAP A |
| GTIN (EAN) | 4032248653584 |
| Qty. | 1 items |
| Net weight | 36 g |
| Storage temperature | -40 °C...80 °C |
| Operating temperature | -25 °C...80 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | d1193a9e-dc7c-484a-ba48-176711eb392b |
| Category | Cat.5 (ISO/IEC 11801) |
| Coding | D-coded |
| Contact surface | Gold-plated |
| Housing main material | PA 66 |
| Number of poles | 4 |
| Protection degree | IP67 |
| Number of poles | 4 |
| Connection 1 | RJ45 90° |
| Connection 2 | M12 |
| Description of article | Adapter, angled |
| Configuration | M12 socket to RJ45 socket |
| Housing main material | PA 66 |
| Category | Cat.5 (ISO/IEC 11801) |
| Connection thread | M12 |
| Contact surface | Gold-plated |
| Shielding | Yes |
| Protection degree | IP67 |
| Contact resistance | ≤ 10 mΩ |
| Current-carrying capacity at 50 °C | 1 A |
| Connector standard |
IEC 60603-7-5
IEC 61076-2-101 |
| Coding | D-coded |
| Connection thread | M12 |
| Contact surface | Gold-plated |
| Housing main material | PA 66 |
| Number of poles | 4 |
| Protection degree | IP67 |
| Version | angled |
| Approval/Certificate/Document of Conformity |
[GOST Approval](https://mdcop.weidmueller.com/mediadelivery/asset/900_58423)
[PROFINET Manufacturer's Declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_67339) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_97916) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8901630000) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC000313 |
| ETIM 7.0 | EC000313 |
| ETIM 8.0 | EC000313 |
| ETIM 9.0 | EC000313 |
| ECLASS 9.0 | 27-44-03-20 |
| ECLASS 9.1 | 19-17-01-25 |
| ECLASS 10.0 | 27-44-03-20 |
| ECLASS 11.0 | 27-44-03-20 |
| ECLASS 12.0 | 27-44-03-20 |
| ECLASS 13.0 | 27-44-03-20 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E471884 |
