IE-USB-A-A-1.8M-ML
IE-USB-A-A-1.8M-ML

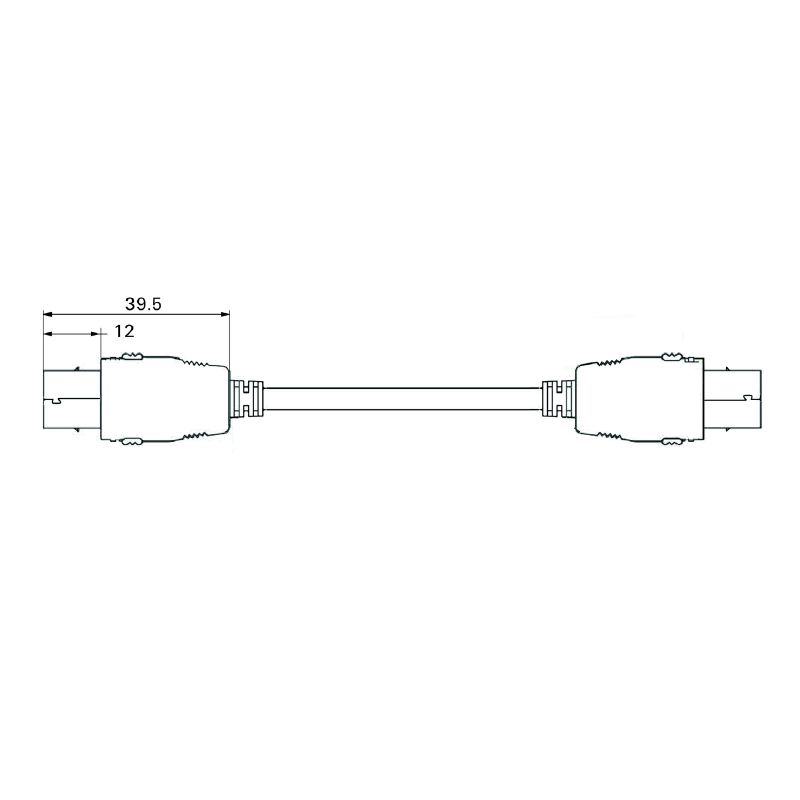

Dimensional drawing
IE-USB-A-A-1.8M-ML
Product benefits

IE-USB-A-A-1.8M-ML

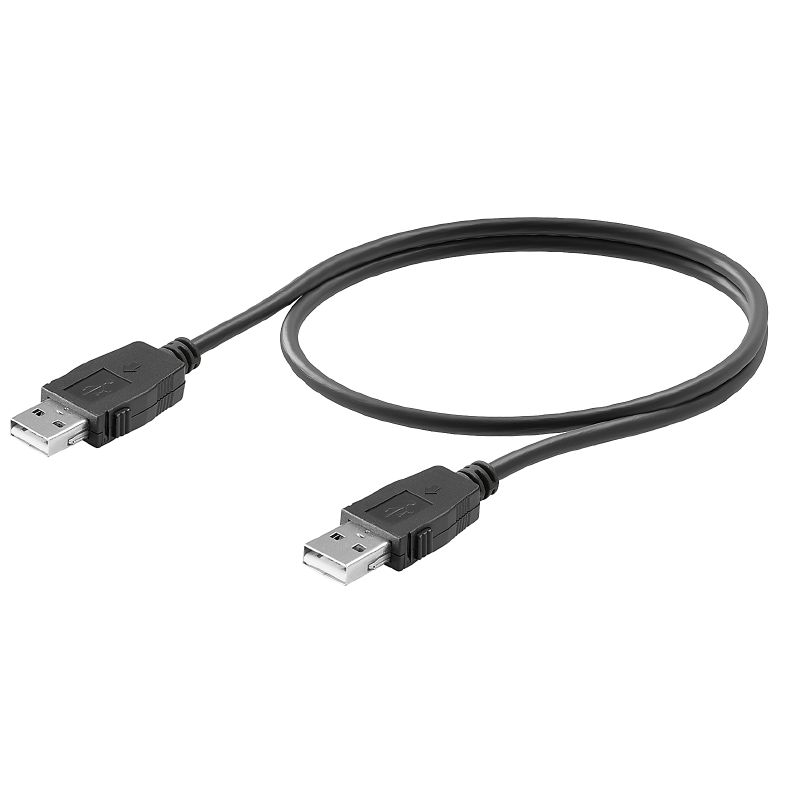

USB cable, USB A, with mechanical locking, USB A, with mechanical locking, PVC, 1.8 m

Item No. 2695980018
Download data sheet Product Downloads
Related products 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Technical specifications for cable General technical data Cable structure Plug, left Plug, right Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
USB cable, USB A, with mechanical locking, USB A, with mechanical locking, PVC, 1.8 m
Order No.
2695980018
Type
IE-USB-A-A-1.8M-ML
GTIN (EAN)
4050118702835
Qty.
1 items

Dimensions and weights

Length
1.8 m
Length (inches)
70.866 inch
Net weight
70 g

Temperatures

Operating temperature
0 °C...80 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Technical specifications for cable

Sheathing colour
black

General technical data

Contact surface
Gold over nickel

Cable structure

Cross-section
2*AWG28 + 2*AWG24
Material sheath
PVC
Sheath diameter
4.5 mm
Sheath diameter, max.
4.7 mm
Sheath diameter, min.
4.3 mm
Sheathing colour
black

Plug, left

Plug left
USB A, IP20, male contact, straight, plug, with mechanical locking, Plastic, shielded

Plug, right

Plug right
USB A, IP20, male contact, straight, plug, with mechanical locking, Plastic, shielded

Classifications

ETIM 6.0
EC001408
ETIM 7.0
EC001408
ETIM 8.0
EC001408
ETIM 9.0
EC001408
ETIM 10.0
EC001408
ECLASS 9.0
27-06-20-11
ECLASS 9.1
27-06-90-90
ECLASS 10.0
27-06-01-06
ECLASS 11.0
27-06-01-06
ECLASS 12.0
27-06-01-06
ECLASS 13.0
27-06-01-06
ECLASS 14.0
27-06-01-06
ECLASS 15.0
27-06-01-06
