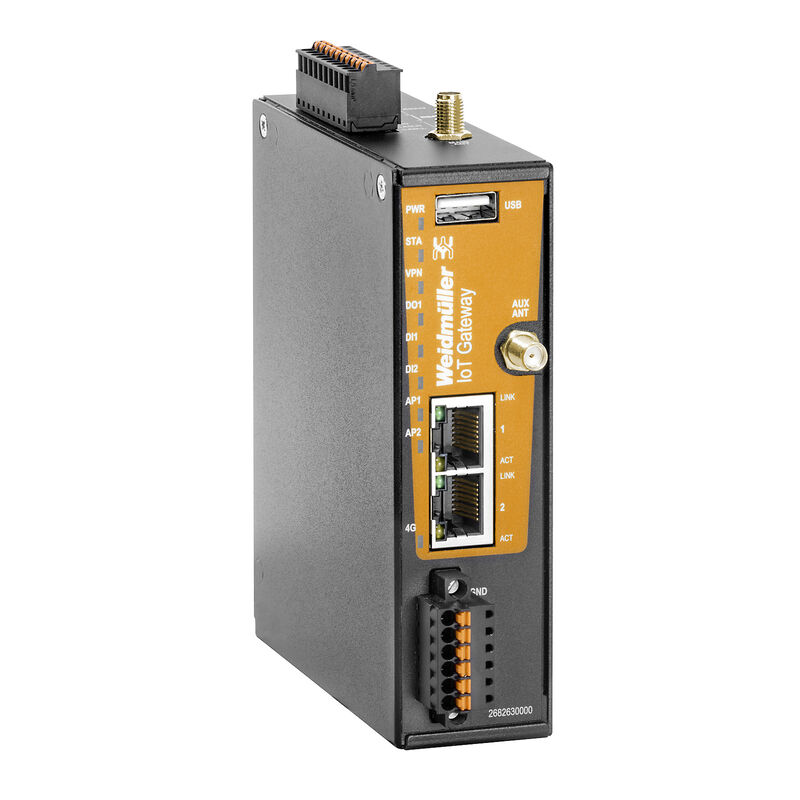

IOT-GW30-4G-EU

IoT Gateway, Fast Ethernet, IP20, -20 °C...60 °C

Item No. 2682630000

Properties

General ordering data

Version	IoT Gateway, Fast Ethernet, IP20, -20 °C...60 °C
Order No.	2682630000
Type	IOT-GW30-4G-EU
GTIN (EAN)	4050118691689
Qty.	1 items

Dimensions and weights

Depth	105 mm
Depth (inches)	4.134 inch
Height	125 mm
Height (inches)	4.921 inch
Width	35 mm
Width (inches)	1.378 inch
Net weight	500 g

Temperatures

Storage temperature	-40 °C...85 °C
Operating temperature	-20 °C...60 °C
Humidity	5 to 95 % (non-condensing)

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6c, 7a, 7cI
REACH SVHC	Lead 7439-92-1
SCIP	05711a2b-ba3f-4f0d-9bb3-583a06111ef4

General data

Shock

according to IEC 60068-2-27

Power supply

Reverse polarity protection	Yes
Voltage supply	24 V DC

System data

Connection type	1 removable 6-pin terminal block
Memory (Flash)	4 GB
Processor	Dual Core ARM Cortex A9, 600 MHz
Real-time clock	Capacity buffered (max. 5 days)

General specifications

Protection degree

IP20

System data

Memory (Flash)	4 GB
Memory (RAM)	1 GB DDR3
Processor	Dual Core ARM Cortex A9, 600 MHz
Real-time clock	Capacity buffered (max. 5 days)

Mobile radio interface

Frequency band	LTE: 2100MHz (B1), 1800MHz (B3), 850MHz (B5), 2600MHz (B7), 900MHz (B8), 800MHz (B20), 2600MHz (B38), 2300MHz (B40), 2600MHz (B41) UMTS/WCDMA: 2100MHz (B1), 850MHz (B5), 900MHz (B8) GSM/GPRS/EDGE: 900MHz (B8), 1800MHz (B3)
Transmission rate mobile radio	LTE category: CAT 4 Download rate, max.: 150 Mbit/s Upload rate, max.: 50 Mbit/s
Wireless module	LTE / HSPA+ multiband wireless module (4G / 3G / 2G) for fast wireless Internet access

VPN

u-link

OpenVPN-based remote access service via the Weidmüller u-link cloud

EMC conformity and approvals

EMC standards	EN 61000-6-3 EN 61000-6-2
Shock	according to IEC 60068-2-27
Vibration	according to IEC 60068-2-6

Environmental conditions

Humidity	5 to 95 % (non-condensing)
Operating temperature, max.	60 °C
Operating temperature, min.	-20 °C
Storage temperature, max.	85 °C
Storage temperature, min.	-40 °C

Guarantee

Time interval

2 years

Interfaces

Connector for external antennas	2x SMA female
Digital inputs	2x >10 V high , <3.6 V low; max. 30 V DC
Digital outputs	1x 19.2 - 28 V high; max. 1 A
Ethernet ports	2
Number of SIM-Card slots	1
RJ45 ports	10/100BaseT(X) auto negotiation Full-/half-duplex mode Auto MDI/MDI-X port
Serial port	1x RS232/RS485
SIM-Card slot type	Micro-SIM
USB port	1x USB 2.0 (Type A; max. 500 mA)

Power supply

Connection type	1 removable 6-pin terminal block
Current consumption	Voltage: 24 V Current: 0.24 A
Reverse polarity protection	Yes
Voltage supply	24 V DC
Voltage supply range	Voltage type: DC Voltage, min.: 19.2 V Voltage, max.: 28 V

Technical data

Housing main material	Metal
Protection degree	IP20
Speed	Fast Ethernet
Type of mounting	DIN rail

Downloads

Approval/Certificate/Document of Conformity	[Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_224591)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_199705) [Quick start guide -- Quickstartguide IOT-GW30](https://mdcop.weidmueller.com/mediadelivery/asset/900_206259) [Application notes -- UC-Codesys NVL in Node-RED](https://mdcop.weidmueller.com/mediadelivery/asset/900_303701) [Application notes -- UR20-1COM-RSxxx-V1 -Setup of Modbus and Serial communication in CODESYS](https://mdcop.weidmueller.com/mediadelivery/asset/900_304016) [Application notes -- UR20-1COM-RSxxx-V2 -Setup of Modbus and Serial communication in CODESYS](https://mdcop.weidmueller.com/mediadelivery/asset/900_308372) [Application notes -- Use of Node-RED contrib OpcUa](https://mdcop.weidmueller.com/mediadelivery/asset/900_312423) [Application notes -- Ethernet over EtherCAT with Codesys and u-OS](https://mdcop.weidmueller.com/mediadelivery/asset/900_317529) [Quick start guide -- Modbus - Understanding Coils and Register](https://mdcop.weidmueller.com/mediadelivery/asset/900_246227) [Quick start guide -- IOT-GW30: CANopen communication with PROtop](https://mdcop.weidmueller.com/mediadelivery/asset/900_251152) [Application notes -- 20220530_Statement_IOT_GW](https://mdcop.weidmueller.com/mediadelivery/asset/900_261133) [Quick start guide -- IOT-SMS via IOT-GW30_4G](https://mdcop.weidmueller.com/mediadelivery/asset/900_287453) [Application notes -- Installing and using Node-RED App on u-OS](https://mdcop.weidmueller.com/mediadelivery/asset/900_298741) [Setup of Procon Web ES on u-OS](https://mdcop.weidmueller.com/mediadelivery/asset/900_298810) [Application notes -- Setup of Modbus TCP connection in CODESYS on u-OS](https://mdcop.weidmueller.com/mediadelivery/asset/900_301839) [Application notes -- Setup of FTP client in CODESYS](https://mdcop.weidmueller.com/mediadelivery/asset/900_302411)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2682630000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2682630000)
User Documentation	[Online help / Online documentation / Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_200655) [20210504 Security Advisory - Accidentally open network port in u-controls and IoT-Gateways](https://mdcop.weidmueller.com/mediadelivery/asset/900_211380) [uc documentation IOT-GW30](https://mdcop.weidmueller.com/mediadelivery/asset/900_298657) [Security Advisory - Multiple products affected by CodeMeter Runtime vulnerability](https://mdcop.weidmueller.com/mediadelivery/asset/900_310190) [Security Data Sheet u-OS V1.0](https://mdcop.weidmueller.com/mediadelivery/asset/900_322899) [Application notes -- Industrial Product Security Guideline](https://mdcop.weidmueller.com/mediadelivery/asset/900_322935)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC001099
ETIM 7.0	EC001099
ETIM 8.0	EC001099
ETIM 9.0	EC001099
ECLASS 9.0	19-17-01-00
ECLASS 9.1	19-17-01-00
ECLASS 10.0	19-17-05-90
ECLASS 11.0	19-17-05-90
ECLASS 12.0	19-17-05-90
ECLASS 13.0	19-17-05-90
ECLASS 14.0	19-17-05-90
