Properties

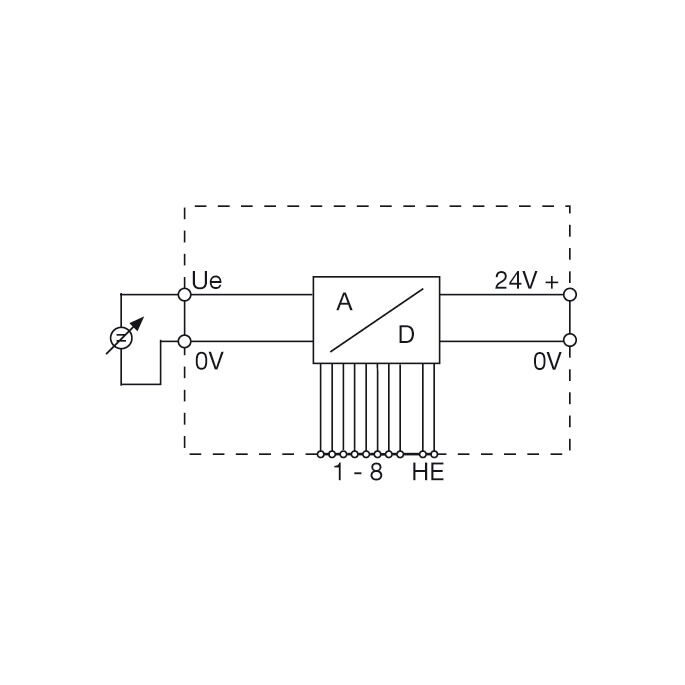

| Version | AD converter, Input : 0-10 V, Output : 8-bit pulse |
| Order No. | 1160361001 |
| Type | RS U-D8 0...10V |
| GTIN (EAN) | 4032248103836 |
| Qty. | 1 items |
| Delivery status | This article will no longer be available in the future. |
| Available until | 31.12.2022 |
| Depth | 70 mm |
| Depth (inches) | 2.756 inch |
| Height | 72 mm |
| Height (inches) | 2.835 inch |
| Width | 35 mm |
| Width (inches) | 1.378 inch |
| Net weight | 72 g |
| Storage temperature | -40 °C...80 °C |
| Operating temperature | 0 °C...50 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c, 7a, 7cI |
| REACH SVHC |
Lead 7439-92-1
6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol 119-47-1 |
| SCIP | 57ae7c19-5502-4105-af85-169aba88caca |
| Input resistance, voltage | ≥ 400 kΩ |
| Input voltage | 0...10 V |
| Number of inputs | 1 |
| Supply voltage (input) | 24 V DC |
| Conversion time | ≤ 4 µs |
| Cut-off frequency (-3 dB) | 5 kHz at full scale (sinus) |
| Number of outputs | 8-bit (1-bit signed) |
| Output current | ≤ 25mA (as source) |
| Output level | 17 V = H, 0 V = L |
| Accuracy | ± 1 LSB |
| Current consumption | 35 mA (plus output current) |
| Galvanic isolation | Without isolation |
| Protection degree | IP00 |
| Rail |
TS 35
TS 32 |
| Voltage supply | 24 V DC |
| EMC standards | EN 61000-6 |
| Galvanic isolation | Without isolation |
| Type of connection | Screw connection |
| Clamping range, rated connection | 4 mm² |
| Clamping range, min. | 0.5 mm² |
| Clamping range, max. | 4 mm² |
| Approval/Certificate/Document of Conformity | [Application notes -- Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35437) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_70178) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1160361001) |
| User Documentation | [Device description -- IS RS 8BIT ADC DAC](https://mdcop.weidmueller.com/mediadelivery/asset/900_35628) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002653 |
| ETIM 7.0 | EC002653 |
| ETIM 8.0 | EC002653 |
| ETIM 9.0 | EC002653 |
| ECLASS 9.0 | 27-21-01-20 |
| ECLASS 9.1 | 27-21-01-90 |
| ECLASS 10.0 | 27-21-01-20 |
| ECLASS 11.0 | 27-21-01-20 |
| ECLASS 12.0 | 27-21-01-20 |
| ECLASS 13.0 | 27-21-01-20 |
| ECLASS 14.0 | 27-21-01-20 |
| Approvals |  |
| ROHS | Conform |
