SAIL-M12WM12G-CD-3.0A
SAIL-M12WM12G-CD-3.0A
Dimensioned drawing
Male, angled
SAIL-M12WM12G-CD-3.0A
Dimensioned drawing
Straight socket
SAIL-M12WM12G-CD-3.0A
Pole scheme
M12 = A-coded
SAIL-M12WM12G-CD-3.0A
Pole scheme
M12 = A-coded
SAIL-M12WM12G-CD-3.0A
Wiring diagram
SAIL-M12WM12G-CD-3.0A
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12WM12G-CD-3.0A

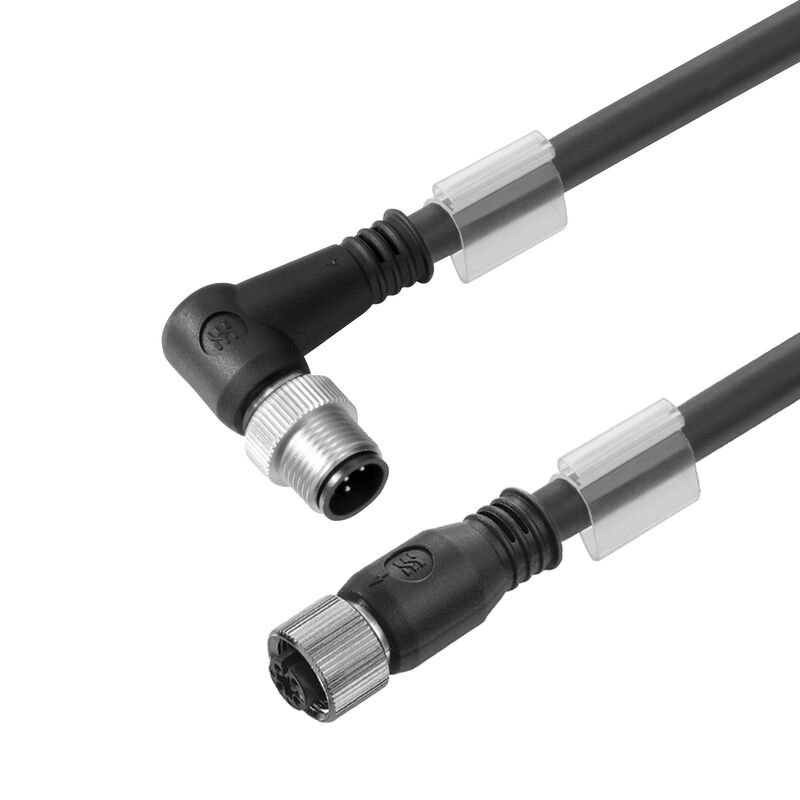

Bus line, Connecting line, M12 / M12, Number of poles: 5, 3 m, pin, angled - bush straight, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No

Product ID 1062100300
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Verwante producten 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable Dane ogólne techniczne Electrical properties General standards Plug, left Plug, right Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Nr certyfikatu (cULus)
E307231

General ordering data

Version
Bus line, Connecting line, M12 / M12, Number of poles: 5, 3 m, pin, angled - bush straight, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No
Order No.
1062100300
Typ
SAIL-M12WM12G-CD-3.0A
GTIN (EAN)
4032248811847
Qty.
1 items

Dimensions and weights

Length
3 mm
Length (inches)
0,118 inch
Net weight
212 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration
7 m/s²
Bending cycles
5 Mio
Bending radius, min., moving
10 x cable diameter
Cable length
3 m
Colour coding
red
black
white
blue
Configurable cable length
No
Core cross-section
0,34 mm²
Halogen
No
Hybrid cable
Yes
Insulation
PE
Irradiation crosslinked
No
Number of poles
5
Number of wires
5
Outside diameter
6.9 mm ± 0.3 mm
Resistance to oils
EN 50363-10-2
Resistance to spread of flame
in accordance with IEC 60332-1-2
In accordance with UL1581 UL/ CUL FT1
Resistant to welding beads
No
Sheath material
PUR
Sheathing colour
violet
Shielded
Yes
Speed
180 m/min
Suitable for cable carriers
Yes
Temperature range, moving
-20...80 °C
Welding spark resistance
No
Wire cross section (Print/Online)
2 x 0.34 mm² + 2 x 0.22 mm²

Dane ogólne techniczne

IP67
Coding
A-coded
Connection thread
M12 / M12
Contact surface
Gold-plated
Couple de serrage
M12: 0.8 - 1.2 Nm
Housing main material
PUR
Jmenovitý proud
4 A
LED
No
Materiál kontaktu
CuZn35PB2
Nominal voltage
125 V
Plage de températures du coffret
-25…+80 °C
puenteado
No
Steckzyklen
≥ 100
Threaded ring material
Brass, nickel-plated
Verschmutzungsgrad
3
Version
pin, angled - bush straight

Electrical properties

Nominal voltage
125 V

General standards

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Plug, left

Prise de raccordement à gauche
M12, A-coded, Number of poles: 5, IP67, male contact, angled 0°, plug, shielded

Plug, right

Prise de raccordement à droite
M12, A-coded, Number of poles: 5, IP67, female contact, straight, plug, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-07
