Properties
| Version | Valve plug with integral seal, One end without connector - valve plug, A |
| Order No. | 1845130500 |

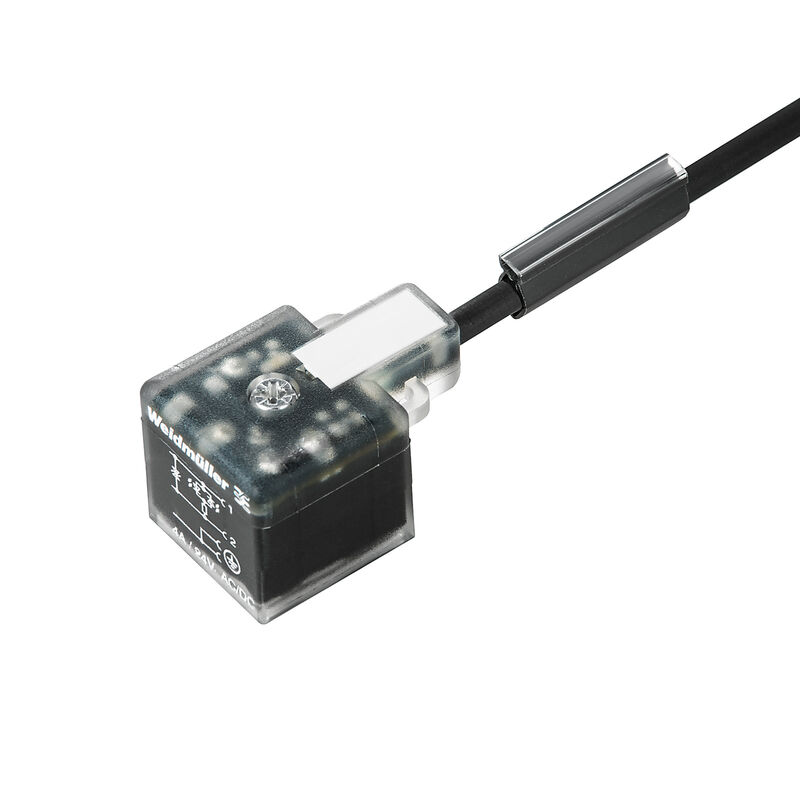

| Type | SAIL-VSA-5.0V(0.5) |
| GTIN (EAN) | 4032248358236 |
| Qty. | 1 items |
| Net weight | 215 g |
| Cable length | 5 m |
| Core cross-section | 0.5 mm² |
| Halogen | No |
| Number of poles | 3 |
| Outside diameter | 5 mm ± 0.2 mm |
| Sheath material | PVC |
| Sheathing colour | black |
| Shielded | No |
| Suitable for cable carriers | Yes |
| Temperature range, moving | -25...80 °C |
| Temperature range, stationary | -50...80 °C |
| All valve plugs are fitted with protective circuits | Suppressor diode |
| Coding | Design A (18 mm) |
| Connection thread | Miscellaneous |
| Contact material | CuZn |
| Contact surface | tinned |
| LED | Yes |
| Protection degree |
IP67
when screwed in |
| Rated current | 4 A |
| Rated voltage | 24 V |
| Temperature range of housing | -25…+80 °C |
| Version | One end without connector - valve plug |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 9.0 | EC001855 |
| ECLASS 9.0 | 27-06-03-12 |
| ECLASS 9.1 | 27-06-03-11 |
| ECLASS 10.0 | 27-06-03-12 |
| ECLASS 11.0 | 27-06-03-12 |
| ECLASS 12.0 | 27-06-03-12 |
| ECLASS 13.0 | 27-06-03-12 |
| Approvals |   |
| ROHS | Conform |
