SL 7.62HP/04/180LF 3.2 SN BK BX
SL 7.62HP/04/180LF 3.2 SN BK BX

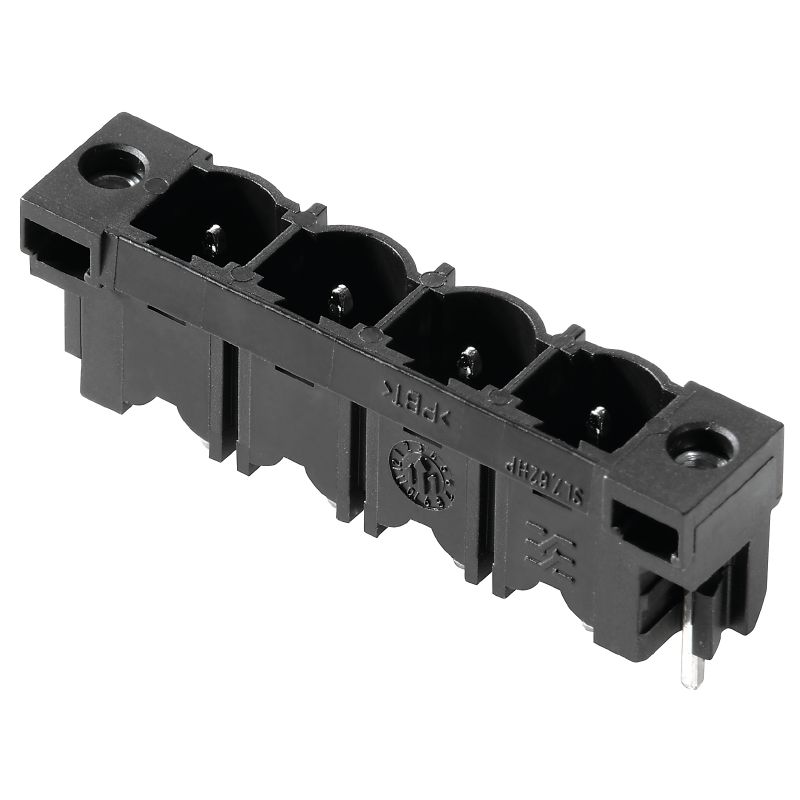

Illustration du produit
SL 7.62HP/04/180LF 3.2 SN BK BX
Illustration du produit
SL 7.62HP/04/180LF 3.2 SN BK BX
Dimensional drawing

SL 7.62HP/04/180LF 3.2 SN BK BX

Conector para placa c.i., Conector macho, Brida para soldar, Conexión por soldadura THT, 7.62 mm, Número de polos: 4, 180°, Longitud del terminal de soldadura (l): 3.2 mm, estañado, negro, Caja

Référence produit 1141110000
Fiche technique Soutien à l'ingénierie Téléchargements de produits
Accessoires 2 Est la pièce opposée de 5 Autres produits de la même gamme 9
Homologaciones Datos generales para pedido Dimensiones y pesos Hőmérsékletek Conformidad medioambiental del producto Especificaciones del sistema Datos del material Rated data acc. to IEC Rated data acc. to CSA Dati di dimensionamento sec. UL 1059 Embalaje Important note Classifications

Homologaciones

Approvals
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Megfelel
UL File Number Search
[UL weboldal](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

Datos generales para pedido

Version
Conector para placa c.i., Conector macho, Brida para soldar, Conexión por soldadura THT, 7.62 mm, Número de polos: 4, 180°, Longitud del terminal de soldadura (l): 3.2 mm, estañado, negro, Caja
Order No.
1141110000
Type
SL 7.62HP/04/180LF 3.2 SN BK BX
GTIN (EAN)
4032248923762
Qty.
42 Pezzo
Parametri prodotto
IEC: 630 V / 29 A
UL: 300 V / 20 A
Imballaggio
Box

Dimensiones y pesos

Depth
8,4 mm
Depth (inches)
0,331 inch
Height
15 mm
Height (inches)
0,591 inch
Height of lowest version
11,8 mm
Width
39,34 mm
Szélesség (coll)
1,549 inch
Net weight
3,28 g

Hőmérsékletek

Folyamatos üzemi hőmérséklet., min.
-25 °C
Folyamatos üzemi hőmérséklet., max.
100 °C

Conformidad medioambiental del producto

RoHS Compliance Status
Conforme sin exención
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Dalla culla al cancello:
    0,116 kg CO2 eq.

Especificaciones del sistema

Produktfamilie
OMNIMATE Power - Serie BL/SL 7.62HP
Anschlussart
Conexión de tarjetas
Mounting onto the PCB
THT solder connection
Pitch in mm (P)
7,62 mm
Pitch in inches (P)
0,3 "
Outgoing elbow
180°
Polzahl
4
Anzahl Lötstifte pro Pol
1
Lötstiftlänge (l)
3,2 mm
Solder pin dimensions
1.0 x 1.0 mm
Lötstift-Abmessungen=d Toleranz
+0,01 / -0,03 mm
Solder eyelet hole diameter (D)
1,4 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
22,86 mm
L1 in inches
0,9 "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch, plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged
Protection degree
IP10
Can be coded
Yes
Moment dokręcania dla kołnierza śrubowego, min.
0,15 Nm
Åtdragningsmoment för skruvfläns, max.
0,25 Nm
Stickcykler
25

Datos del material

Insulating material
PBT
Colour
negro
Colour chart (similar)
RAL 9011
Insulating material group
IIIa
Comparative Tracking Index (CTI)
≥ 200
Classe d'infiammabilità UL 94
V-0
Contact material
구리 합금
Contact surface
주석 도금
Layer structure of solder connection
1...3 µm Ni / 2...4 µm Sn matt
Layer structure of plug contact
1...3 µm Ni / 2...4 µm Sn matt
Lagertemperatur, min.
-40 °C
Lagertemperatur, max.
70 °C
Driftstemperatur, min.
-50 °C
Driftstemperatur, max
100 °C
Temperaturområde Montage, min.
-25 °C
Temperaturområde Montage, max.
100 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
29 A
Rated current, max. number of poles (Tu=20°C)
26 A
Rated current, min. number of poles (Tu=40°C)
25 A
Rated current, max. number of poles (Tu=40°C)
21 A
Rated voltage for surge voltage class / pollution degree II/2
630 V
Rated voltage for surge voltage class / pollution degree III/2
500 V
Rated voltage for surge voltage class / pollution degree III/3
400 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
6 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
6 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
6 kV
Short-time withstand current resistance
3 x 1s, 180 A
Clearance, min.
6,5 mm
Creepage distance, min.
8,1 mm

Rated data acc. to CSA

Nennspannung (Use group B / CSA)
300 V
Nennspannung (Use group C / CSA)
300 V
Rated voltage (Use group D / CSA)
600 V
Rated current (Use group B / CSA)
20 A
Rated current (Use group C / CSA)
20 A
Rated current (Use group D / CSA)
5 A

Dati di dimensionamento sec. UL 1059

Institut (cURus)
CURUS
Zertifikat-Nr. (cURus)
E60693
Nennspannung (Use group B / UL 1059)
300 V
Rated voltage (Use group C / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
600 V
Rated current (Use group B / UL 1059)
20 A
Rated current (Use group C / UL 1059)
20 A
Nennstrom (Use group D / UL 1059)
5 A
Hinweis zu den Zulassungswerten
Specifikationerna avser maxvärden. För detaljer – se typgodkännandeintyg.
Kriechstrecke, min.
11,2 mm
Luftstrecke, min.
6,5 mm

Embalaje

Packaging
Caja
VPE length
342 mm
VPE Breite
134 mm
VPE Höhe
24 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
