Ominaisuudet
| Version | Current monitoring, 0.5...2.5 A DC, 1, Screw connection |
| Order No. | 8742610000 |
| Type | PAS CMR 0,5...2,5 A DC |
| GTIN (EAN) | 4032248413928 |
| Qty. | 10 items |
| Depth | 95 mm |
| Depth (inches) | 3,74 inch |
| Height | 16 mm |
| Height (inches) | 0,63 inch |
| Width | 15,3 mm |
| Width (inches) | 0,602 inch |
| Length | 92 mm |
| Length (inches) | 3,622 inch |
| Net weight | 69,6 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -20 °C...60 °C |
| Humidity at operating temperature | 0...95 % (no condensation) |
| Humidity | 5-95% relative humidity, Tu = 40°C, without condensation |
| SIL in compliance with IEC 61508 | None |
| RoHS Compliance Status | Compliant |
| REACH SVHC | No SVHC above 0.1 wt% |
| Configuration | none |
| Galvanic isolation |
2-way isolator
between input ⁄ output ⁄ supply |
| Protection degree | IP20 |
| Rail | TS 35 |
| Temperature coefficient | 350 ppm/K |
| EMC standards |
EN 55011
EN 61000-6-1, 2, 3, 4 |
| Galvanic isolation |
2-way isolator
between input ⁄ output ⁄ supply |

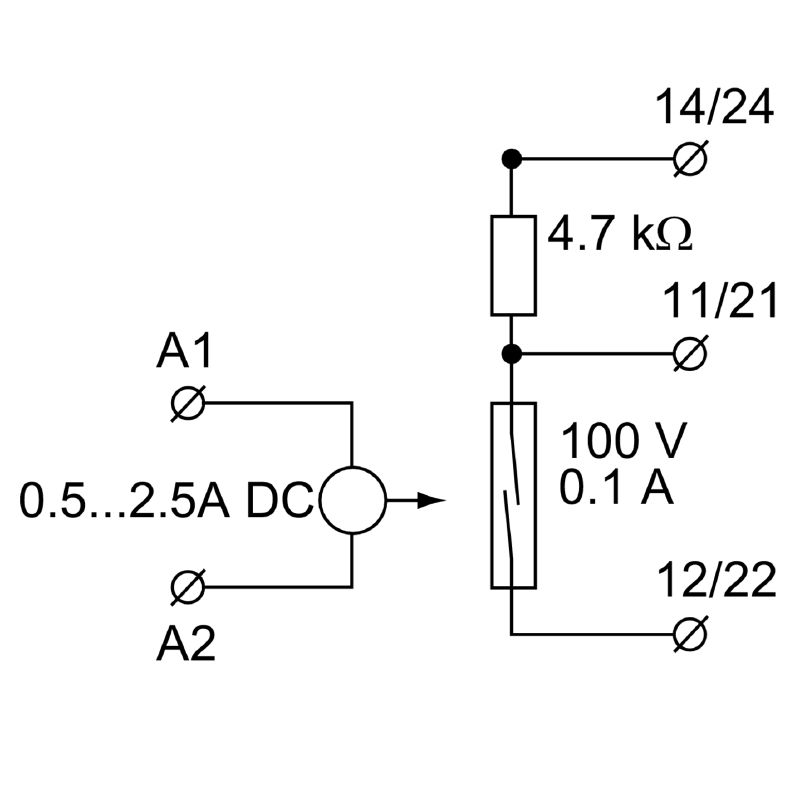

| Impulse withstand voltage | 6 kV |
| Insulation voltage | 4 kVeff / 1 min. |
| Pollution severity | 2 |
| Rated voltage | 300 V |
| Surge voltage category | III |
| Input current | 0.5...2.5 A DC |
| Input resistance, current | <50 mΩ |
| Making current threshold | ≤ 500 mA |
| Max. current | 7.5 A for 10 s |
| Pulse duration | min. 1 ms |
| Secure off | ≤ 50 mA |
| Contact assembly | 1 NO contact |
| Contact material | RH/Rd (Reed contact)* |
| Continuous current | 100 mA |
| Max. switching frequency | 20 Hz |
| Max. switching voltage, AC | 250 V |
| Max. switching voltage, DC | 100 V |
| Number of outputs | 1 |
| Switching current | 100 mA |
| Switching voltage AC, min. | 1 V |
| Switching voltage DC, min. | 1 V |
| Temperature coefficient | 350 ppm/K |
| Type of connection | Screw connection |
| Clamping range, rated connection | 1,5 mm² |
| Clamping range, min. | 2,5 mm² |
| Clamping range, max. | 2,5 mm² |
| Approval/Certificate/Document of Conformity | [Application notes -- Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36003) |
| User Documentation | [Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_58462) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002654 |
| ETIM 7.0 | EC002654 |
| ETIM 8.0 | EC002654 |
| ETIM 9.0 | EC002654 |
| ECLASS 9.0 | 27-21-01-22 |
| ECLASS 9.1 | 27-21-01-22 |
| ECLASS 10.0 | 27-21-01-22 |
| ECLASS 11.0 | 27-21-01-22 |
| ECLASS 12.0 | 27-21-01-22 |
| ECLASS 13.0 | 27-21-01-22 |
| ECLASS 14.0 | 27-21-01-22 |
| Long specification |
Limit-value monitoring of DC currents up to 2.5 A with switching output Pluggable unit on base, for mounting on TS35 DIN rail Input 0.5...2.5 A DC / Reed relay coil Secure isolation EN 50178, 2-way isolation up to 6 kV Type PAS CMR 0.5...2.5 A DC |
| Short specification |
Limit-value monitoring of DC currents up to 2.5 A with switching output |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E141197 |
