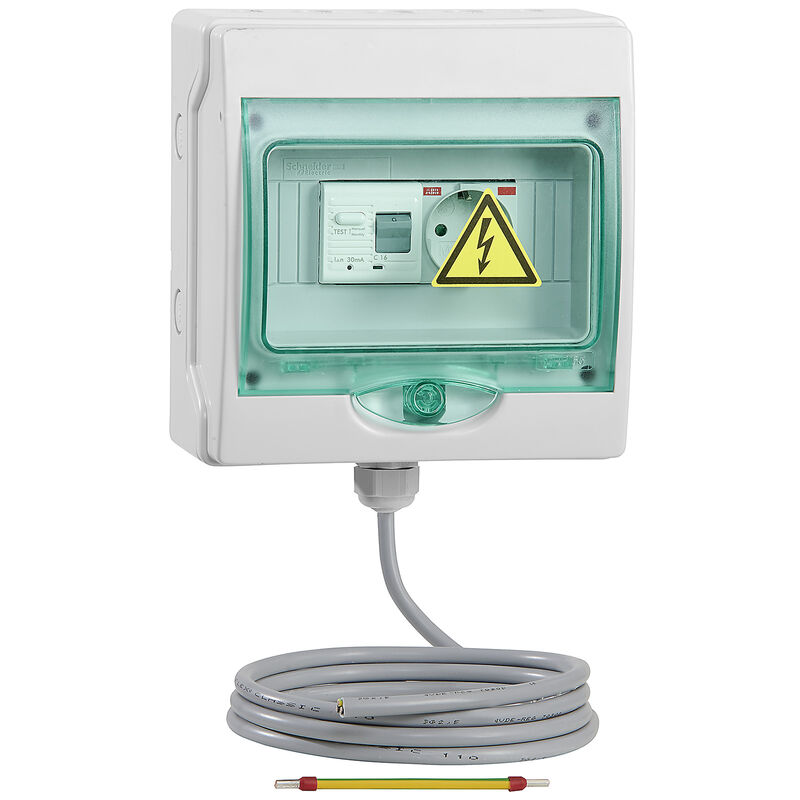

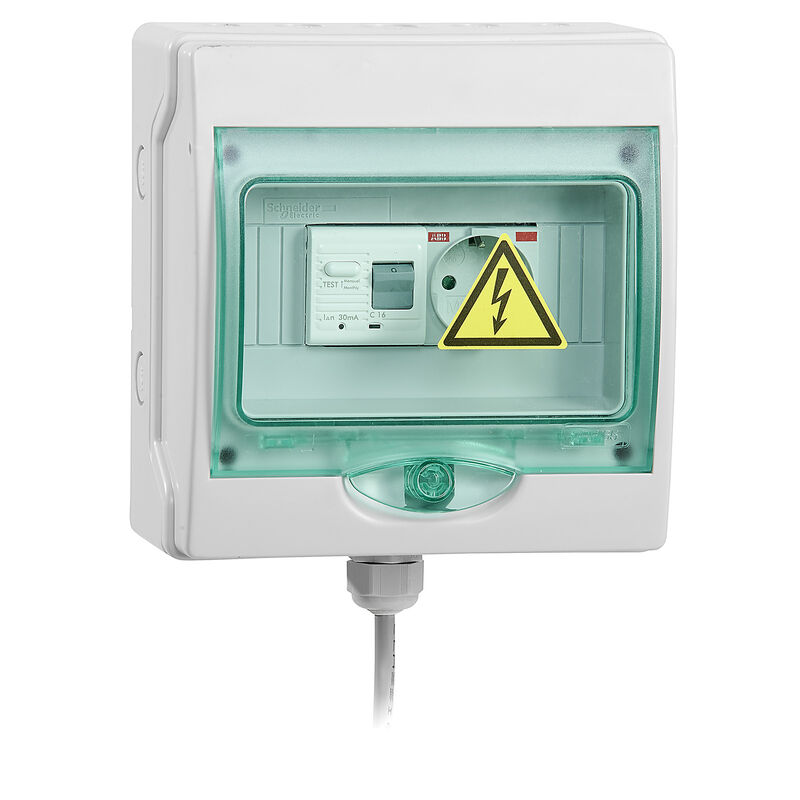

PVC AC NOTSTROMBOX TYPE F CEE 7/3
PVC AC NOTSTROMBOX TYPE F CEE 7/3

PVC AC NOTSTROMBOX TYPE F CEE 7/3

Photovoltaics, Emergency power box, Schuko socket

Product ID 8000108185
Gegevensblad downloaden Product Downloads
Verwante producten 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance AC electrical properties AC inputs AC outputs Enclosure General data Inputs Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Photovoltaics, Emergency power box, Schuko socket
Order No.
8000108185
Type
PVC AC NOTSTROMBOX TYPE F CEE 7/3
GTIN (EAN)
4099986665330
Qty.
1 items

Dimensions and weights

Depth
112 mm
Depth (inches)
4,409 inch
Height
238 mm
Height (inches)
9,37 inch
Width
195 mm
Width (inches)
7,677 inch
Net weight
1.435 g

Temperatures

Ambient temperature
-20 °C…50 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
bdab5698-6a20-4370-8e28-8810d882d01a

AC electrical properties

Rated current
16 A
Rated voltage
230 V AC
RCD
IΔn=30mA

AC inputs

Cable length
1,5 m
Number of AC inputs
1 x single-phase (L, N, PE)

AC outputs

AC output cable connection type
Type F CEE 7/3 socket connector
Schuko
Number of AC outputs
1

Enclosure

Connection type string
Cable with cut end
Impact resistance
IK10 in accordance with IEC 62262
IK08 in accordance with IEC 62208

General data

Protection degree
IP65

Inputs

Number of conduit inlets
1
Number of inputs
1

Classifications

ETIM 8.0
EC003857
ETIM 9.0
EC003857
ETIM 10.0
EC003857
ECLASS 14.0
22-57-02-92
ECLASS 15.0
22-57-02-92
