SAIL-M12BG-12-3.0U

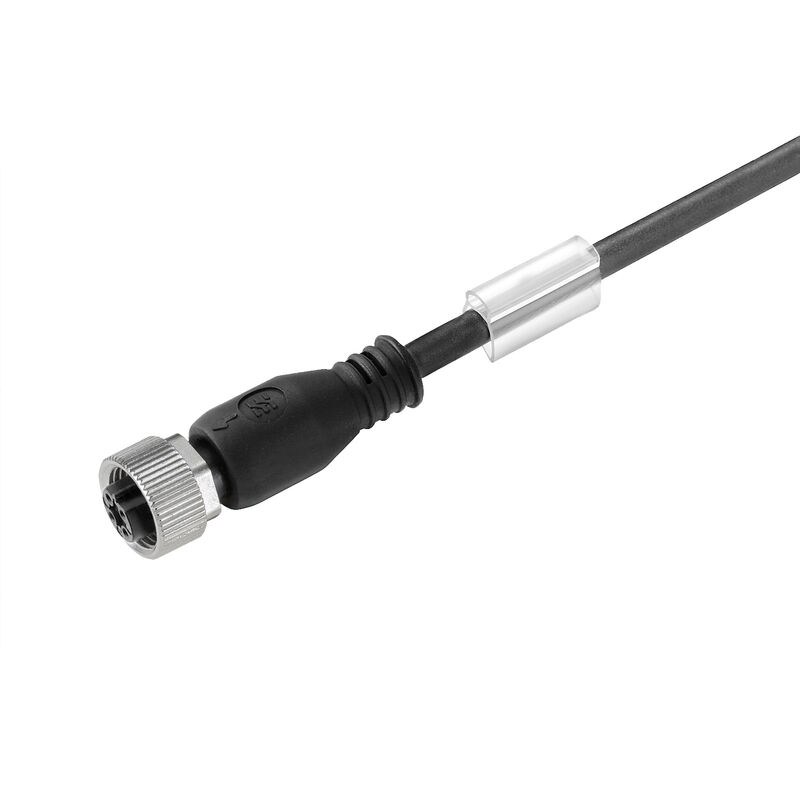

Sensor/actuator line, One end without connector, M12, Number of poles : 12, 3 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Tuotteen tunnus 1879710300

Ominaisuudet

Cable

Product type	Sensor/actuator line
Sheathing colour	black

General ordering data

Version	Sensor/actuator line, One end without connector, M12, Number of poles : 12, 3 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.	1879710300
Type	SAIL-M12BG-12-3.0U
GTIN (EAN)	4050118114720
Qty.	1 items

Dimensions and weights

Net weight

120 g

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1
SCIP	e8d8af70-4c85-4483-bc8c-9bc5b598e2a9

Technical specifications for cable

Acceleration	5 m/s²
Bending cycles	1 mill.
Bending radius, min., moving	10 x cable diameter
Bending radius, min., stationary	5 x cable diameter
Cable length	3 m
Colour coding	yellow pink red / blue black grey / pink green white blue violet brown red grey
Configurable cable length	No
Core cross-section	0,14 mm²
Core in accordance with UL AWM style	10493 (80 °C / 300 V)
Halogen	No
Insulation	PP
Irradiation crosslinked	No
Number of poles	12
Outer cladding in accordance with UL AWM style	20549 (80 °C / 300 V)
Outside diameter	5.6 mm ± 0.2 mm
Resistant to welding beads	No
Sheath material	PUR
Sheathing colour	black
Shielded	No
Speed	5 m/s
Suitable for cable carriers	Yes
Temperature range, moving	-25...80 °C
Temperature range, stationary	-40...80 °C
Torsion resistance	180 °/m
Welding spark resistance	No

General technical data

AF size	13 mm
Coding	A-coded
Connection thread	M12
Contact surface	Gold-plated
Housing main material	PUR
Insulation strength	10⁸ Ω
jumpered	No
LED	No
Plugging cycles	≥ 100
Pollution severity	3
Protection degree	IP67 when screwed in IP65 IP66
Rated current	1,5 A
Rated voltage	30 V
Temperature range of housing	-40 … +85 ° C
Threaded ring material	Brass, nickel-plated
Tightening torque	M12: 0.8 - 1.2 Nm
Version	Female socket, straight

Electrical properties

Insulation strength	10⁸ Ω
Rated current	2 A (8-pole) / 1.5 A (12-pole)
Rated voltage	30 V

General standards

Certificate no. (cULus)	E307231
Connector standard	IEC 61076-2-101

Standards

Connector standard

IEC 61076-2-101

Plug, left

Plug left

M12, A-coded, IP67, female contact, straight, Plastic, unshielded

Plug, right

Plug right

free conductor end

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_97859)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1879710300)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
