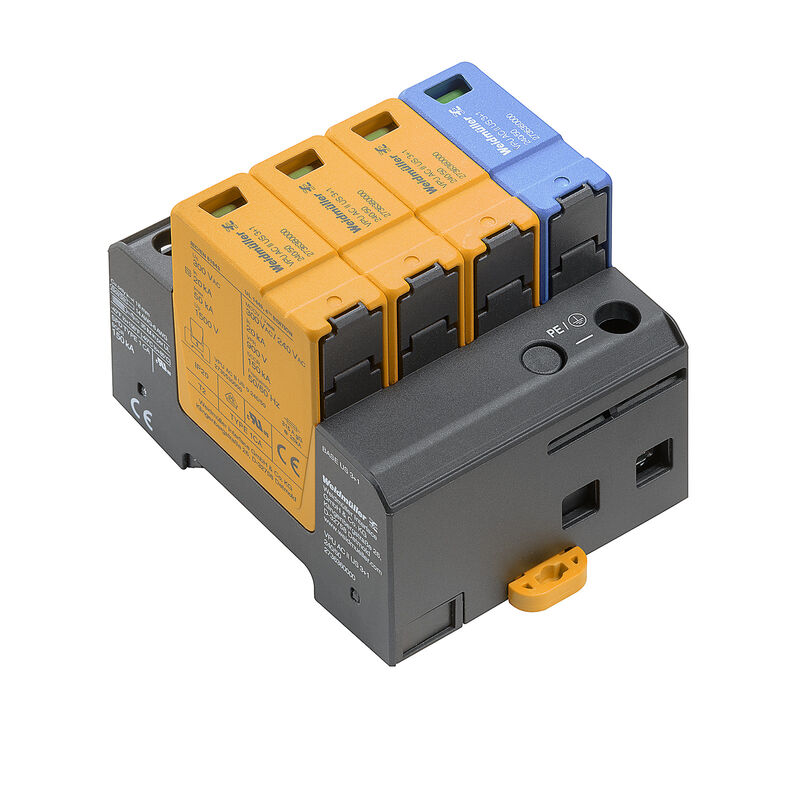

VPU AC II US 3+1 240/50
VPU AC II US 3+1 240/50
Electric symbol
Schematic circuit diagram

VPU AC II US 3+1 240/50

Surge voltage arrester, Low voltage, Surge protection, TN-C-S, TN-S, TT, IT with N, IT without N

Produkt ID 2736360000
Åbn i konfiguratoren
Download datablad Engineering-support Produktdownloads
Tilbehør 4 Reservedele 3 Anvendte produkter 7
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL Connection data, remote alert General data Insulation coordination acc. to EN 50178 Rated data IEC / EN Connection data Electrical data General data Ratings IECEx/ATEX/cUL Guarantee Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/756ea985-024d-4142-85a7-acc2e9775394/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
인증 번호(cULus)
E354261

General ordering data

Versión
Surge voltage arrester, Low voltage, Surge protection, TN-C-S, TN-S, TT, IT with N, IT without N
Código
2736360000
Tipo
VPU AC II US 3+1 240/50
GTIN (EAN)
4050118825794
Qty.
1 Styk

Dimensions and weights

Profundidad
68 mm
Depth (inches)
2,677 inch
Depth including DIN rail
76 mm
Altura
90 mm
Height (inches)
3,543 inch
Anchura
72 mm
Width (inches)
2,835 inch
Medida de fijación, altura
75 mm
Net weight
446 g

Temperatures

Storage temperature
-40 °C...85 °C
Omgivningstemperatur
-40 °C…85 °C
Température de fonctionnement
-40 °C...85 °C
Humidity
5 - 95% rel. humidity

Environmental Product Compliance

RoHS megfelelőségi állapot
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Rated data UL

Ambient temperature (operational), max.
85 °C
Номинальное напряжение, UN
240 V
VPR (N-PE)
1.000 V
MCOV (L-PE)
300 V
MCOV (N-PE)
305 V
SCCR
150 kA
In
20 kA
Category
SPD TYPE 1
Connection cross-section AWG, min.
AWG 14
Connection cross-section AWG, max.
AWG 6
Ambient temperature (operational), min.
-40 °C
MODE
all modes
VPR (L-L)
1.800 V
VPR (L-N)
900 V
VPR (L-PE)
1.000 V
Voltage type
AC
UL Energy Networks
3-phase WYE

Connection data, remote alert

Connection type
PUSH IN

General data

Couleur
orange
black
blue
Diseño
Installation housing; 4TE
Insta IP 20
Mounting rail
TS 35
Optical function display
green = OK; red = arrester is defective - replace
Robocza wysokość nad poziomem morza
≤ 4000 m
Segmento
Power distribution
UL 94 flammability rating
V-0
Versión
Surge protection
Védelmi osztály
IP20 in installed state

Insulation coordination acc. to EN 50178

Pollution severity
2
Surge voltage category
III

Rated data IEC / EN

Discharge current Imax (8/20µs) N-PE
65 kA
Discharge current Imax (8/20µs) wire-PE
50 kA
Discharge current In (8/20µs) N-PE
40 kA
Discharge current In (8/20µs) wire-PE
20 kA
Energy coordination (≤10 m)
Type II
Type III
Follow-on current extinguishing capability Ifi
Follow current need not be taken into account
Frequency range, max.
60 Hz
Frequency range, min.
50 Hz
Fuse protection
No Fuse neccessary ≤315 A gG
250 A gG @50 kA Isccr
315 A gG @25 kA Isccr
Fusible de soporte integrado
No
Leakage current at Un
1 µA
Low voltage network
TN-C-S
TN-S
TT
IT with N
IT without N
Mains voltage
230 V / 400 V
Max. continuous voltage, Uc (AC)
300 V
Max. continuous voltage, Uc (N-PE)
305 V
Number of poles
4
Protection level Up at IN (N-PE)
≤ 1.5 kV
Rated voltage (AC)
240 V
Requirements category acc. to IEC 61643-11
Type II
Requirements class, acc. to EN 61643-11
T2
T3
Response time / fallback time
≤ 25 ns
Schutzpegel Up bei IN (L/N-PE)
≤ 1500 V
Short-circuit current rating ISCCR
50 kA
Signalling contact
No
SPD type
T2
Standards
IEC 61643-11
EN 61643-11
UL 1449
NFPA 79
Temporary surge voltage (over-voltage) - TOV
337 V
Voltage type
AC

Connection data

Длина зачистки изоляции
18 mm
Метод проводного соединения
Screw connection
Вид соединения
Skruvanslutning
Stripping length, rated connection
18 mm
Tightening torque, min.
3 Nm
Tightening torque, max.
4,5 Nm
Clamping range, rated connection
16 mm²
Clamping range, min.
1,5 mm²
Clamping range, max.
35 mm²
Wire connection cross section AWG, min.
AWG 16
Wire connection cross section AWG, max.
AWG 2
Wire cross-section, solid, min.
1,5 mm²
Wire cross-section, solid, max.
35 mm²
Wire connection cross section, finely stranded, min.
1,5 mm²
Wire connection cross section, finely stranded, max.
25 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
2,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
35 mm²
Connection cross-section, stranded, min.
1,5 mm²
Connection cross-section, stranded, max.
35 mm²

Electrical data

Voltage type
AC

General data

Number of poles
4
Protection degree
IP20 in installed state
Colour
orange
black
blue

Ratings IECEx/ATEX/cUL

Сертификат № (cULus)
E354261

Guarantee

Time interval
5 years

Important note

제품 정보

Only applicable to IT power systems where the earth on the distribution transformer is interconnected with the earth on the consumer side (RE=RA in Figure 44.A1 of IEC 60634-4-44:2018).

Classifications

ETIM 8.0
EC000941
ETIM 9.0
EC000941
ETIM 10.0
EC000941
ECLASS 14.0
27-17-12-02
ECLASS 15.0
27-17-12-02
