Özellikler

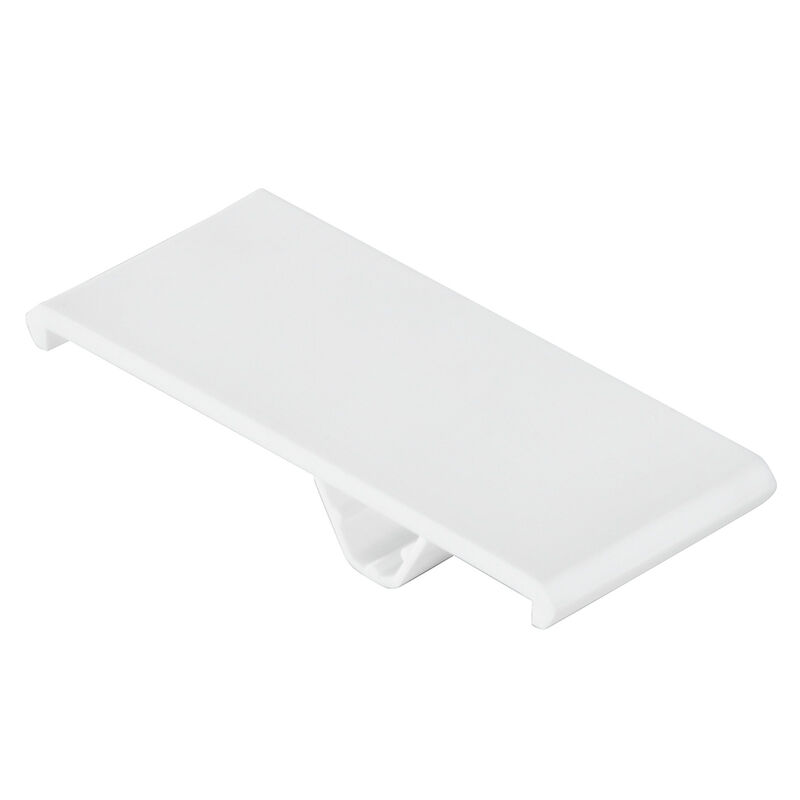

Version | Group markers, Cover, 64 x 27 mm, Pitch in mm (P): 27.00 Weidmueller, white |
Order No. | 1062960000 |
Type | WAD 27 NE WS |
GTIN (EAN) | 4008190148225 |
Qty. | 10 adet |
Height | 64 mm |
Height (inches) | 2,52 inch |
Width | 27 mm |
Width (inches) | 1,063 inch |
Net weight | 4,71 g |
Operating temperature range | -40...100 °C |
RoHS Compliance Status | Compliant without exemption |
REACH SVHC | No SVHC above 0.1 wt% |
Material | Polyamide 66 |
Colour | white |
UL 94 flammability rating | V-2 |
Operating temperature range | -40...100 °C |
Pitch in mm (P) | 27 mm |
Operating temperature range, max. | 100 °C |
Operating temperature range, min. | -40 °C |
Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_60103) |
Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1062960000) |
CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1062960000) |
Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
ETIM 6.0 | EC000761 |
ETIM 7.0 | EC000761 |
ETIM 8.0 | EC000761 |
ETIM 9.0 | EC000761 |
ECLASS 9.0 | 27-14-11-37 |
ECLASS 9.1 | 27-14-11-37 |
ECLASS 10.0 | 27-14-11-37 |
ECLASS 11.0 | 27-28-11-01 |
ECLASS 12.0 | 27-28-11-01 |
ECLASS 13.0 | 27-28-11-01 |
ECLASS 14.0 | 27-28-11-01 |
ROHS | Conform |
aksesuarıdır
-
Ürün No.:0383530000Ambalaj birimi:50 adet
End bracket, grey, TS 35, V-0, Wemid, Width: 9 mm, 120 °C
-
Ürün No.:0258660000Ambalaj birimi:20 adet
End bracket, beige, TS 35, V-2, Wemid, Width: 16.5 mm, 100 °C
-
Ürün No.:1024550000Ambalaj birimi:10 adet
Feed-through terminal block, Screw connection, Light green, 120 mm², 269 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C
-
Ürün No.:1024500000Ambalaj birimi:10 adet
Feed-through terminal block, Screw connection, dark beige, 120 mm², 269 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C
-
Ürün No.:1024580000Ambalaj birimi:10 adet
Feed-through terminal block, Screw connection, blue, 120 mm², 269 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C
-
Ürün No.:1067600000Ambalaj birimi:50 adet
End bracket, dark beige, TS 32, V-2, PA 66 GF 30, Width: 12 mm, 100 °C
-
Ürün No.:1024680000Ambalaj birimi:10 adet
Feed-through terminal block, Screw connection, blue, 95 mm², 232 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C
-
Ürün No.:1024600000Ambalaj birimi:10 adet
Feed-through terminal block, Screw connection, dark beige, 95 mm², 232 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C
-
Ürün No.:1024650000Ambalaj birimi:10 adet
Feed-through terminal block, Screw connection, Light green, 95 mm², 232 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C
